Vacuum generator
VN-10-L-T3-PQ2-VQ2-RO1-B
532641
GTIN 4052568165321
Vendor Festo
- Nominal width of Laval nozzle
- 0.95 mm
- Max. suction rate with respect to atmosphere
- 40.5 l/min
Regular price
$274.68
Unit price
VN-10-L-T3-PQ2-VQ2-RO1-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-10-L-T3-PQ2-VQ2-RO1-B
Regular price
$274.68
Unit price
VN-10-L-T3-PQ2-VQ2-RO1-B is backordered and will ship as soon as it is back in stock.

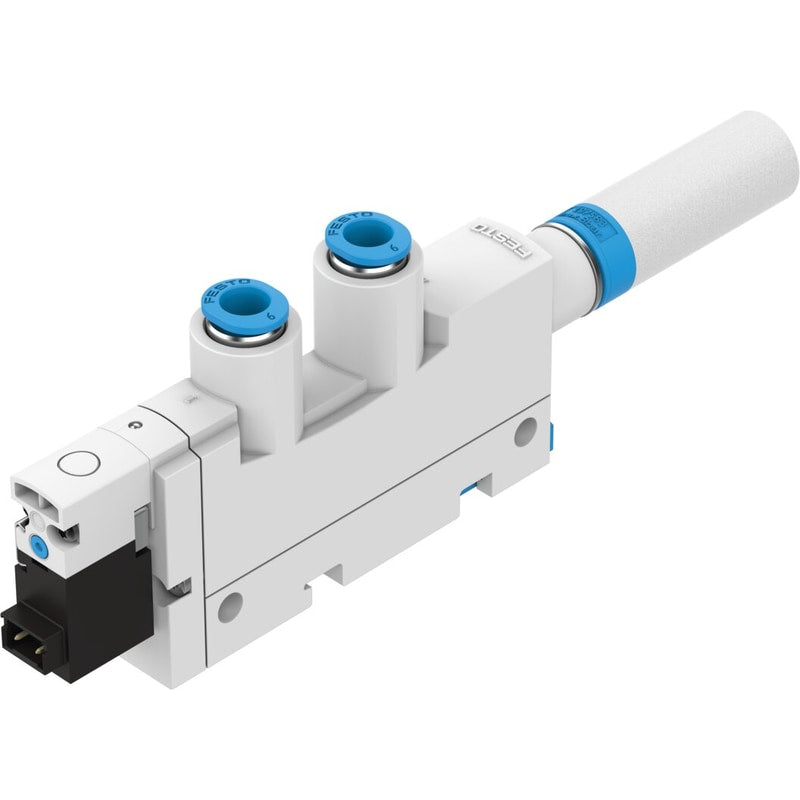

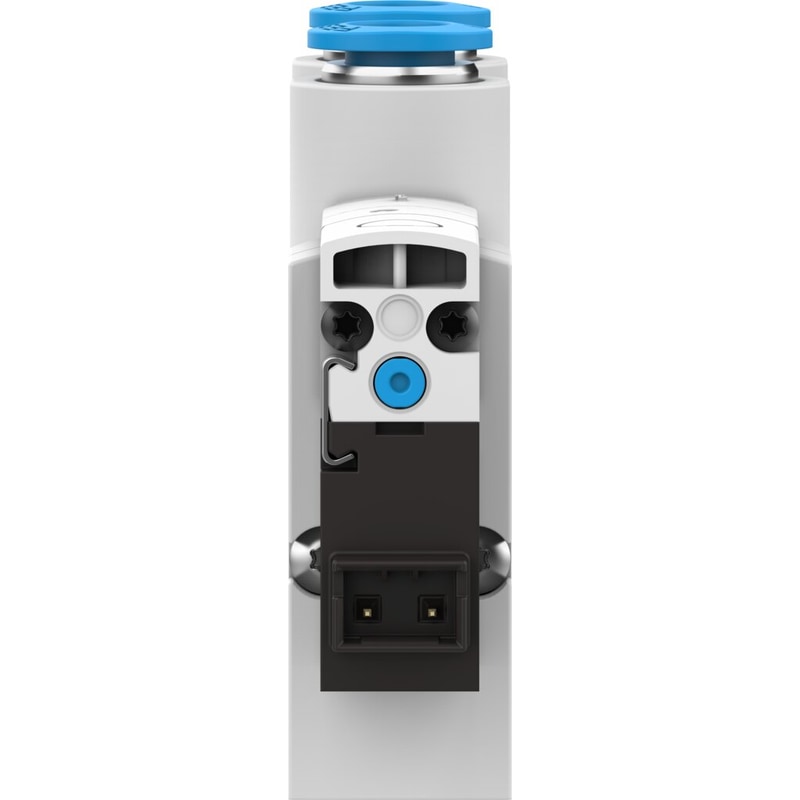

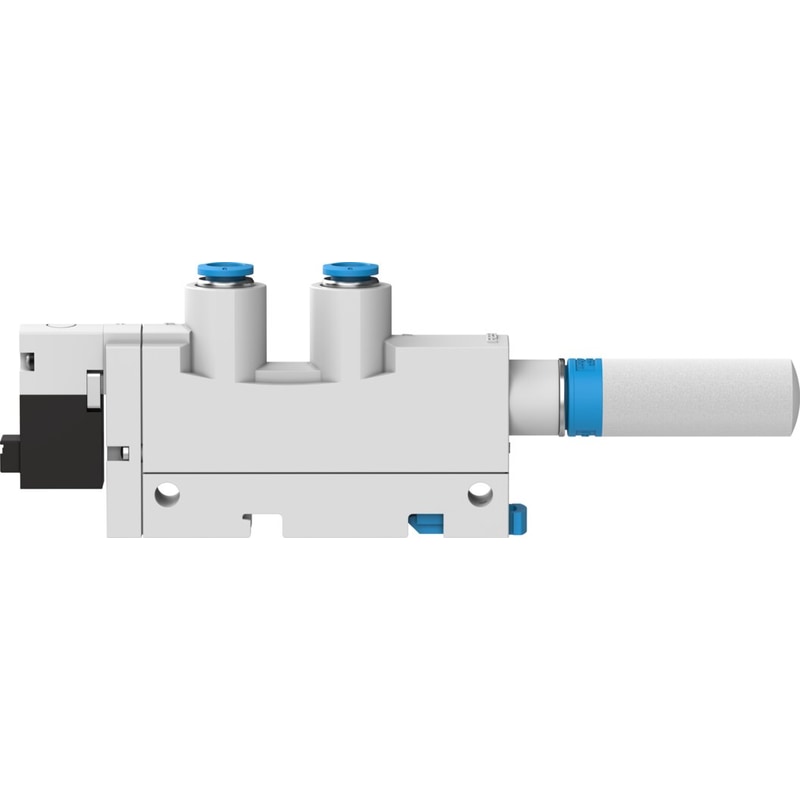

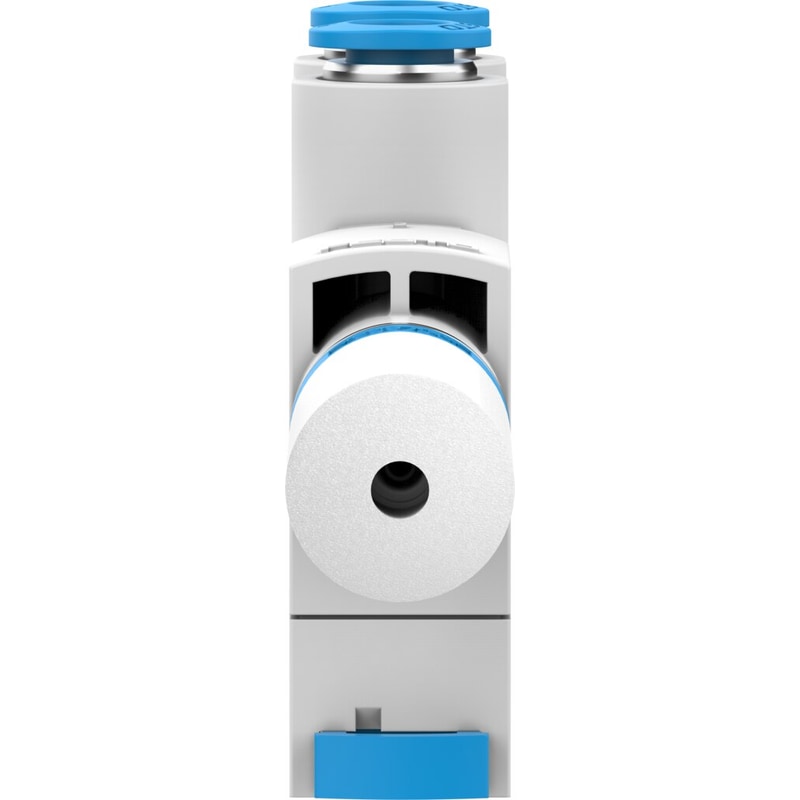

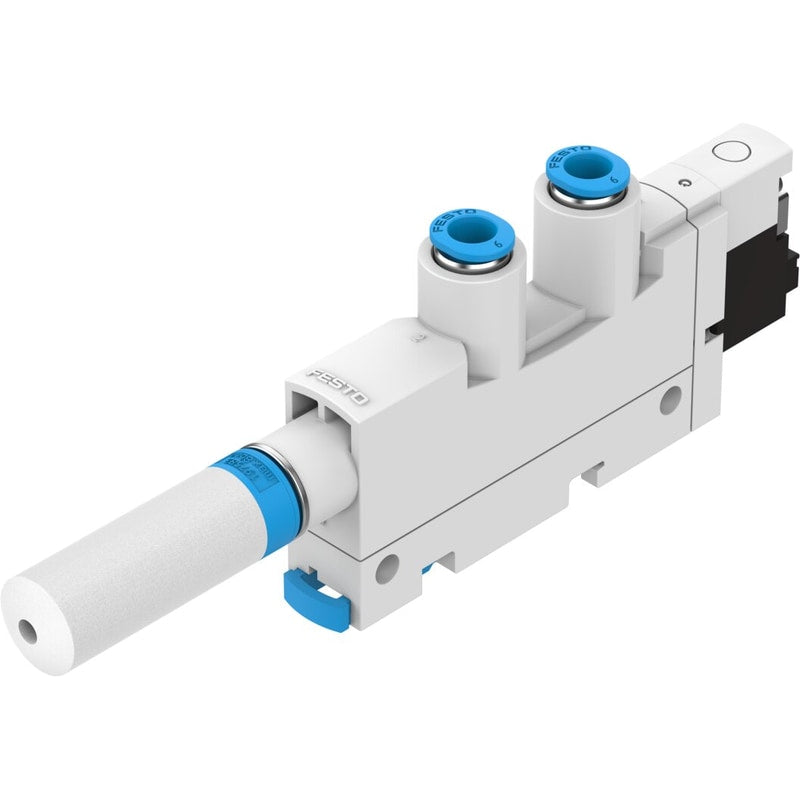

vacuum generator VN-10-L-T3-PQ2-VQ2-RO1-B With ejector pulse and built-in solenoid valve. Standard, high suction rate, width 14 mm, T shape with plug connector and open silencer. Nominal size, Laval nozzle=0,95 mm, Grid dimension=14 mm, Design, silencer=open, Assembly position=Any, Ejector characteristic=(* Standard, * High suction volume)
| Nominal size, Laval nozzle | 0.95 mm |
|---|---|
| Grid dimension | 14 mm |
| Design, silencer | open |
| Assembly position | Any |
| Ejector characteristic | StandardHigh suction volume |
| Manual override | Pushing |
| Integrated function | Ejector pulse valve, pneumaticElectrical on-off valveOpen silencer |
| Design structure | T-shaped |
| Valve function | 43498 |
| Operating pressure for max. suction rate | 5 bar |
| Operating pressure | 2 ... 8 bar |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 40.5 l/min |
