Vacuum generator
VN-05-N-I3-PQ2-VQ2-A
532625
GTIN 4052568086176
Vendor Festo
- Nominal width of Laval nozzle
- 0.45 mm
- Max. suction rate with respect to atmosphere
- 13.3 l/min
Regular price
$111.59
Unit price
VN-05-N-I3-PQ2-VQ2-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-05-N-I3-PQ2-VQ2-A
Regular price
$111.59
Unit price
VN-05-N-I3-PQ2-VQ2-A is backordered and will ship as soon as it is back in stock.

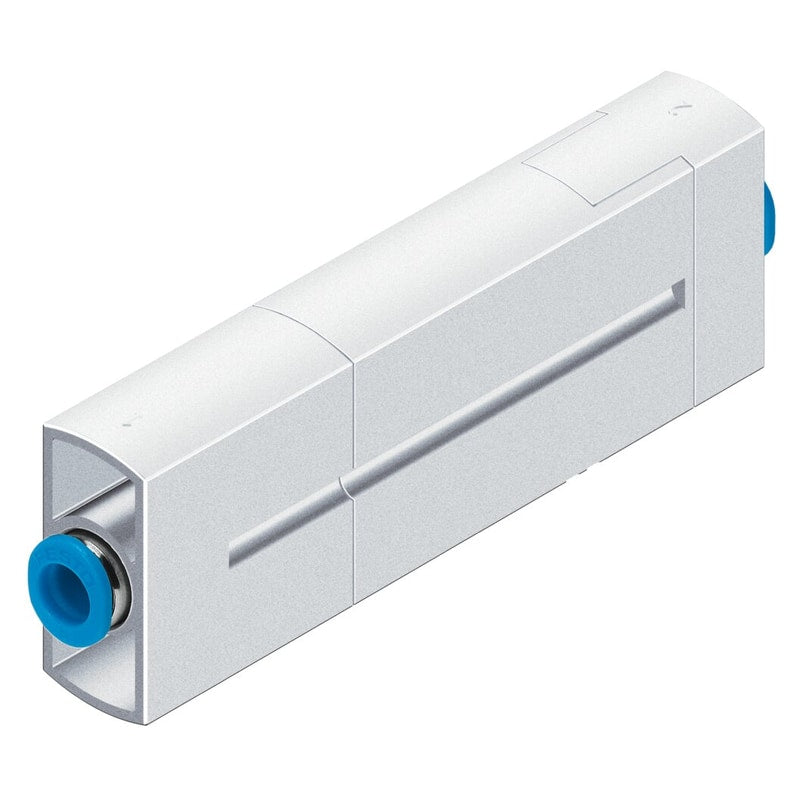

vacuum generator VN-05-N-I3-PQ2-VQ2-A With ejector pulse. In-line, high vacuum, width 14 mm. With plug connector. Nominal size, Laval nozzle=0,45 mm, Grid dimension=14,5 mm, Assembly position=Any, Ejector characteristic=(* Inline, * High suction volume), Integrated function=Ejector pulse valve, pneumatic
| Nominal size, Laval nozzle | 0.45 mm |
|---|---|
| Grid dimension | 14.5 mm |
| Assembly position | Any |
| Ejector characteristic | InlineHigh suction volume |
| Integrated function | Ejector pulse valve, pneumatic |
| Design structure | Straight design |
| Operating pressure for max. suction rate | 5 bar |
| Operating pressure | 1 ... 8 bar |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 13.3 l/min |
| Air supply time at nominal operating pressure | 2.24 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
