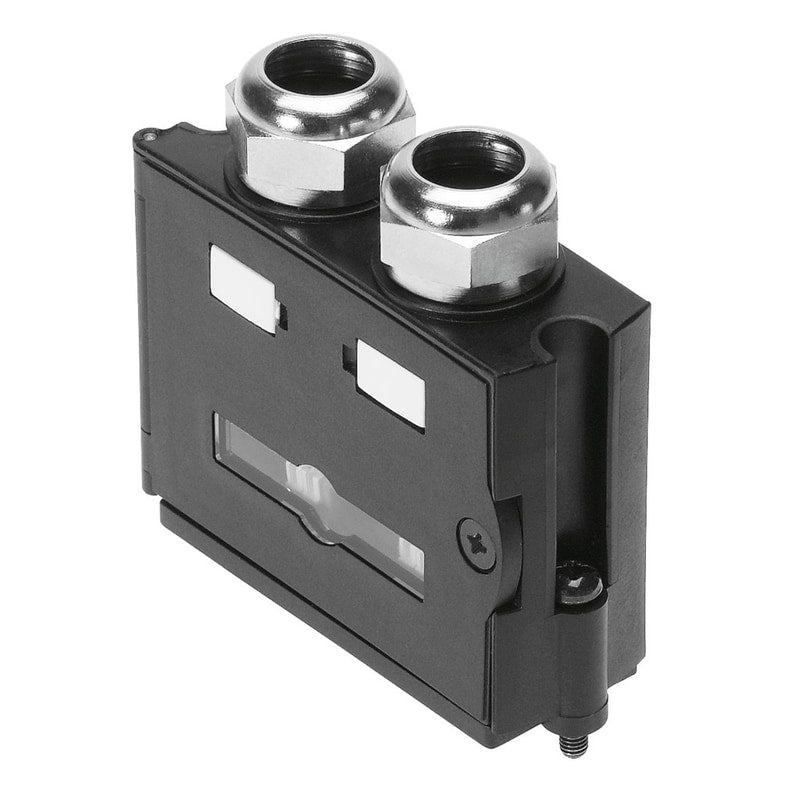

Plug
FBS-SUB-9-GS-2X4POL-B
532220
GTIN 4052568086077
Vendor Festo
- Degree of protection
- IP65 - IP67 - In mounted state - as per IEC 60529
Regular price
$144.18
Unit price
FBS-SUB-9-GS-2X4POL-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FBS-SUB-9-GS-2X4POL-B
Regular price
$144.18
Unit price
FBS-SUB-9-GS-2X4POL-B is backordered and will ship as soon as it is back in stock.
| Width | 20 mm |
|---|---|
| Height | 62 mm |
| Length | 61 mm |
| Type code | FBS |
| Protocol | CC-LINK® |
| Product weight | 60 g |
| Fieldbus interface | 2x 4 spring-loaded terminals |
| Note on fieldbus interface | BUS In - BUS Out looped through |
| Approved cable diameter | 5 mm ... 10 mm |
| Degree of protection | as per IEC 60529IP67IP65In mounted state |
| Ambient temperature | 0 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| Note on materials | RoHS-compliant |
| Housing material | PA-reinforced |
| Material of union nut | Brass |
| Material of screws | Steel |
| Seals material | NBR |
| Relative air humidity | 95 %Non-condensing |
