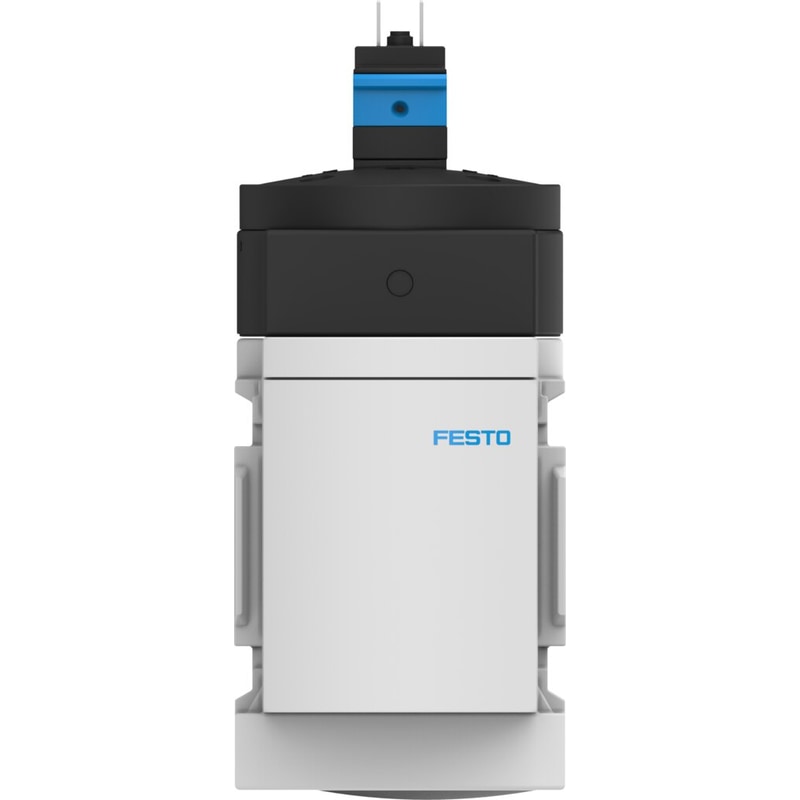

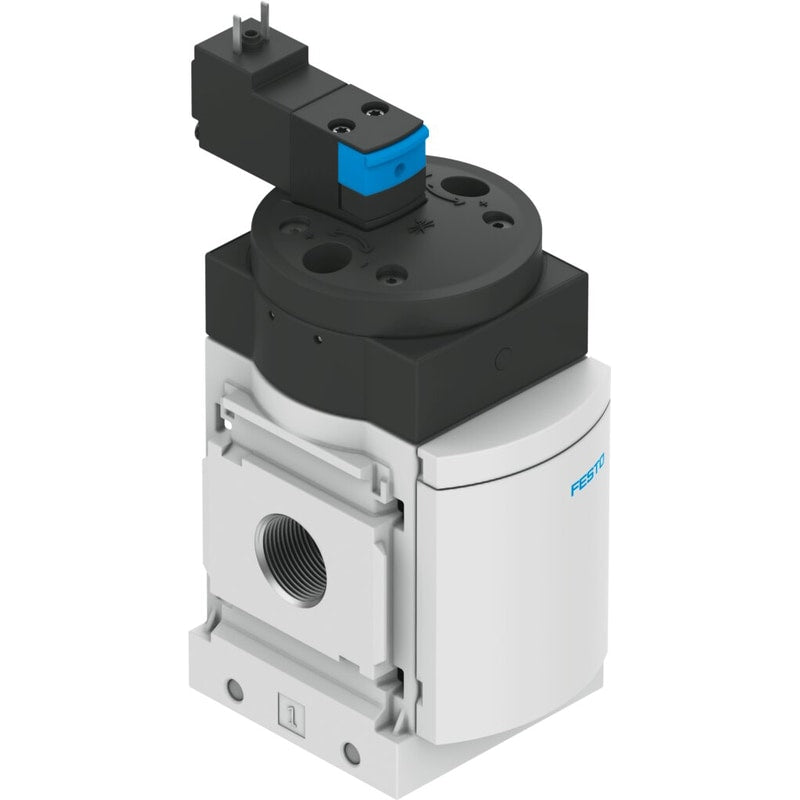

Soft-start valve MS6N-DE-1/4-V230
532047
Vendor Festo
Regular price
$195.59
Unit price
Soft-start valve MS6N-DE-1/4-V230 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
Soft-start valve MS6N-DE-1/4-V230
Regular price
$195.59
Unit price
Soft-start valve MS6N-DE-1/4-V230 is backordered and will ship as soon as it is back in stock.

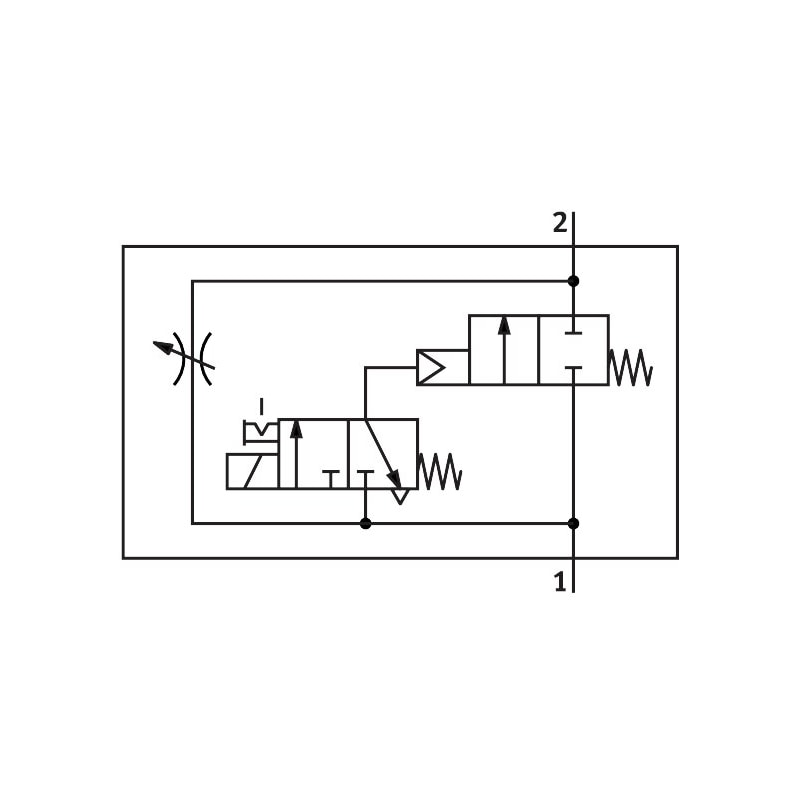

soft-start valve MS6N-DE-1/4-V230 Electrical, for gradual pressure build-up, direction of flow: from left to right. Type of actuation=electrical, Assembly position=Any, Manual override=(* detenting, * Pushing), Design structure=Piston seat, Type of reset=mechanical spring
| Type of actuation | electrical |
|---|---|
| Assembly position | Any |
| Manual override | detentingPushing |
| Design structure | Piston seat |
| Type of reset | mechanical spring |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | non reversible |
| Valve function | 43498 |
| Switching position indicator | with accessories |
| Operating pressure | 4 ... 18 bar |
| b value | 0.54 |
| C value | 11.22 l/sbar |
