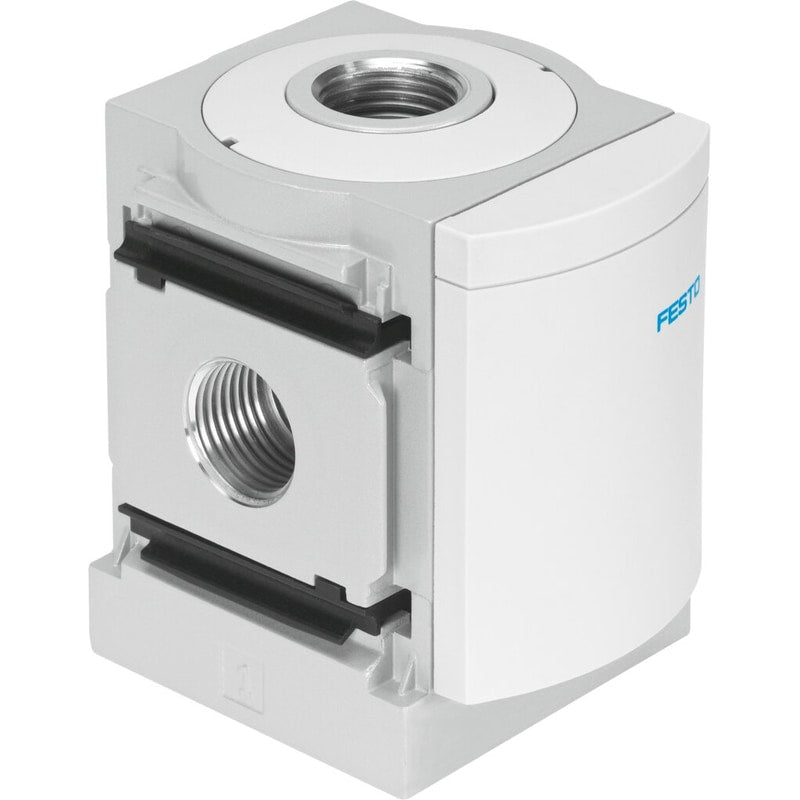

Branching module
MS6N-FRM-3/8
531967
GTIN 4052568338732
Vendor Festo
- Pneumatic connection 1
- 3/8 NPT
- Standard nominal flow rate in main flow direction 1 -> 2
- 8350 l/min
- Operating pressure
- 0 bar - 20 bar
Regular price
$25.39
Unit price
Branching module MS6N-FRM-3/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6N-FRM-3/8
Regular price
$25.39
Unit price
Branching module MS6N-FRM-3/8 is backordered and will ship as soon as it is back in stock.
branching module MS6N-FRM-3/8 Direction of flow: from left to right. Assembly position=Any, Design structure=Branching module, Operating pressure=0 - 20 bar, Standard nominal flow rate in main flow direction 1->2=8350 l/min, Standard nominal flow rate outlet at top=4700 l/min
| Assembly position | Any |
|---|---|
| Design structure | Branching module |
| Operating pressure | 0 ... 20 bar |
| Standard nominal flow rate in main flow direction 1->2 | 8,350 l/min |
| Standard nominal flow rate outlet at top | 4,700 l/min |
| Standard nominal flow rate outlet at bottom | 4,800 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 500 g |
