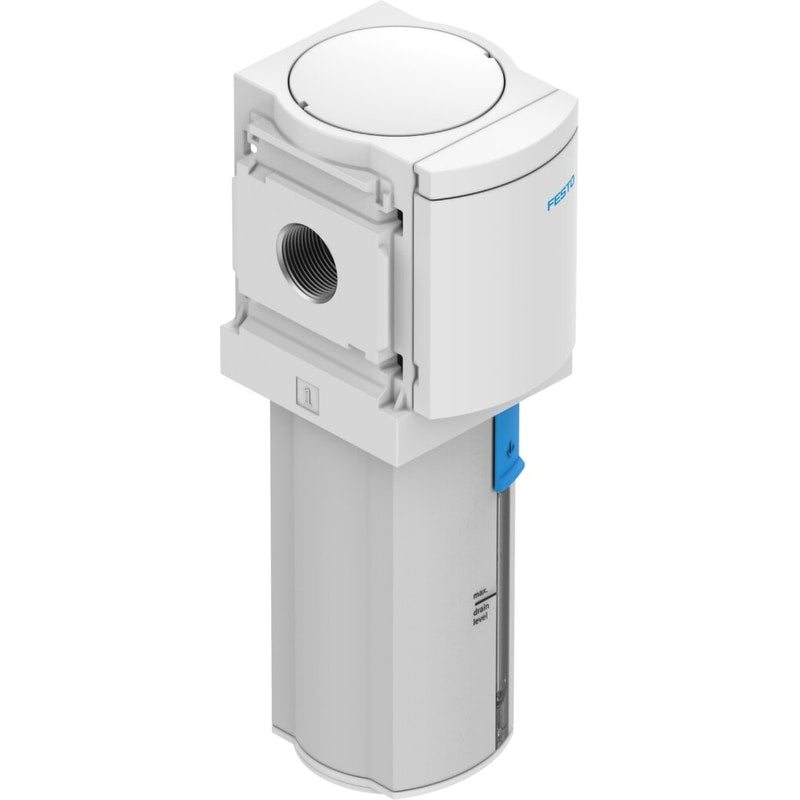

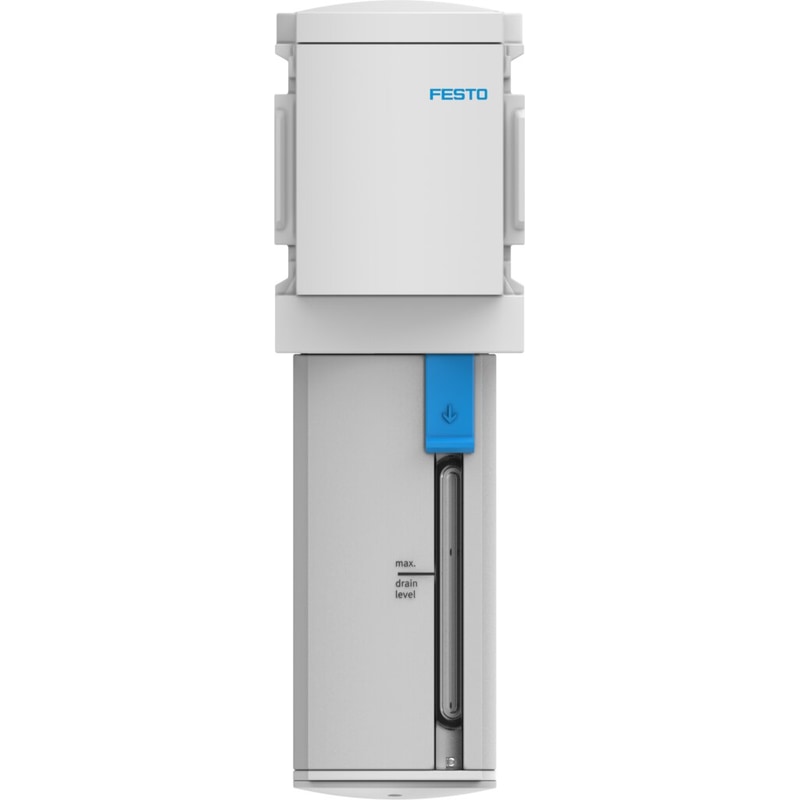

Active carbon filter
MS6N-LFX-1/2-U
531927
GTIN 4052568338442
Vendor Festo
- Pneumatic connection 1
- G1/2
- Max. standard flow rate for air quality class
- 900 l/min
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 0 bar - 20 bar
- Structural design
- Active carbon filter
Regular price
$125.66
Unit price
MS6N-LFX-1/2-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6N-LFX-1/2-U
Regular price
$125.66
Unit price
MS6N-LFX-1/2-U is backordered and will ship as soon as it is back in stock.
activated carbon filter MS6N-LFX-1/2-U Metal bowl, direction of flow: from left to right. Size=6, Series=MS, Assembly position=Vertical +/- 5°, Design structure=Active carbon filter, Bowl guard=integrated as metal shell
| Size | 6 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Design structure | Active carbon filter |
| Bowl guard | integrated as metal shell |
| Operating pressure | 0 ... 20 bar |
| Max. standard flow rate for air quality class | 900 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [1:4:2]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [1:4:1] |
| Medium temperature | 5 ... 30 °C |
| Residual oil content | 0.003 mg/m3 |
