Micro filter
MS6N-LFM-1/2-ARM
531861
GTIN 4052568337933
Vendor Festo
- Pneumatic connection 1
- 1/2 NPT
- Operating pressure
- 0 bar - 20 bar
- Ambient temperature
- -10 °C - 60 °C
- Grade of filtration
- 0.01 µm
Regular price
$98.61
Unit price
MS6N-LFM-1/2-ARM is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6N-LFM-1/2-ARM
Regular price
$98.61
Unit price
MS6N-LFM-1/2-ARM is backordered and will ship as soon as it is back in stock.

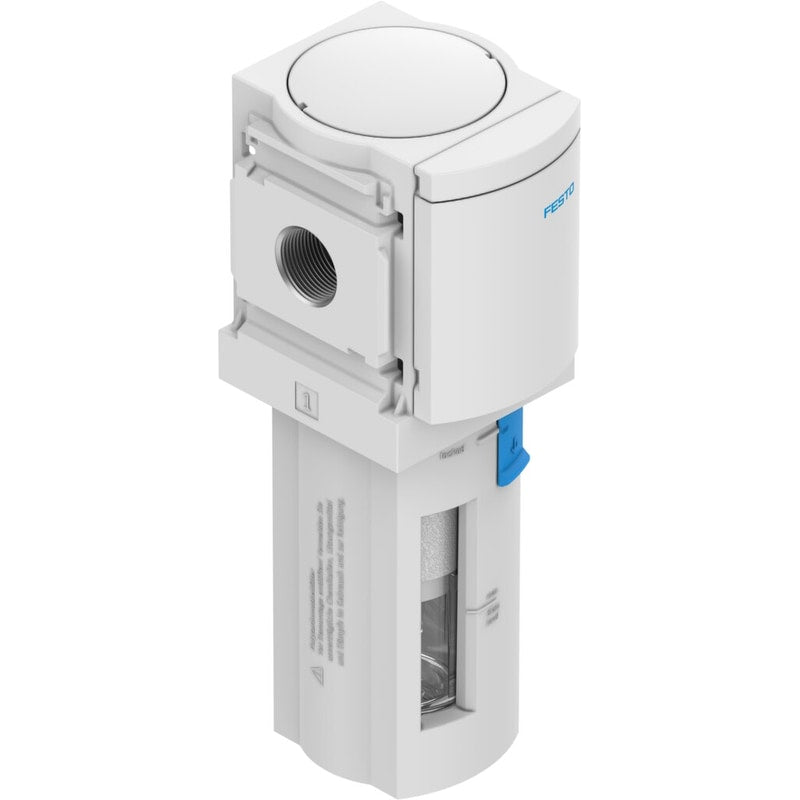

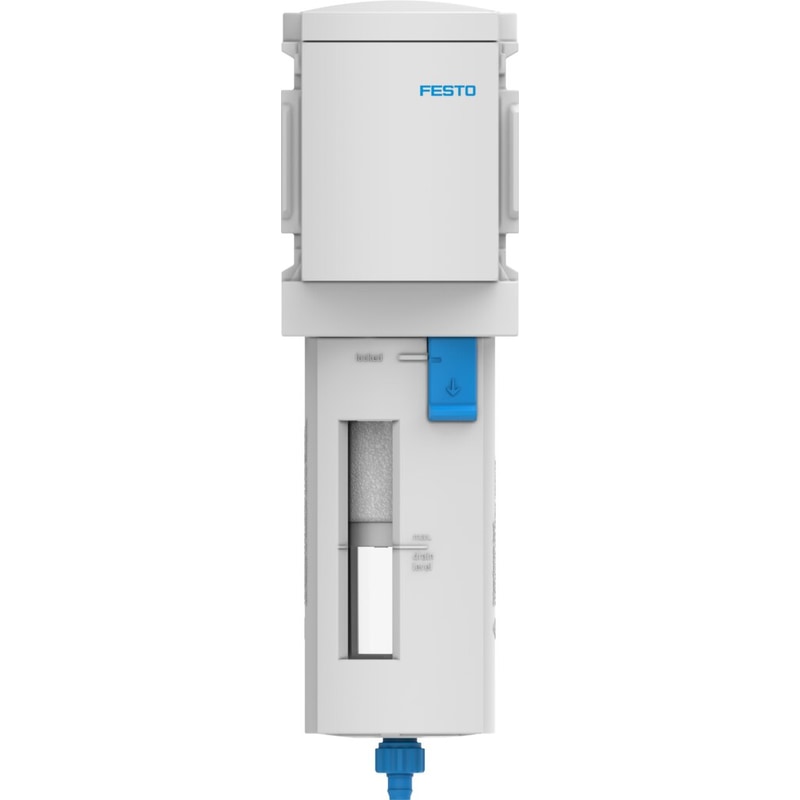

micro filter MS6N-LFM-1/2-ARM 0.01 µm filter, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Series=MS, Size=6, Design structure=Fibre filter, Grade of filtration=0,01 µm, Condensate drain=manual rotary
| Series | MS |
|---|---|
| Size | 6 |
| Design structure | Fibre filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | manual rotary |
| Operating pressure | 0 ... 20 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:8:4]Inert gases |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [1:7:2] |
| Max. standard flow rate for air quality class | 900 l/min |
| Min. standard flow rate for air quality class | 135 l/min |
| Filter efficiency | 0.999999 |
| Max. condensate volume | 38 cm3 |
| Bowl guard | Plastic guard |
