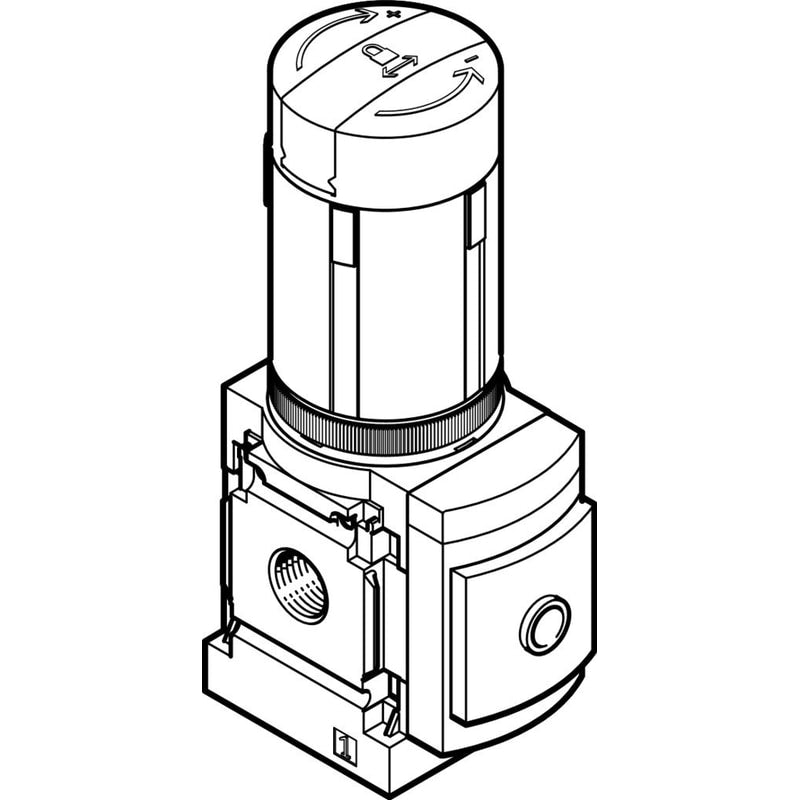

Pressure regulator
MS4N-LRB-1/4-D5-A8-AS
531792
GTIN 4052568337360
Vendor Festo
- Pneumatic connection 1
- 1/4 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 1900 l/min
- Pressure regulation range
- 0.3 bar - 4 bar
- Max. pressure hysteresis
- 0.25 bar
Regular price
$44.25
Unit price
Pressure regulator MS4N-LRB-1/4-D5-A8-AS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS4N-LRB-1/4-D5-A8-AS
Regular price
$44.25
Unit price
Pressure regulator MS4N-LRB-1/4-D5-A8-AS is backordered and will ship as soon as it is back in stock.
pressure regulator MS4N-LRB-1/4-D5-A8-AS For manifold assembly, maximum output pressure 4 bar, with adapter G1/8 for pressure gauge acc. to EN 837, port P2 on reverse side. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=(* directly-controlled diaphragm regulator, * with looped-through compressed air supply)
| product type | Manifold Pressure Regulator |
|---|---|
| Port Size | 1/4" Port Connection |
| pressure range | 0.3-4bar (4.3-58PSI) |
| option | Lockable |
