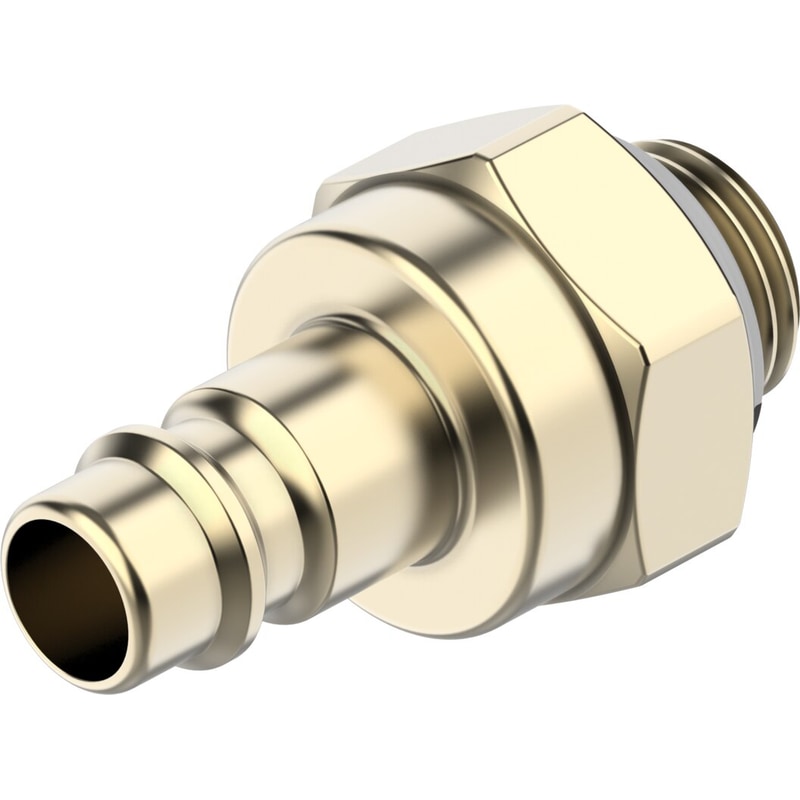

Quick coupling plug
KS4-1/4-A-R
531677
GTIN 4052568047887
Vendor Festo
- Pneumatic connection 1
- External thread G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 765 l/min
Regular price
$15.12
Unit price
KS4-1/4-A-R is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KS4-1/4-A-R
Regular price
$15.12
Unit price
KS4-1/4-A-R is backordered and will ship as soon as it is back in stock.
quick coupling plug KS4-1/4-A-R With non-return valve for self-closing quick coupling connectors on both sides Nominal size=8 mm, Operating pressure complete temperature range=-0,95 - 12 bar, Standard nominal flow rate=765 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | Coupling Plug |
|---|---|
| Nominal size | 8 mm |
| Operating pressure complete temperature range | '-0.95 ... 12 bar |
| Standard nominal flow rate | 765 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Nominal tightening torque | 9.5 Nm |
| Tolerance for nominal tightening torque | ± 15 % |
| Product weight | 46 g |
| connection 1 | Male thread G1/4 |
| Materials note | Conforms to RoHS |
