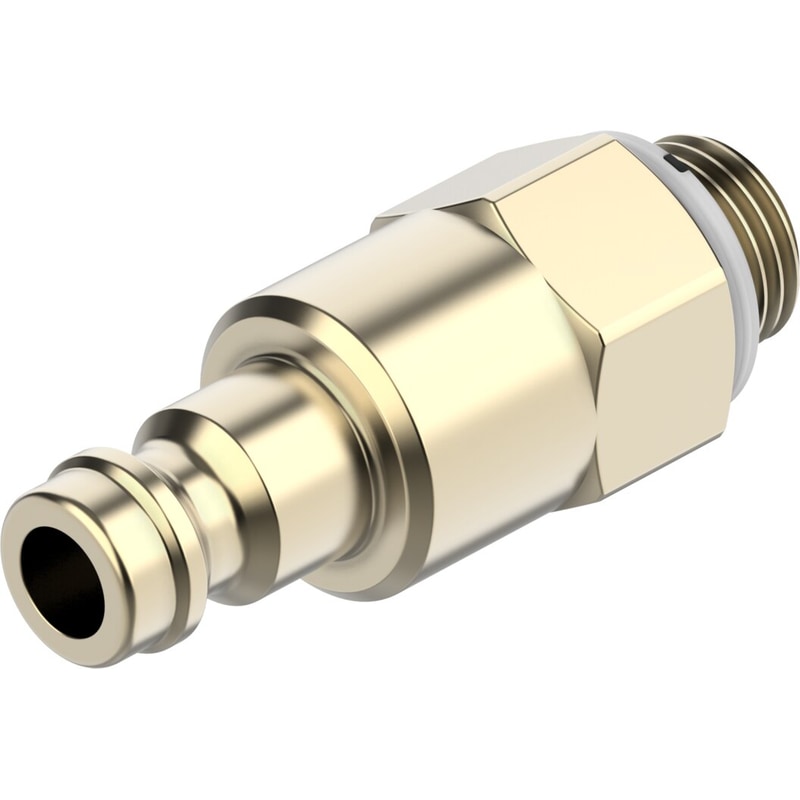

Quick coupling plug
KS3-1/8-A-R
531667
GTIN 4052568047825
Vendor Festo
- Pneumatic connection 1
- External thread G1/8
Regular price
$15.12
Unit price
KS3-1/8-A-R is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KS3-1/8-A-R
Regular price
$15.12
Unit price
KS3-1/8-A-R is backordered and will ship as soon as it is back in stock.
quick coupling plug KS3-1/8-A-R With non-return valve for self-closing quick coupling connectors on both sides Nominal size=4,2 mm, Operating pressure complete temperature range=-0,95 - 12 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible, Corrosion resistance classification CRC=1 - Low corrosion stress
| Fitting Type | Coupling Plug |
|---|---|
| Nominal size | 4.2 mm |
| Operating pressure complete temperature range | '-0.95 ... 12 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Nominal tightening torque | 5 Nm |
| Tolerance for nominal tightening torque | ± 15 % |
| Product weight | 32 g |
| connection 1 | Male thread G1/8 |
| Materials note | Conforms to RoHS |
