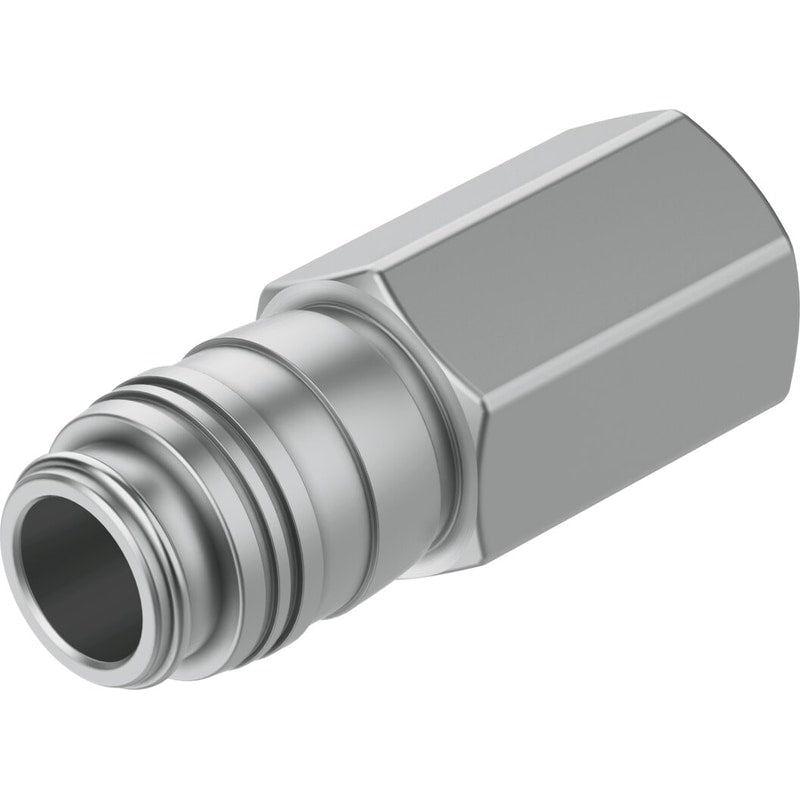

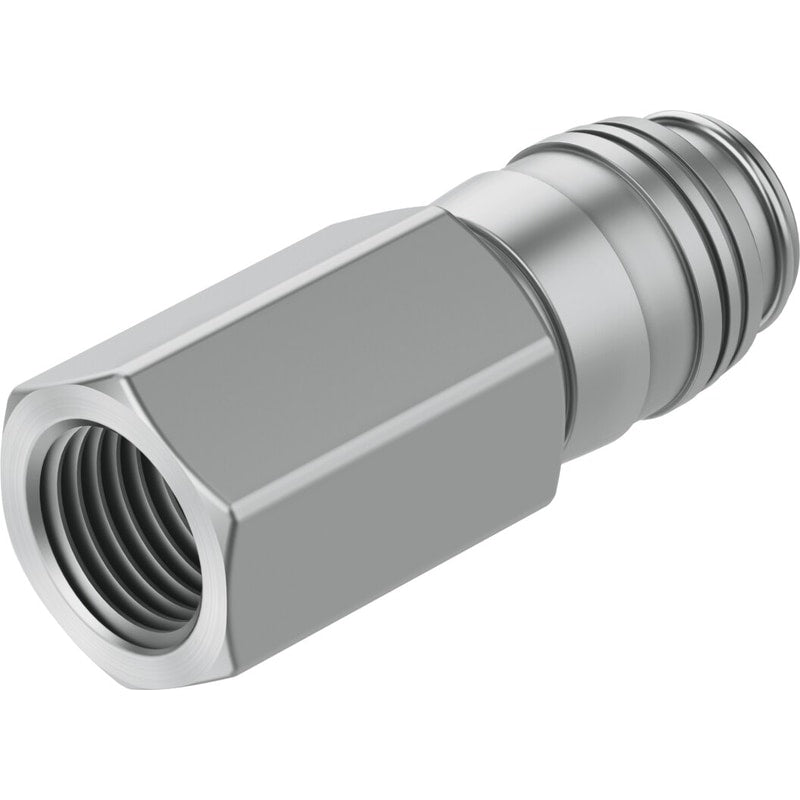

Quick coupling socket
KD3-1/4-I
531628
GTIN 4052568047559
Vendor Festo
- Pneumatic connection 1
- Internal thread G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 185 l/min - 666 l/min
Regular price
$23.23
Unit price
KD3-1/4-I is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KD3-1/4-I
Regular price
$23.23
Unit price
KD3-1/4-I is backordered and will ship as soon as it is back in stock.
quick coupling socket KD3-1/4-I Self-closing Nominal size=5 mm, Operating pressure complete temperature range=-0,95 - 12 bar, Standard nominal flow rate=666 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | Coupling Socket |
|---|---|
| Nominal size | 5 mm |
| Operating pressure complete temperature range | '-0.95 ... 12 bar |
| Standard nominal flow rate | 666 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Nominal tightening torque | 9.5 Nm |
| Tolerance for nominal tightening torque | ± 15 % |
| Product weight | 47 g |
| connection 1 | Female thread 1/4 |
| Materials note | Conforms to RoHS |
