Filter
MS6N-LF-3/8-CUM
531539
GTIN 4052568336431
Vendor Festo
- Pneumatic connection 1
- 3/8 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 3000 l/min
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 0 bar - 20 bar
- Grade of filtration
- 5 µm
Regular price
$76.97
Unit price
MS6N-LF-3/8-CUM is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6N-LF-3/8-CUM
Regular price
$76.97
Unit price
MS6N-LF-3/8-CUM is backordered and will ship as soon as it is back in stock.

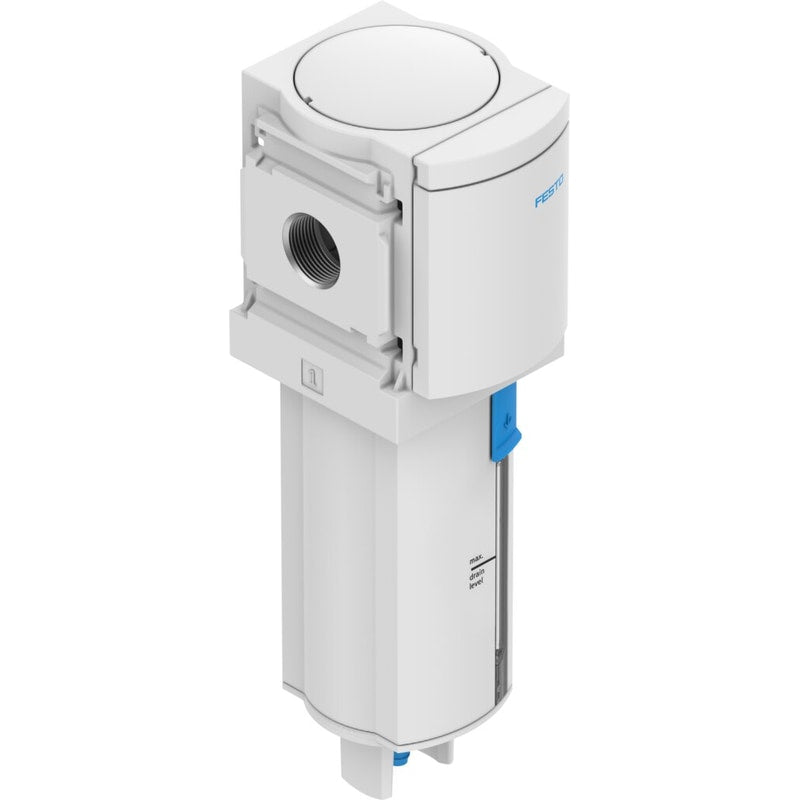

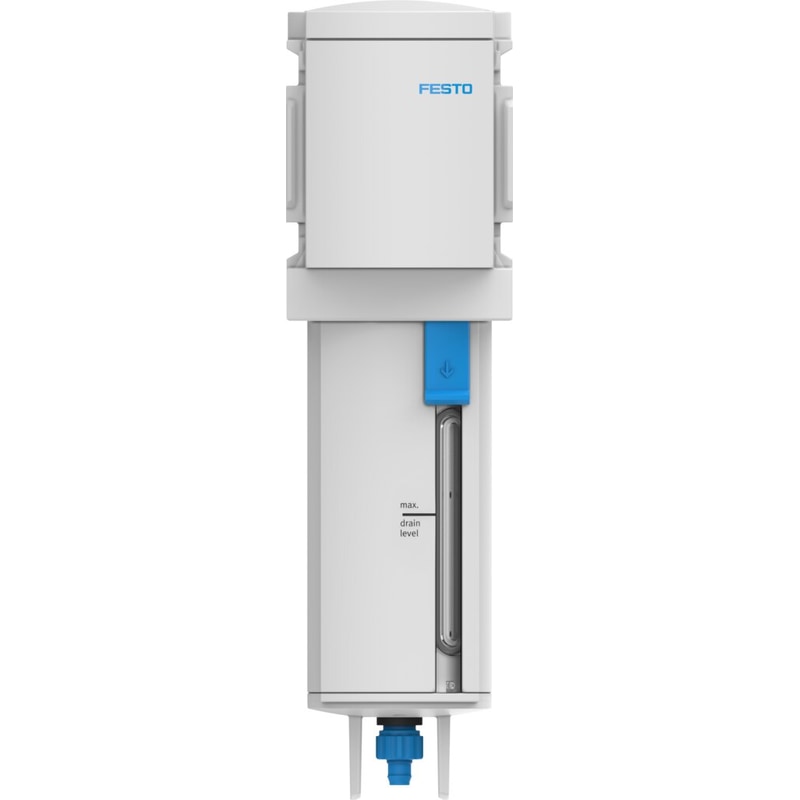

filter MS6N-LF-3/8-CUM 5 µm filter, metal bowl, manual condensate drain, direction of flow: from left to right. Size=6, Series=MS, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm, Condensate drain=manual rotary
| Size | 6 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 38 cm3 |
| Bowl guard | integrated as metal shell |
| Operating pressure | 0 ... 20 bar |
| Standard nominal flow rate | 3,000 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
