Filter

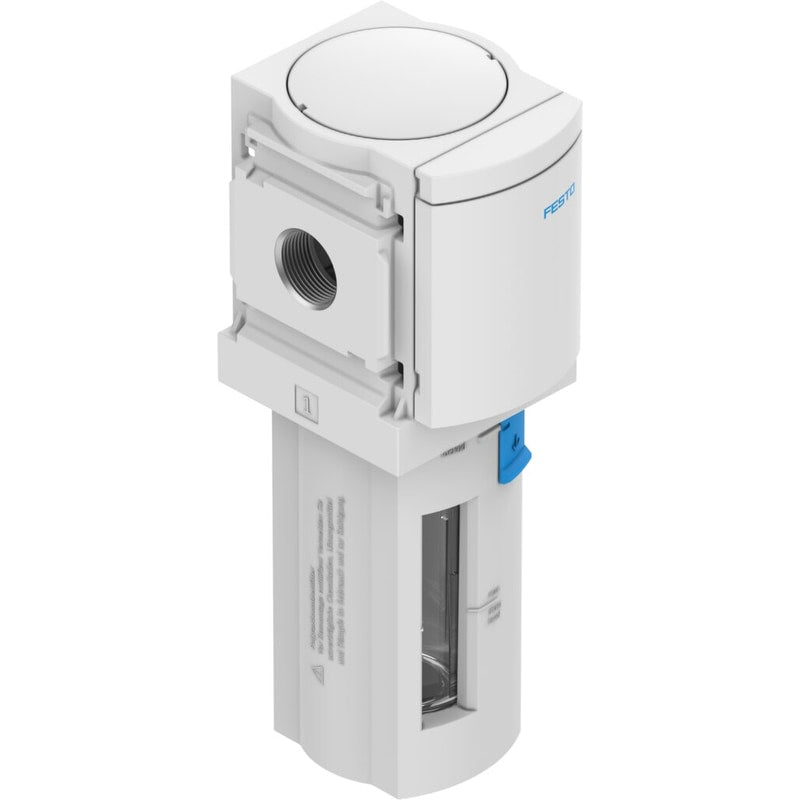

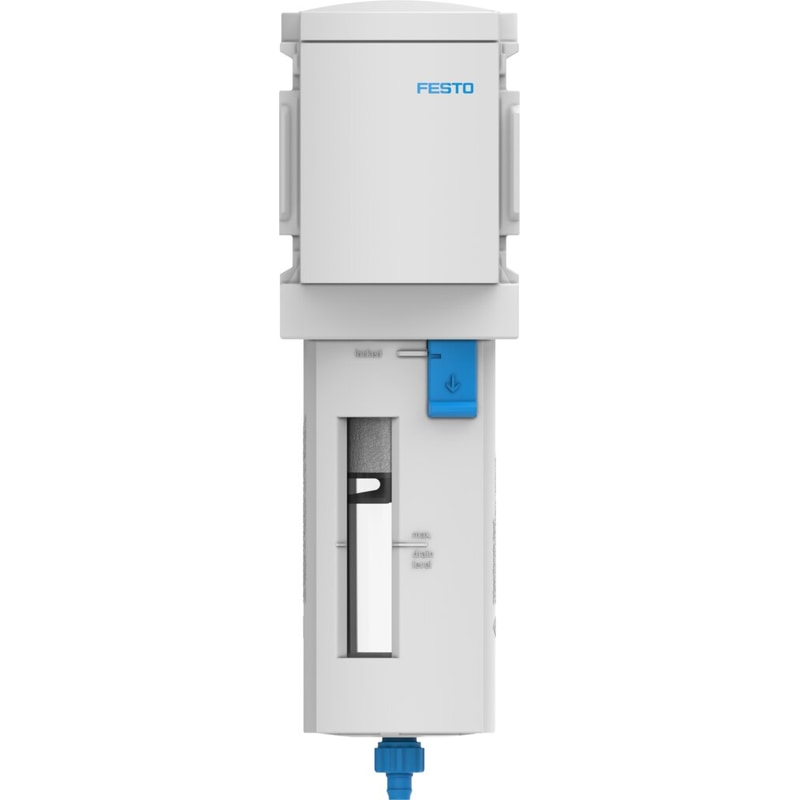

MS6N-LF-1/2-ERM
531520
Vendor Festo
- Pneumatic connection 1
- 1/2 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 4100 l/min
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 0 bar - 20 bar
- Grade of filtration
- 40 µm
Regular price
$49.92
Unit price
MS6N-LF-1/2-ERM is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6N-LF-1/2-ERM
Regular price
$49.92
Unit price
MS6N-LF-1/2-ERM is backordered and will ship as soon as it is back in stock.
filter MS6N-LF-1/2-ERM 40 µm filter, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size=6, Series=MS, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm, Condensate drain=manual rotary
| Size | 6 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | manual rotary |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 38 cm3 |
| Bowl guard | Plastic guard |
| Operating pressure | 0 ... 20 bar |
| Standard nominal flow rate | 4,100 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
