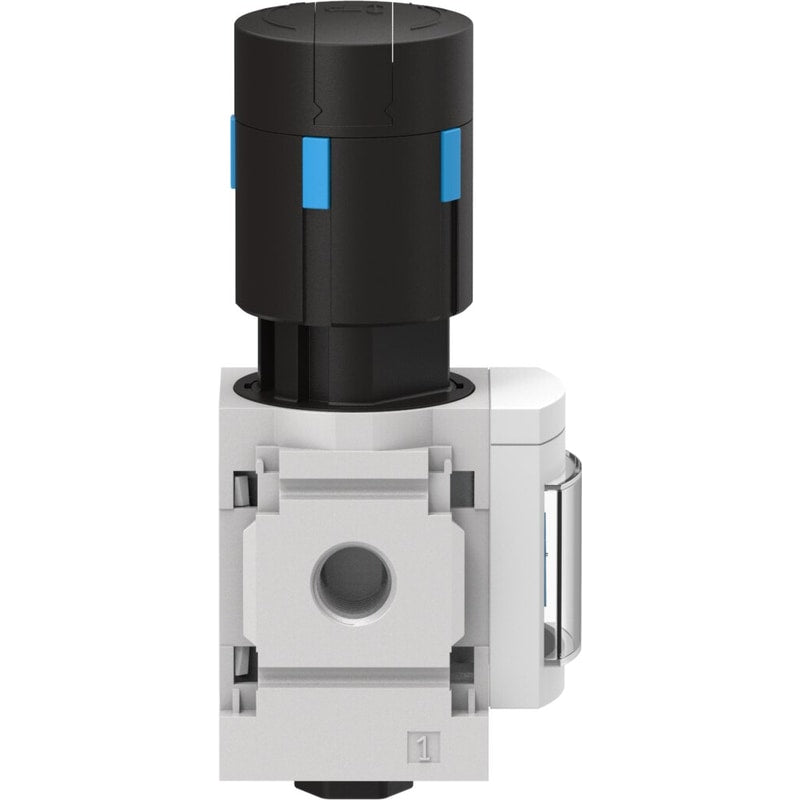

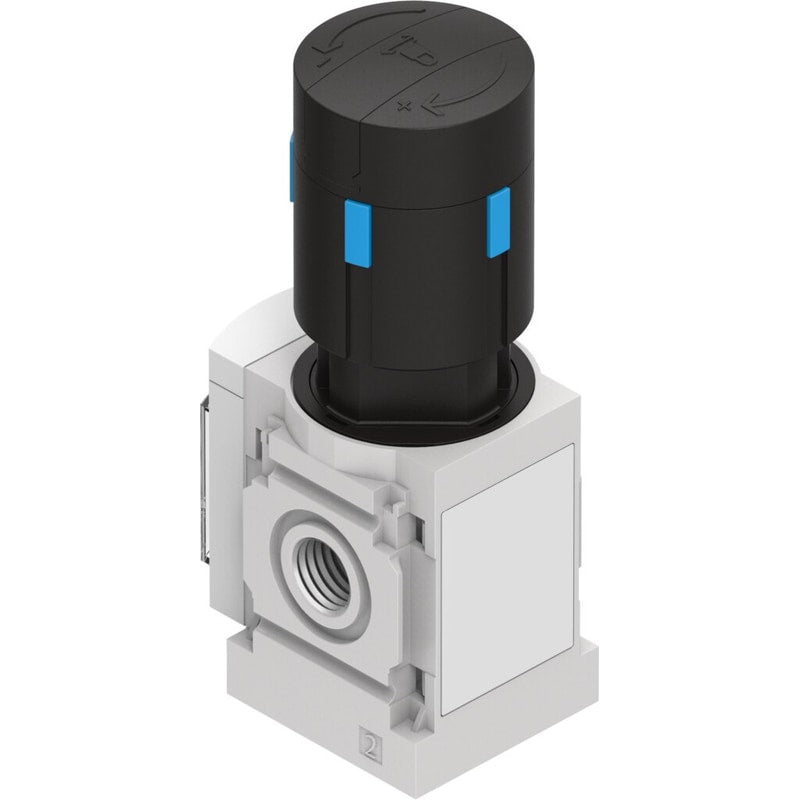

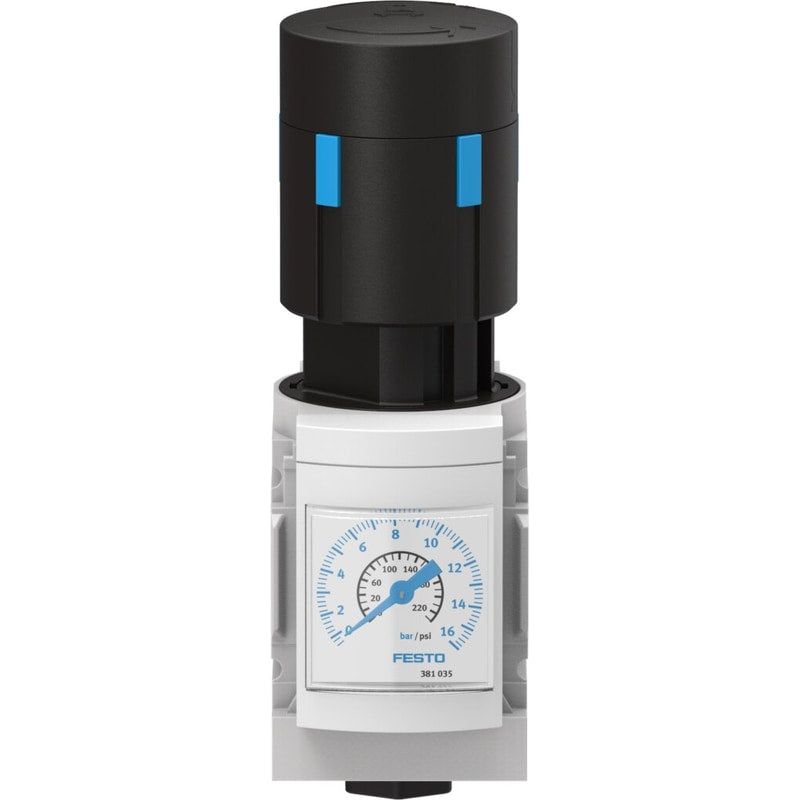

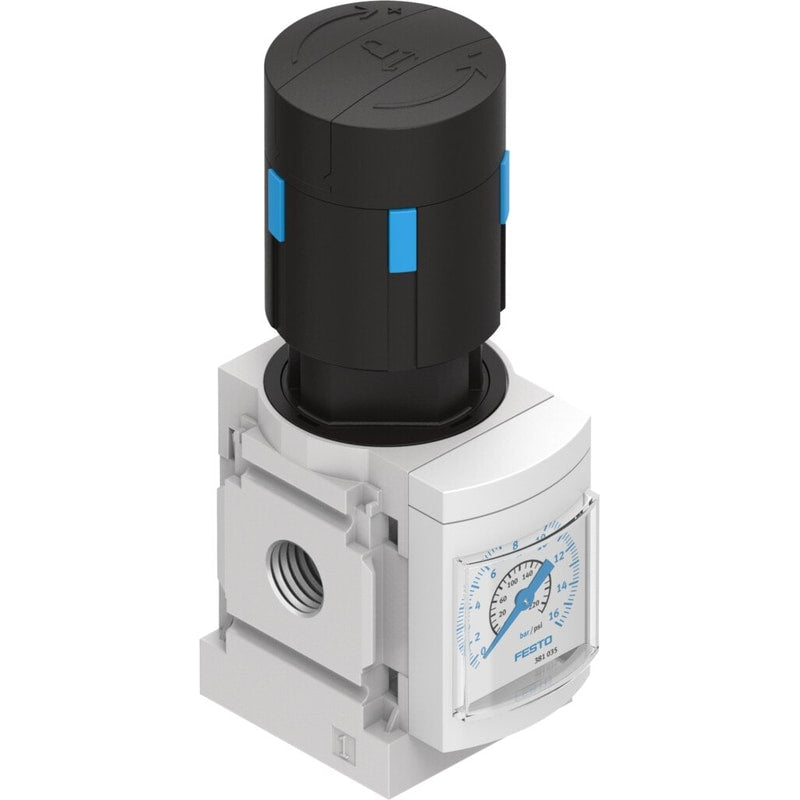

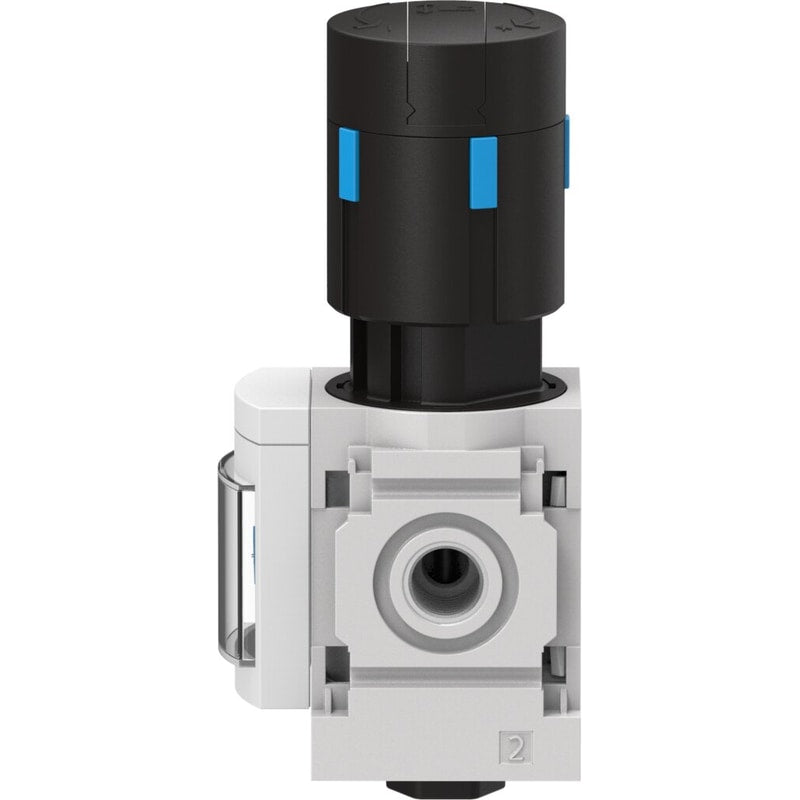

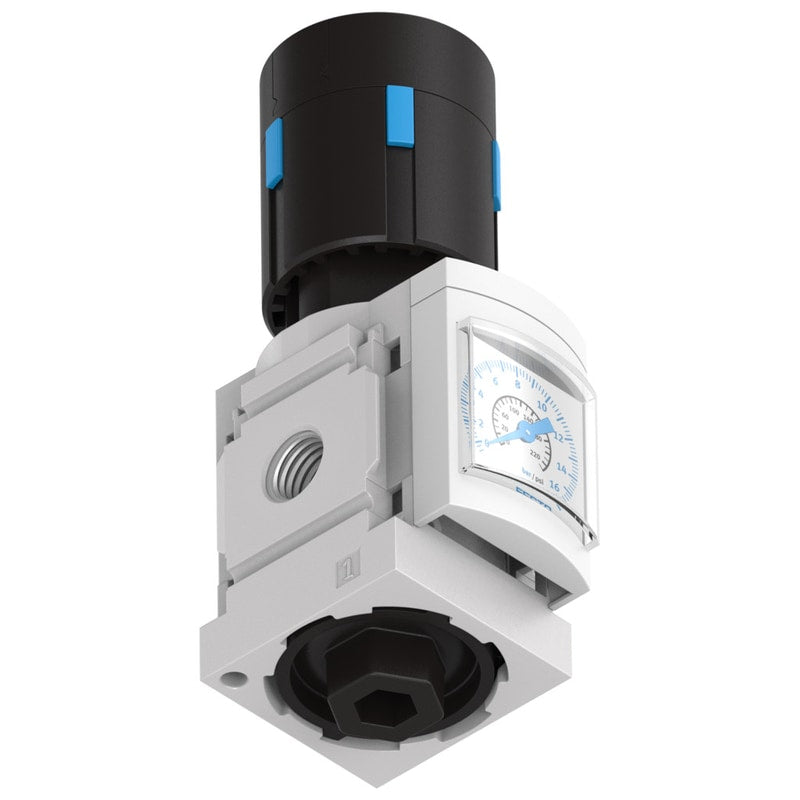

Pressure regulator
MS4N-LR-1/4-D7-AS-Z
531428
GTIN 4052568335625
Vendor Festo
- Pneumatic connection 1
- 1/4 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 1700 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Max. pressure hysteresis
- 0.25 bar
Regular price
$42.04
Unit price
Pressure regulator MS4N-LR-1/4-D7-AS-Z is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS4N-LR-1/4-D7-AS-Z
Regular price
$42.04
Unit price
Pressure regulator MS4N-LR-1/4-D7-AS-Z is backordered and will ship as soon as it is back in stock.
pressure regulator MS4N-LR-1/4-D7-AS-Z 12 bar maximum output pressure, with pressure gauge, lockable regulator head, direction of flow: from right to left. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=directly-controlled diaphragm regulator
| product type | Pressure Regulator |
|---|---|
| Port Size | 1/4" Port Connection |
| pressure range | 0.5-12bar (7.25-174PSI) |
| options | Lockable |
| option | Right to Left Flow |
