Connecting cable
KMP6-09P-8-5
531185
GTIN 4052568165116
Vendor Festo
- Cable length
- 5 m
Regular price
$152.34
Unit price
KMP6-09P-8-5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMP6-09P-8-5
Regular price
$152.34
Unit price
KMP6-09P-8-5 is backordered and will ship as soon as it is back in stock.

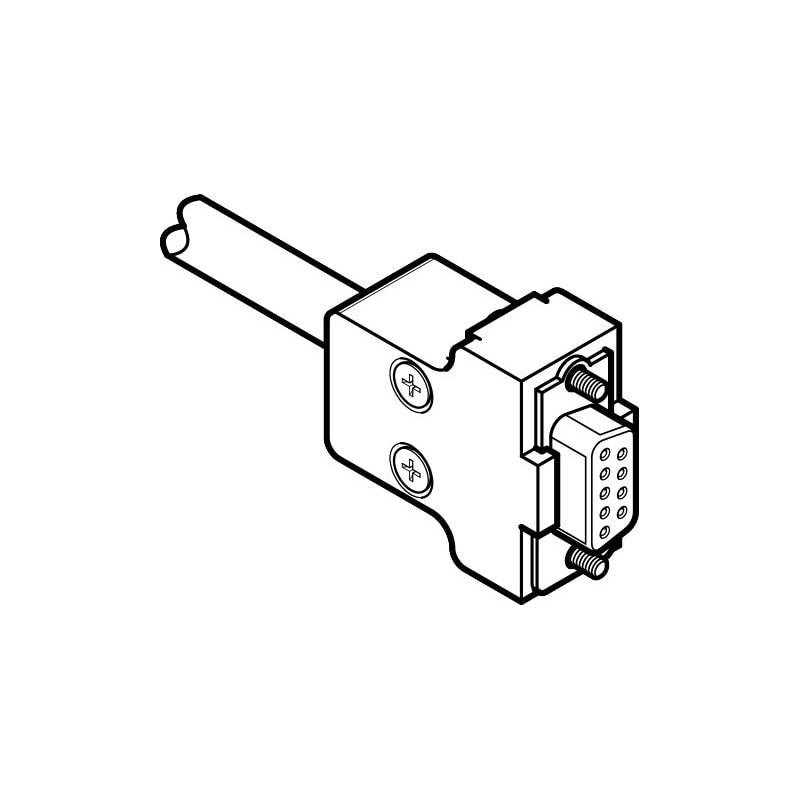

connecting cable KMP6-09P-8-5 For miniature valves, with Sub-D, 9-pin for 8 coils. Mounting type=with through hole, Assembly position=Any, Product weight=454 g, Electrical connection=(* Plug socket, * Sub-D, * 9-pin), Operating voltage range DC=<= 24 V
| Mounting type | with through hole |
|---|---|
| Assembly position | Any |
| Product weight | 454 g |
| Electrical connection | Plug socketSub-D9-pin |
| Operating voltage range DC | <= 24 V |
| Permissible current load | 2.8 A |
| Cable length | 5 m |
| Cable diameter | 7.6 mm |
| Cable structure | 8x0,34+1x0,5 |
| Protection class | IP40 |
| Ambient temperature | '-30 ... 80 °C |
| Ambient temperature with flexible cable installation | '-5 ... 80 °C |
| Material cable sheath | PVC |
