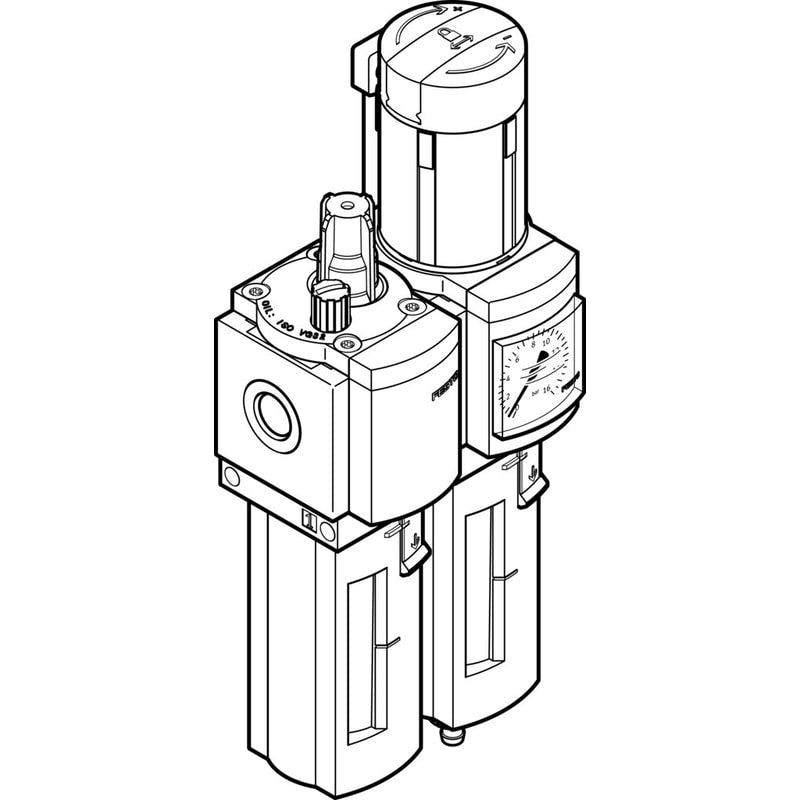

Air preparation combination unit MSB4-1/4-FRC5:J1M1-Z
531118
Vendor Festo
Regular price
$125.91
Unit price
Air preparation combination unit MSB4-1/4-FRC5:J1M1-Z is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
Air preparation combination unit MSB4-1/4-FRC5:J1M1-Z
Regular price
$125.91
Unit price
Regular price
$125.91
Unit price
Air preparation combination unit MSB4-1/4-FRC5:J1M1-Z is backordered and will ship as soon as it is back in stock.

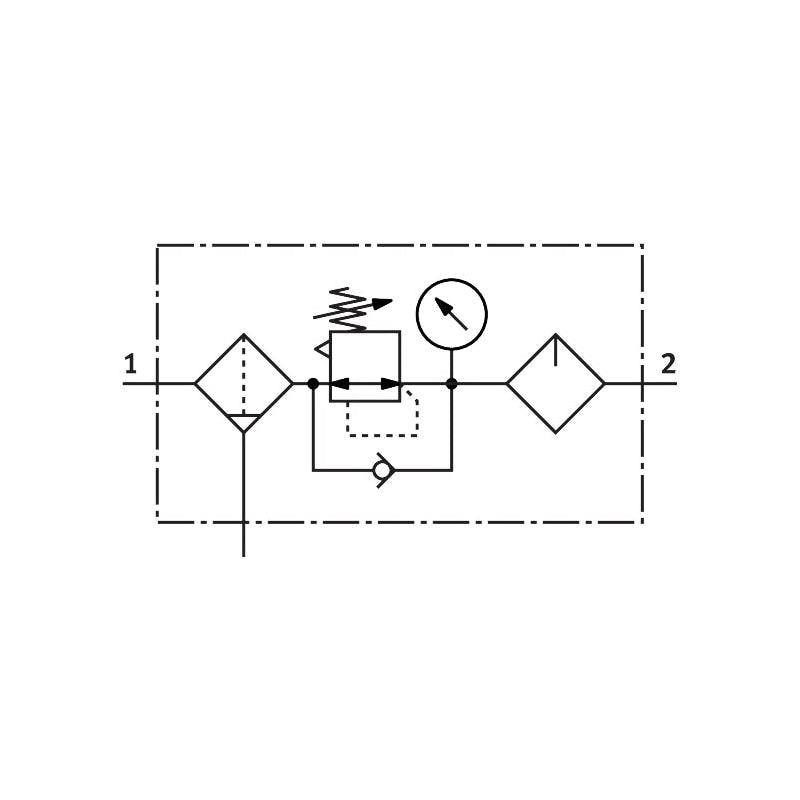

service unit combination MSB4-1/4-FRC5:J1M1-Z Filter-regulator-lubricator combination, 12 bar maximum output pressure, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from right to left. Size=4, Series=MS, Actuator lock=Rotary knob with integrated lock, Assembly position=Vertical +/- 5°, Condensate drain=manual rotary
| Size | 4 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with integrated lock |
| Assembly position | Vertical +/- 5° |
| Condensate drain | manual rotary |
| Design structure | Filter regulator with pressure gaugeproportional standard mist lubricator |
| Grade of filtration | 40 µm |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Bowl guard | Plastic guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1.5 ... 14 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Standard nominal flow rate | 900 l/min |
