Connecting cable
KV-M12-M12-3,5
530901
GTIN 4052568085889
Vendor Festo
Regular price
$79.56
Unit price
KV-M12-M12-3,5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KV-M12-M12-3,5
Regular price
$79.56
Unit price
KV-M12-M12-3,5 is backordered and will ship as soon as it is back in stock.

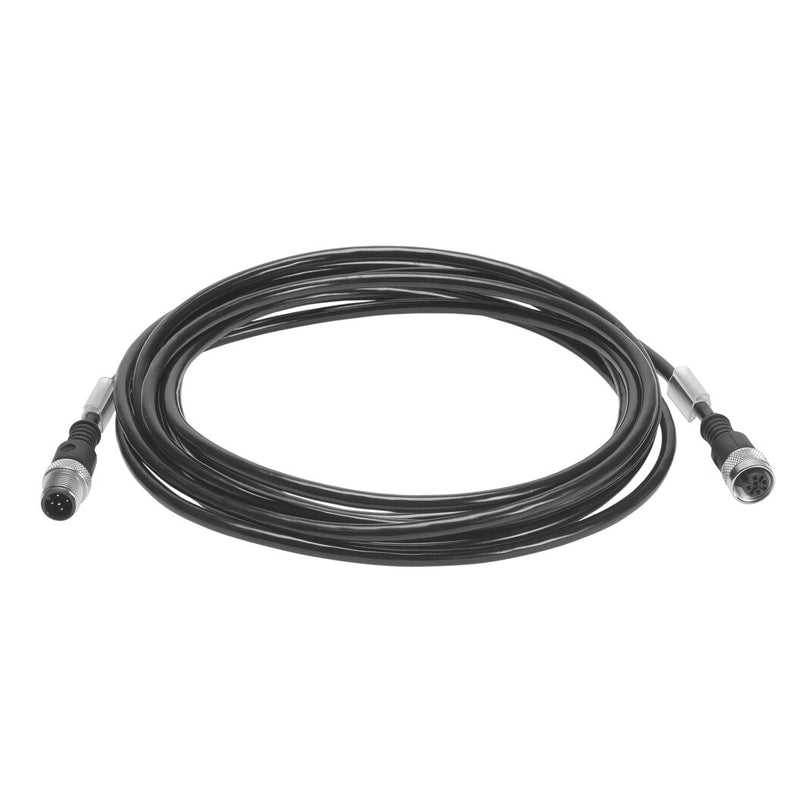

connecting cable KV-M12-M12-3,5 for modular electrical terminal CPX. Electrical connection 1=Straight plug, M12x1, 5-pin, A-coded, Cable interface=M12 socket/pin, Electrical connection 2=Straight socket, M12x1, 5-pin, A-coded, Cable length=3,5 m, Protection class=(* IP65, * IP67, * to IEC 60529)
| Additional functions | Pin 5 of plug leading |
|---|---|
| Cable identification | with accessories |
| Connection frequency | 500 |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded to EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw lock |
| Electrical connection 2, function | Controller side |
| Electrical connection 2, design | Round |
