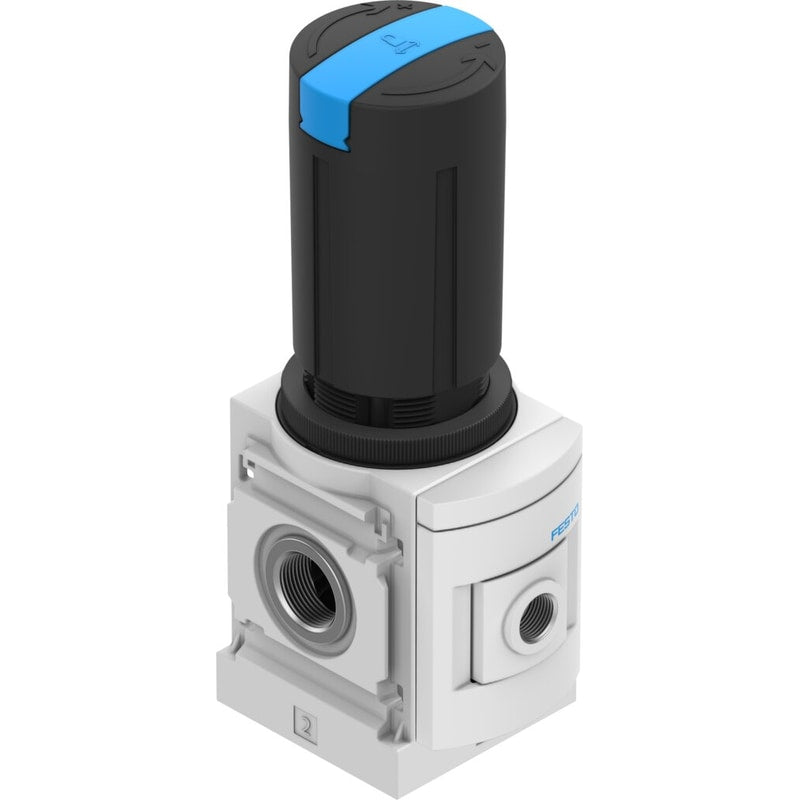

Pressure regulator
MS6-LRB-1/2-D5-A4-AS
530320
GTIN 4052568085766
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 7300 l/min
- Pressure regulation range
- 0.3 bar - 4 bar
- Max. pressure hysteresis
- 0.25 bar
Regular price
$61.29
Unit price
Pressure regulator MS6-LRB-1/2-D5-A4-AS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-LRB-1/2-D5-A4-AS
Regular price
$61.29
Unit price
Pressure regulator MS6-LRB-1/2-D5-A4-AS is backordered and will ship as soon as it is back in stock.
pressure regulator MS6-LRB-1/2-D5-A4-AS For manifold assembly, maximum output pressure 4 bar, with adapter G1/8 for pressure gauge acc. to EN 837, port P2 on reverse side. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=(* directly-controlled diaphragm regulator, * with looped-through compressed air supply)
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lockwith accessories, lockable |
| Assembly position | Any |
| Design structure | directly-controlled diaphragm regulatorwith looped-through compressed air supply |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaust |
| Pressure gauge | Prepared for G1/4 |
| Operating pressure | 0.8 ... 20 bar |
| Pressure regulation range | 0.3 ... 4 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate | 7,300 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
