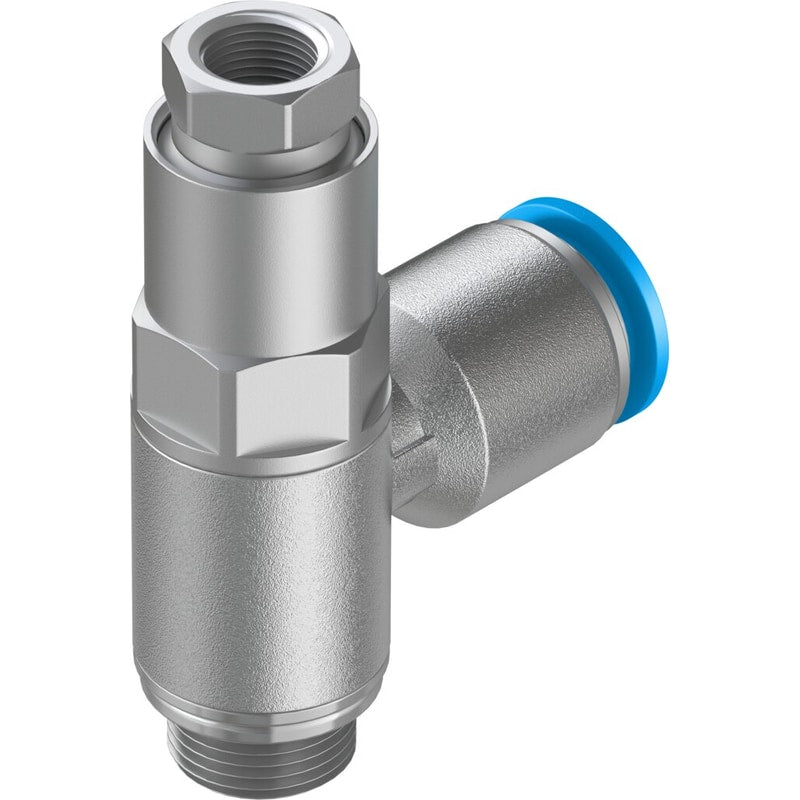

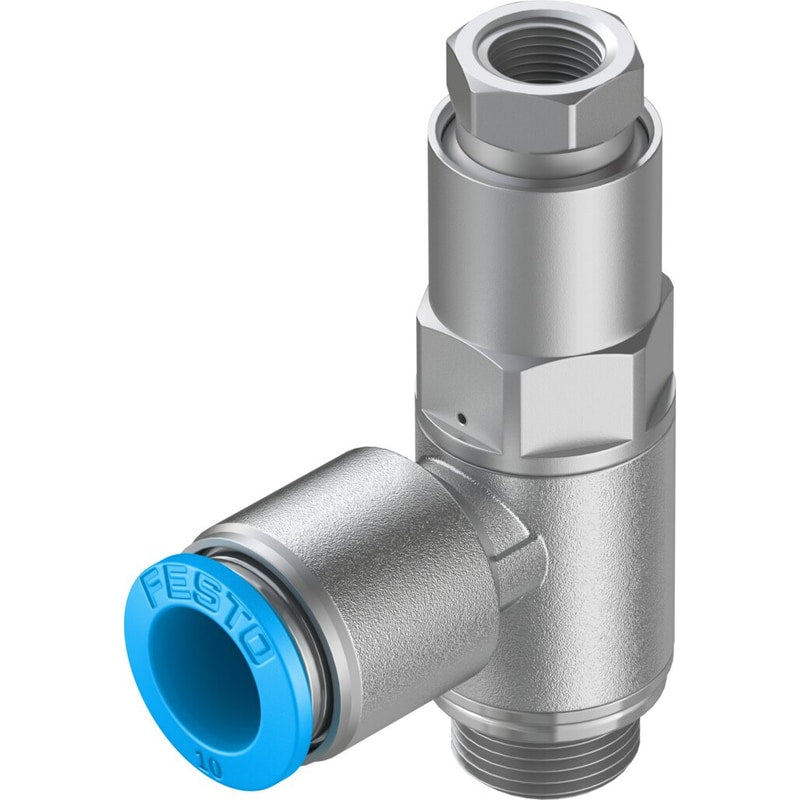

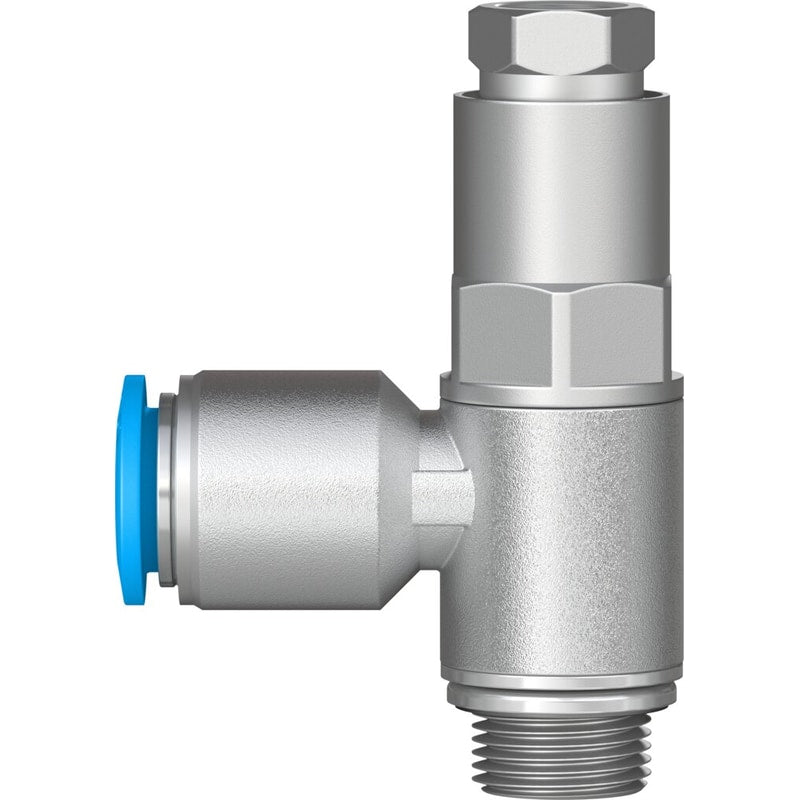

Piloted non return valve
HGL-1/4-QS-10
530042
GTIN 4052568085612
Vendor Festo
- Valve function
- Unlockable check valve function
- Pneumatic connection 1
- QS-10
- Pneumatic connection 2
- G¼
- Operating pressure
- 0.5 bar - 10 bar
- Type of mounting
- Screw-in - With external thread
Regular price
$88.05
Unit price
HGL-1/4-QS-10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HGL-1/4-QS-10
Regular price
$88.05
Unit price
HGL-1/4-QS-10 is backordered and will ship as soon as it is back in stock.
Stop valve with manual override option.
| Type code | HGL |
|---|---|
| Valve function | Unlockable non-return function |
| Pneumatic connection 1 | NPT1/4-18 |
| Pneumatic connection 2 | NPT1/8-27 |
| Type of mounting | Screw-in |
| Standard nominal flow rate | 0 l/min ... 490 l/min |
| Operating pressure | 0.3 bar ... 10 bar |
| Ambient temperature | -20 °C ... 80 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Symbol | 00991456 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -20 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
