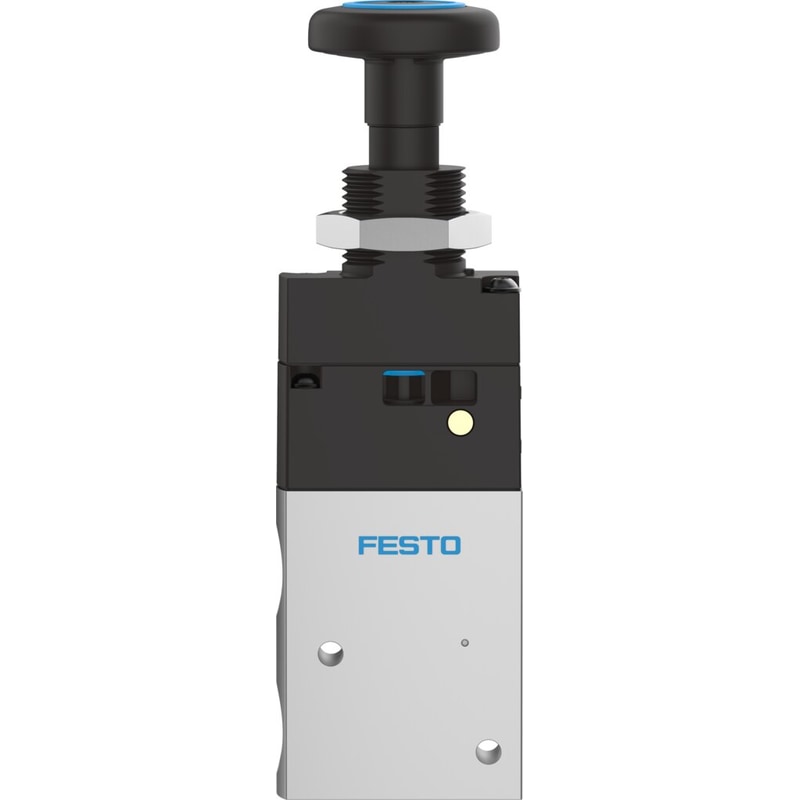

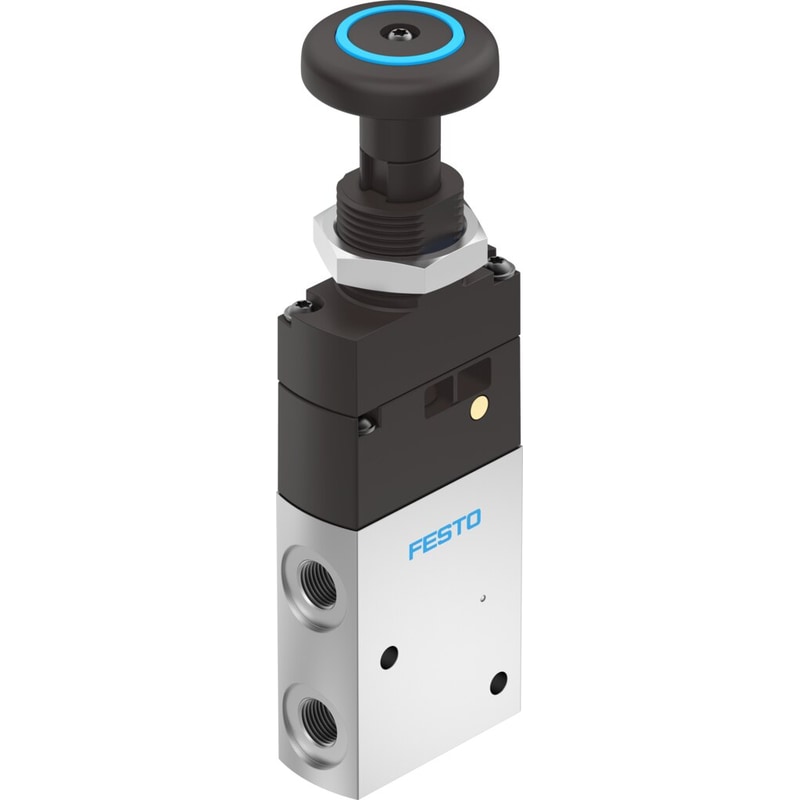

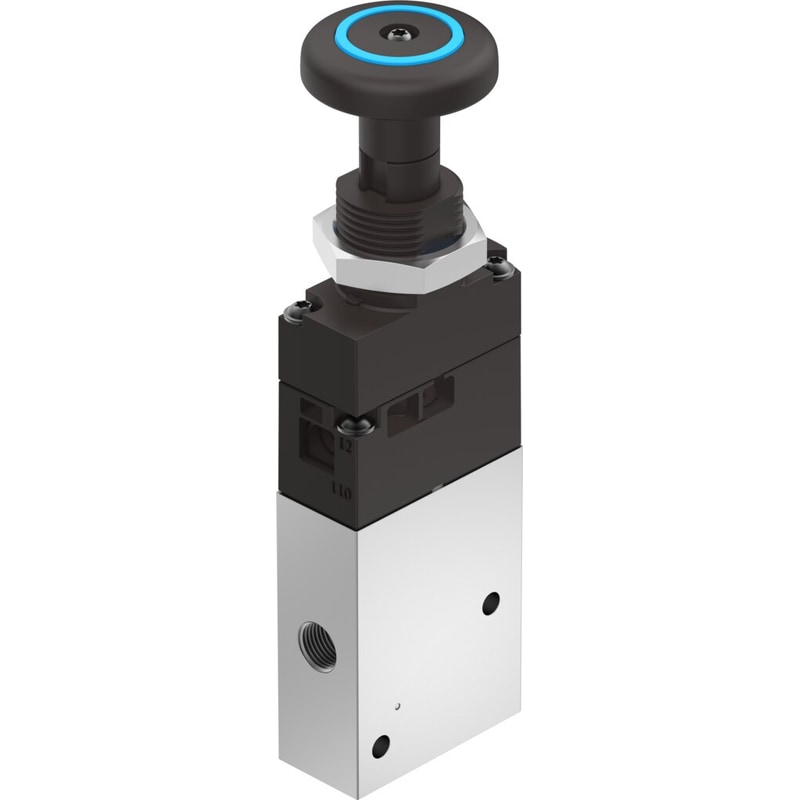

Pushbutton valve
VHEF-PTCZ-B32-G14
5299714
GTIN 4052568422707
Vendor Festo
- Valve function
- 3/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 870 l/min
- Pneumatic connection 1
- G1/4
- Operating pressure
- -0.95 bar - 10 bar
- Width
- 20 mm
Regular price
$182.87
Unit price
VHEF-PTCZ-B32-G14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VHEF-PTCZ-B32-G14
Regular price
$182.87
Unit price
VHEF-PTCZ-B32-G14 is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, bistable |
|---|---|
| Lap | Zero overlap |
| Cover material | PA-reinforced |
| Actuation type | Manual |
| Width | 20 mm |
| Standard nominal flow rate | 870 l/min |
| Pneumatic working port | G1/4 |
| Operating pressure | -0.95 bar ... 10 bar |
| Design | Plate seat |
| Nominal width | 6 mm |
| Type code | VHEF |
| Exhaust air function | With flow control option |
| Application note | Operate by hand only |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Reversible |
| Symbol | 995886 |
| Pilot pressure | 3 bar ... 10 bar |
| Max. switching frequency | 0.5 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Actuating force | 20 N |
| Release force | 25 N |
| Product weight | 161 g |
| Type of mounting | Front panel mountingWith through-holeOptionally: |
| Pilot air port 12/14 | M5 |
| Pilot air port 12 | M5 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy, anodized |
