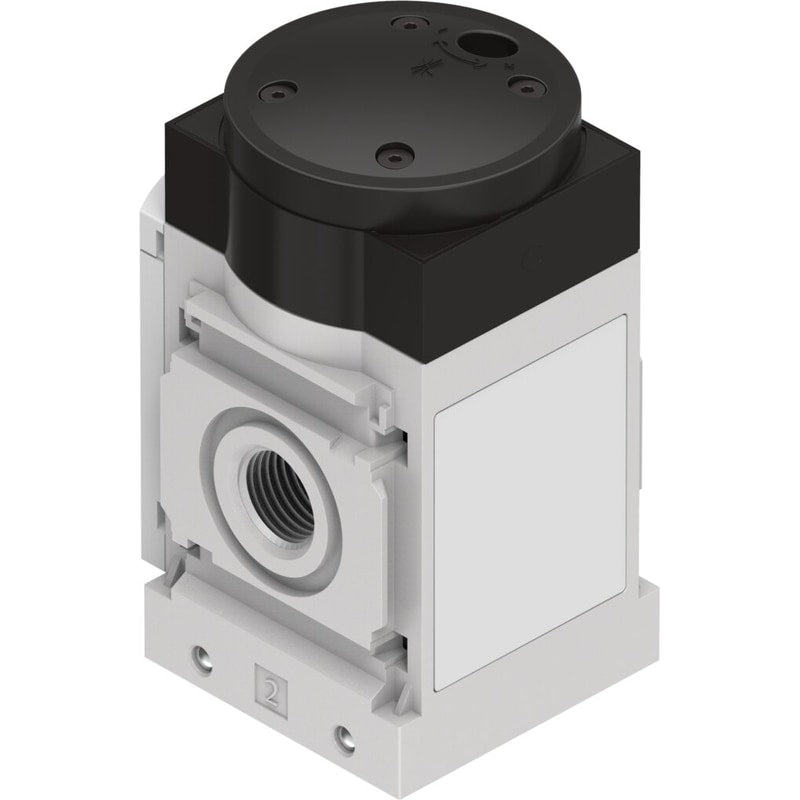

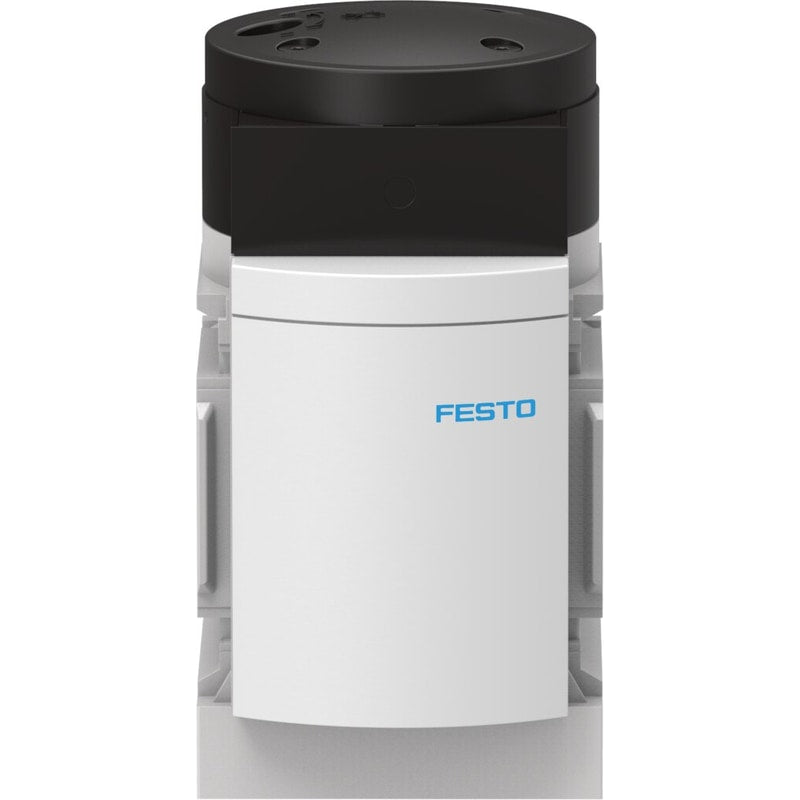

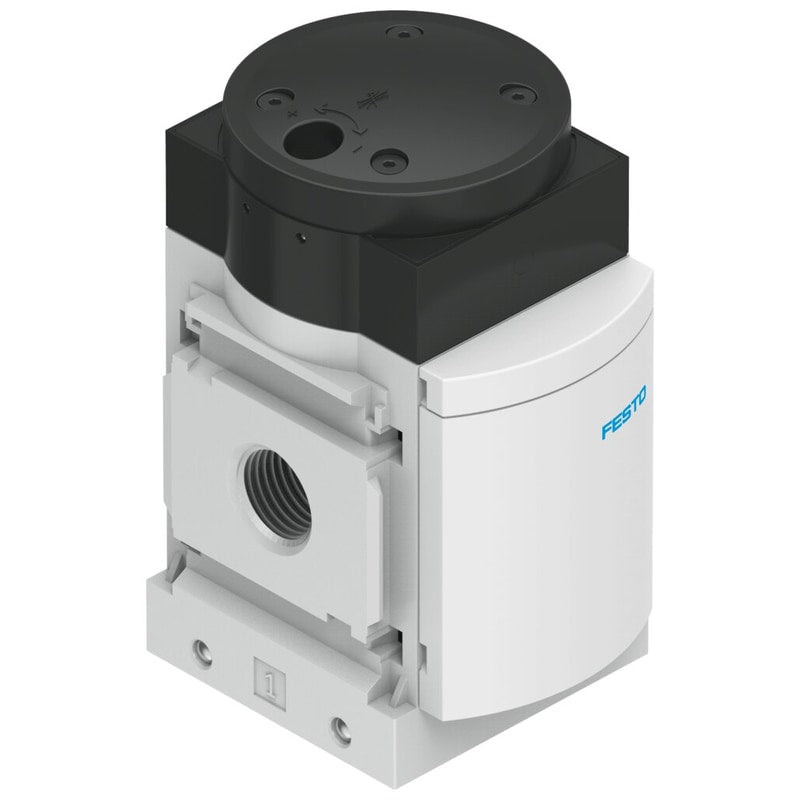

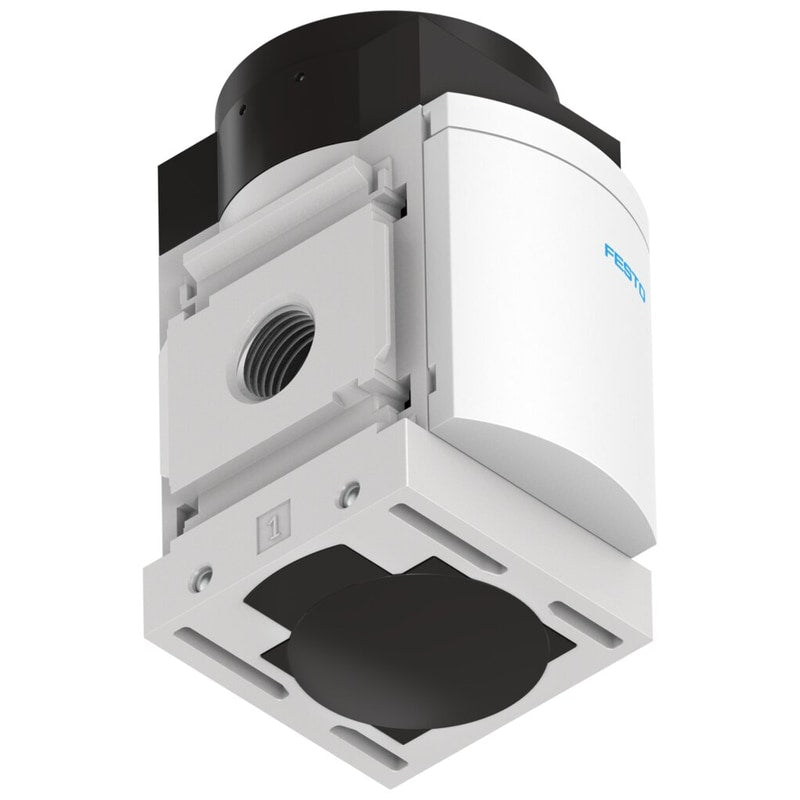

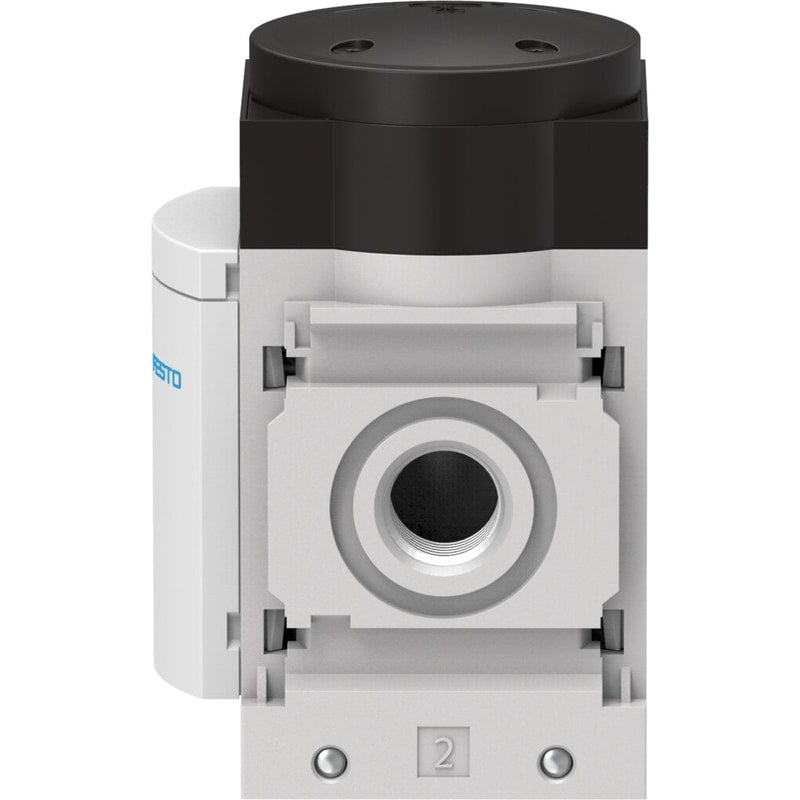

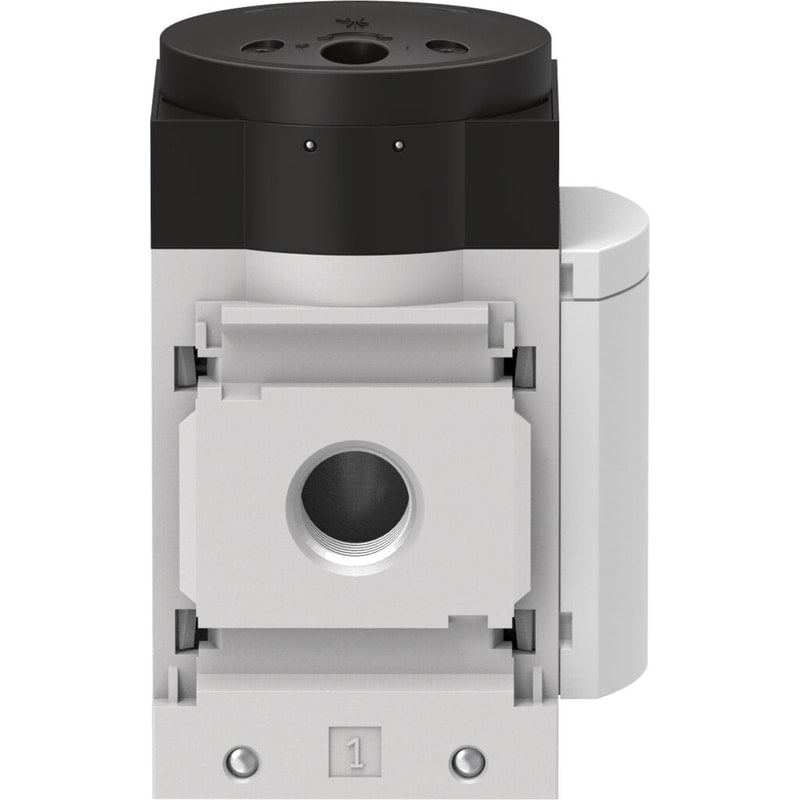

Soft-start valve
MS6-DL-1/2
529817
GTIN 4052568005214
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 6450 l/min
- Operating pressure
- 4 bar - 18 bar
- Actuation type
- Pneumatic
Regular price
$87.94
Unit price
Soft-start valve MS6-DL-1/2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-DL-1/2
Regular price
$87.94
Unit price
Soft-start valve MS6-DL-1/2 is backordered and will ship as soon as it is back in stock.

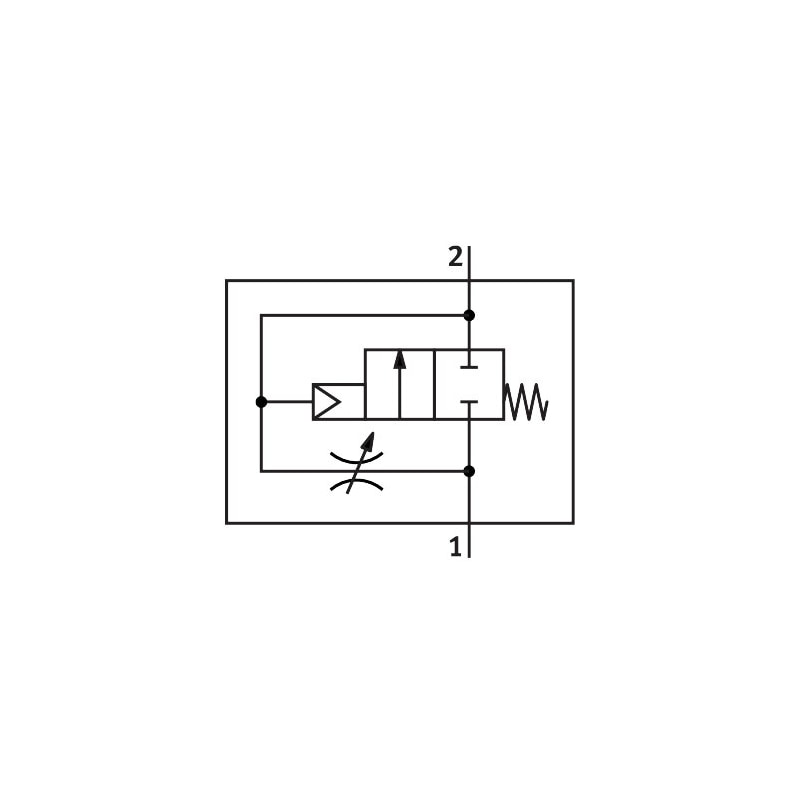

soft-start valve MS6-DL-1/2 Pneumatic, for gradual pressure build-up, direction of flow: from left to right. Exhaust-air function=throttleable, Type of actuation=pneumatic, Assembly position=Any, Manual override=None, Design structure=Piston seat
| Exhaust-air function | throttleable |
|---|---|
| Type of actuation | pneumatic |
| Assembly position | Any |
| Manual override | None |
| Design structure | Piston seat |
| Type of reset | mechanical spring |
| Type of piloting | direct |
| Pilot air supply | external |
| Flow direction | non reversible |
| Valve function | 43498 |
| Operating pressure | 4 ... 18 bar |
| b value | 0.39 |
| C value | 28.97 l/sbar |
