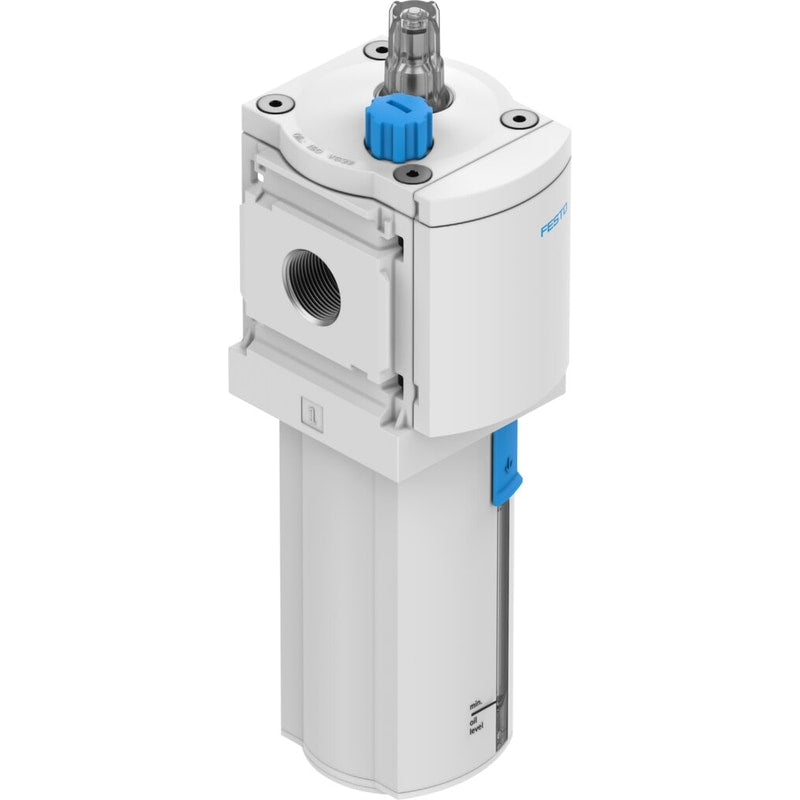

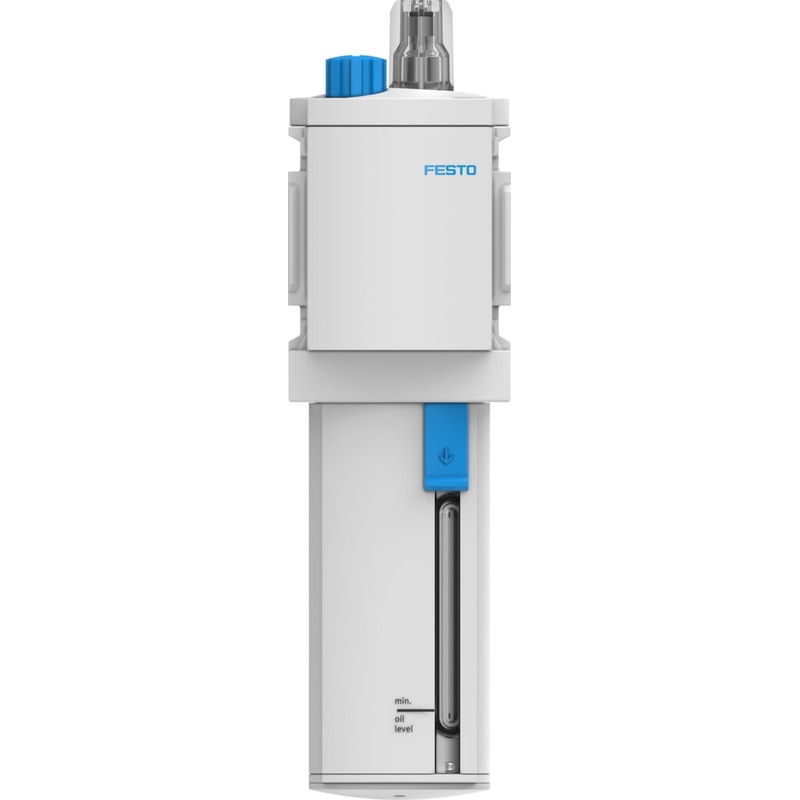

Air line lubricator
MS6-LOE-3/8-U
529785
GTIN 4052568164294
Vendor Festo
- Pneumatic connection 1
- G3/8
- Normal nominal flow rate (normalized to DIN 1343)
- 5300 l/min
- Operating pressure
- 1 bar - 16 bar
- Minimum flow rate for lubricator function
- 50 l/min
Regular price
$92.20
Unit price
Air line lubricator MS6-LOE-3/8-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-LOE-3/8-U
Regular price
$92.20
Unit price
Air line lubricator MS6-LOE-3/8-U is backordered and will ship as soon as it is back in stock.
lubricator MS6-LOE-3/8-U Metal bowl, direction of flow: from left to right. Size=6, Series=MS, Assembly position=Vertical +/- 5°, Design structure=proportional standard mist lubricator, Max. oil capacity=80 cm3
| Size | 6 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Design structure | proportional standard mist lubricator |
| Max. oil capacity | 80 cm3 |
| Bowl guard | integrated as metal shell |
| Operating pressure | 1 ... 16 bar |
| Minimum flow rate for lubricator function | 50 l/min |
| Standard nominal flow rate | 5,300 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
