Filter
MS6-LF-1/2-ERM-Z
529616
GTIN 4052568085360
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 4100 l/min
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 0 bar - 20 bar
- Grade of filtration
- 40 µm
Regular price
$54.66
Unit price
MS6-LF-1/2-ERM-Z is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-LF-1/2-ERM-Z
Regular price
$54.66
Unit price
MS6-LF-1/2-ERM-Z is backordered and will ship as soon as it is back in stock.

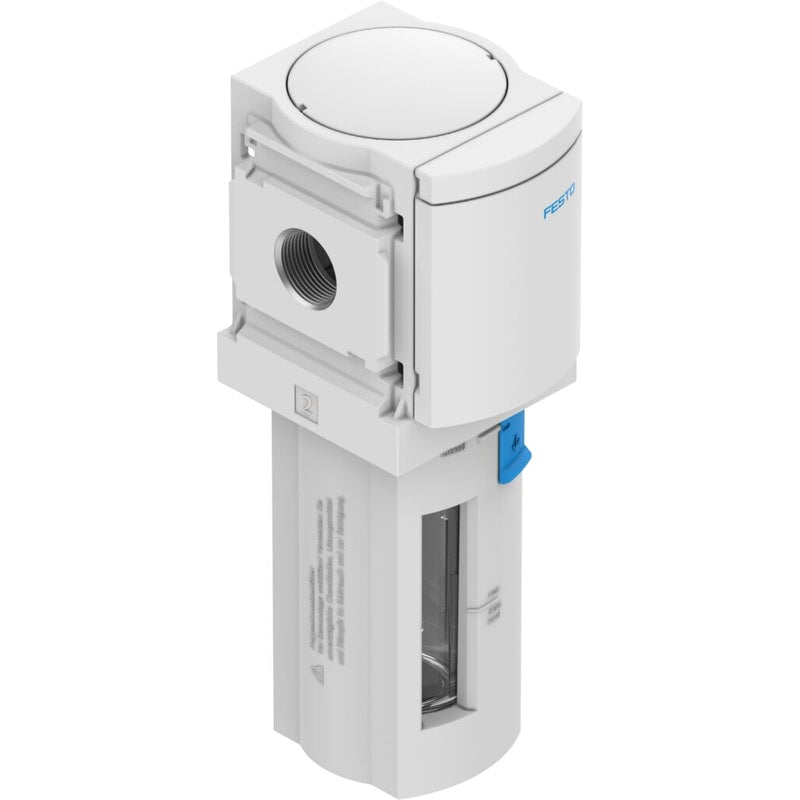

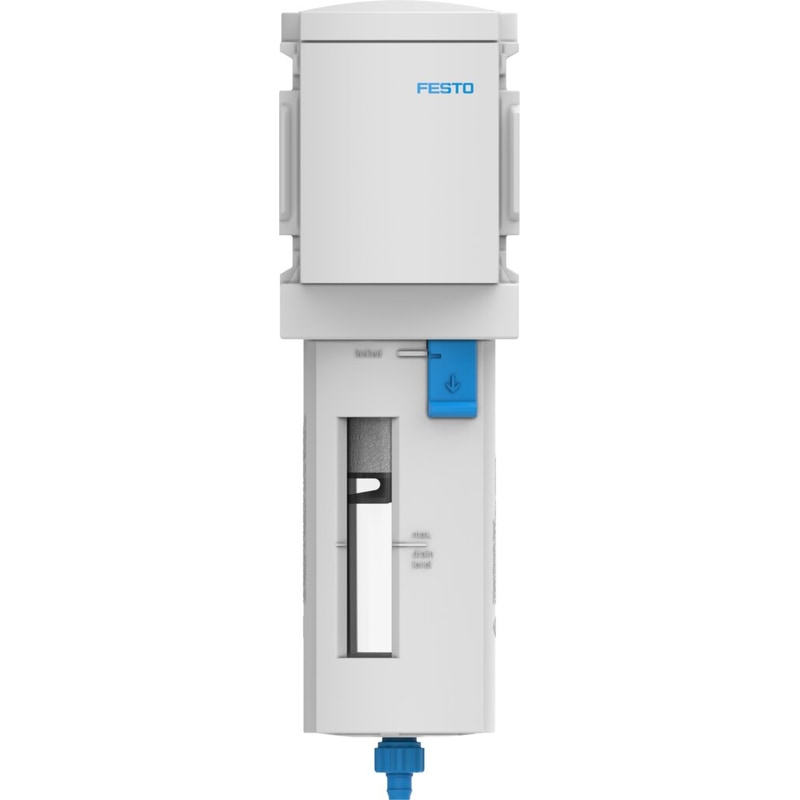

filter MS6-LF-1/2-ERM-Z 40 µm filter, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from right to left. Size=6, Series=MS, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm, Condensate drain=manual rotary
| Size | 6 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | manual rotary |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 38 cm3 |
| Bowl guard | Plastic guard |
| Operating pressure | 0 ... 20 bar |
| Standard nominal flow rate | 4,100 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
