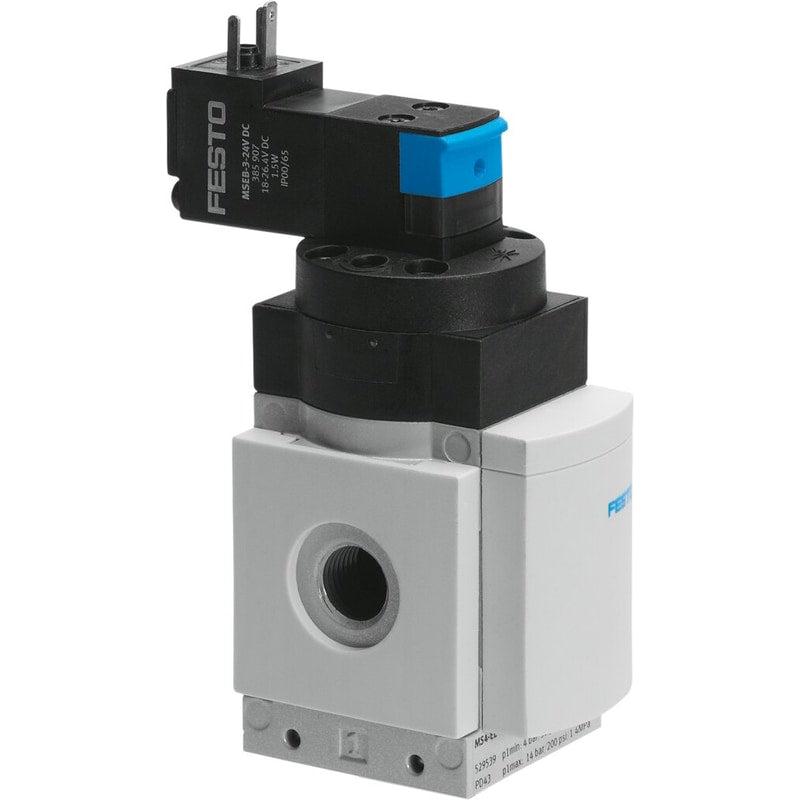

Soft-start valve
MS4-DE-1/4-V230
529521
GTIN 4052568163976
Vendor Festo
- Pneumatic connection 1
- G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 2000 l/min
- Operating pressure
- 4 bar - 14 bar
- Actuation type
- Electrical
Regular price
$183.20
Unit price
Soft-start valve MS4-DE-1/4-V230 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS4-DE-1/4-V230
Regular price
$183.20
Unit price
Soft-start valve MS4-DE-1/4-V230 is backordered and will ship as soon as it is back in stock.

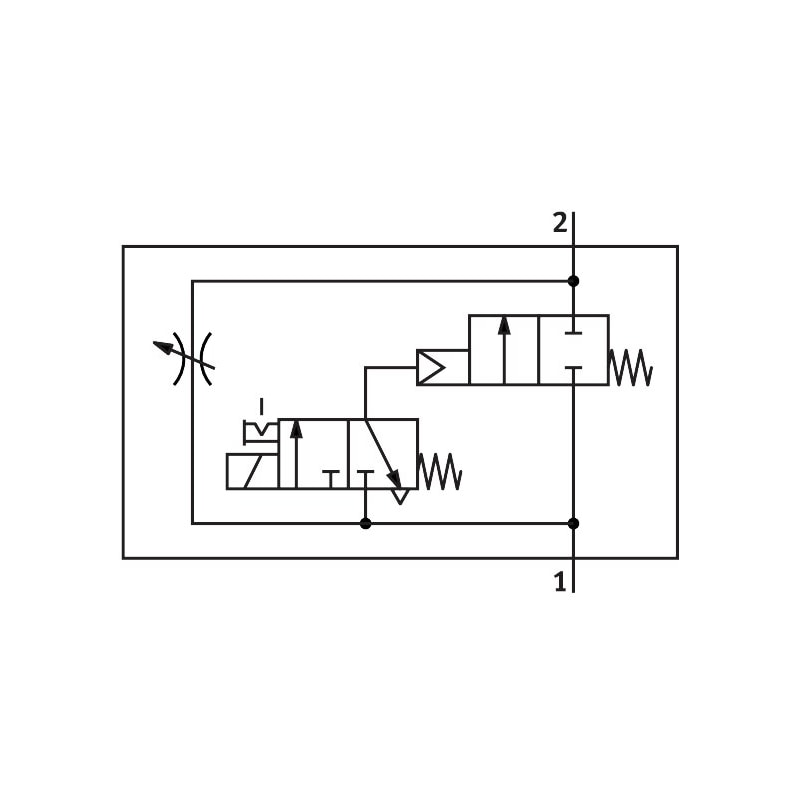

soft-start valve MS4-DE-1/4-V230 Electrical, for gradual pressure build-up, direction of flow: from left to right. Type of actuation=electrical, Assembly position=Any, Manual override=(* detenting, * Pushing), Design structure=Piston seat, Type of reset=mechanical spring
| product type | Electric Soft-Start Valve |
|---|---|
| Port Size | 1/4" Port Connection |
| Voltage | 230V AC |
