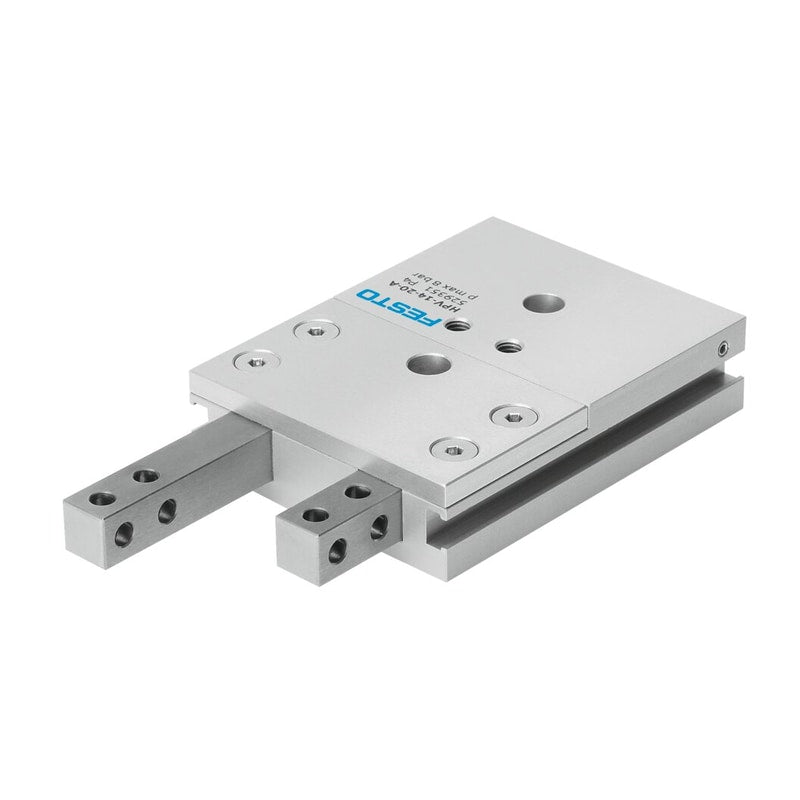

Feed separator
HPV-14-20-A
529351
GTIN 4052568015657
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 14 mm
- Stroke
- 20 mm
- Theoretical force at 6 bar, advancing
- 90 N
Regular price
$1,012.29
Unit price
HPV-14-20-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HPV-14-20-A
Regular price
$1,012.29
Unit price
HPV-14-20-A is backordered and will ship as soon as it is back in stock.
feed separator HPV-14-20-A Integrated SME-8-.../ SMT-8-... sensors. Optimised, accurate adaptation option with ZBH centring sleeves. Stroke=20 mm, Piston diameter=14 mm, Max. replacement accuracy=0,3 mm, Max. stem backlash Sx=0,05 mm, Max. stem backlash Sz=0,03 mm
| Stroke | 20 mm |
|---|---|
| Piston diameter | 14 mm |
| Max. replacement accuracy | 0.3 mm |
| Max. stem backlash Sx | 0.05 mm |
| Max. stem backlash Sz | 0.03 mm |
| Max. angular gripper jaw backlash ax | 0.12 deg |
| Max. angular gripper jaw backlash ay | 0.2 deg |
| Max. angular gripper jaw backlash az | 0.175 deg |
| Mounting of external fingers | Through-hole |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | twin pistonPiston rodStopperNon-rotating |
