Filter regulator
MS6-LFR-3/8-D6-CRV-AS
529218
GTIN 4052568163846
Vendor Festo
- Pneumatic connection 1
- G3/8
- Normal nominal flow rate (normalized to DIN 1343)
- 5000 l/min
- Pressure regulation range
- 0.3 bar - 7 bar
- Grade of filtration
- 5 µm
Regular price
$124.09
Unit price
MS6-LFR-3/8-D6-CRV-AS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-LFR-3/8-D6-CRV-AS
Regular price
$124.09
Unit price
MS6-LFR-3/8-D6-CRV-AS is backordered and will ship as soon as it is back in stock.

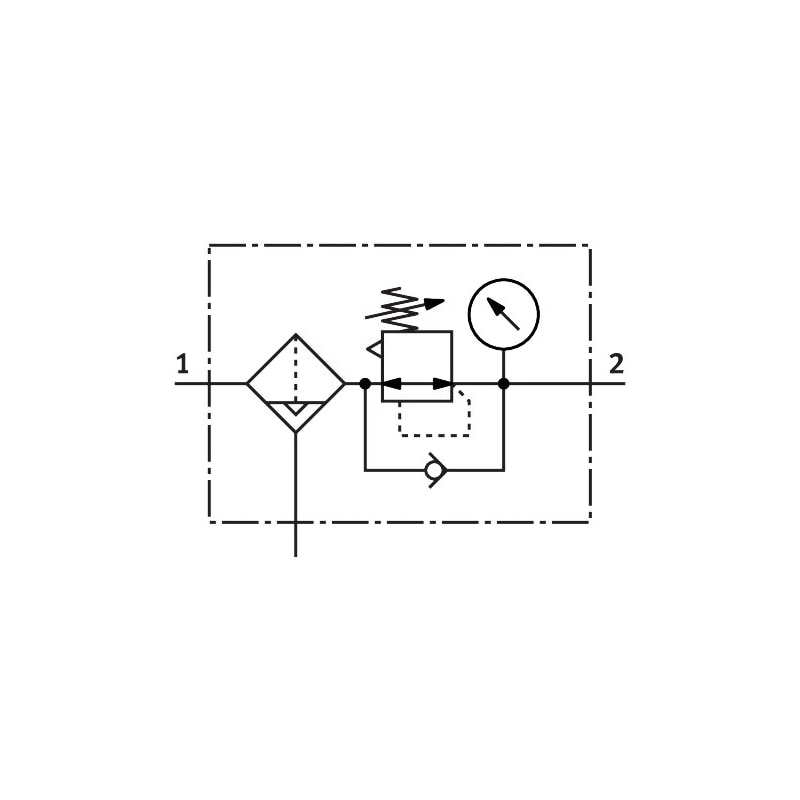

filter regulator MS6-LFR-3/8-D6-CRV-AS Maximum output pressure 7 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lockwith accessories, lockable |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | fully automatic |
| Design structure | Filter regulator with pressure gauge |
| Max. condensate volume | 38 ml |
| Controller function | Output pressure constantwith secondary exhaust |
| Bowl guard | Plastic guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 2 ... 12 bar |
| Pressure regulation range | 0.3 ... 7 bar |
