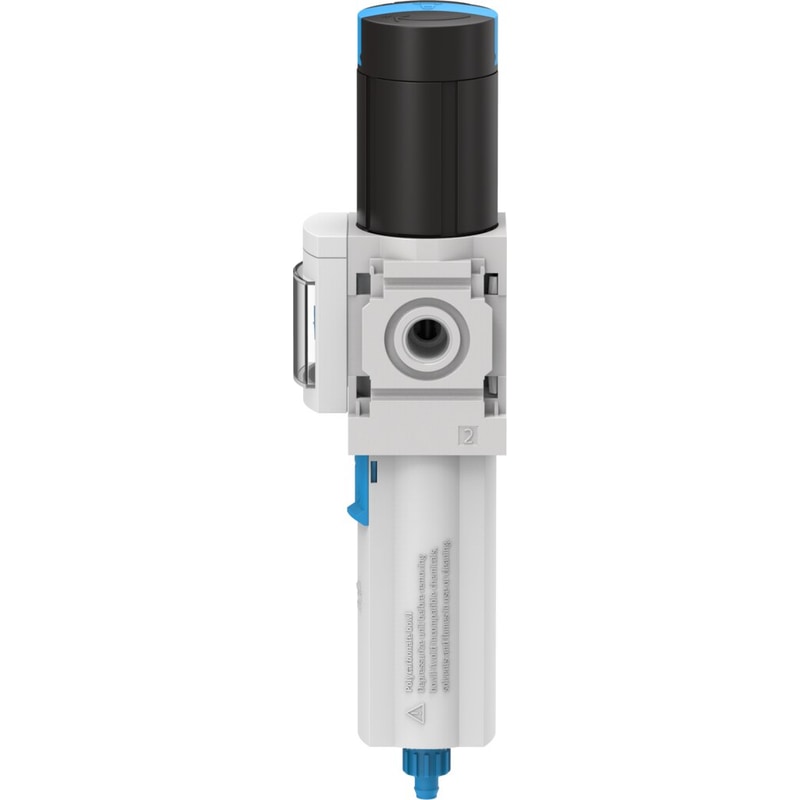

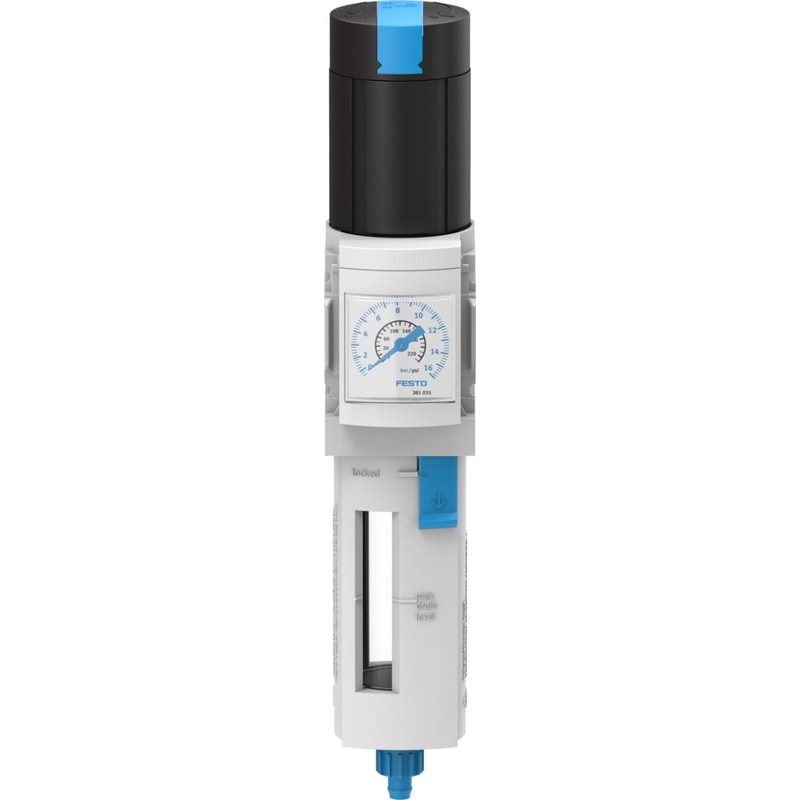

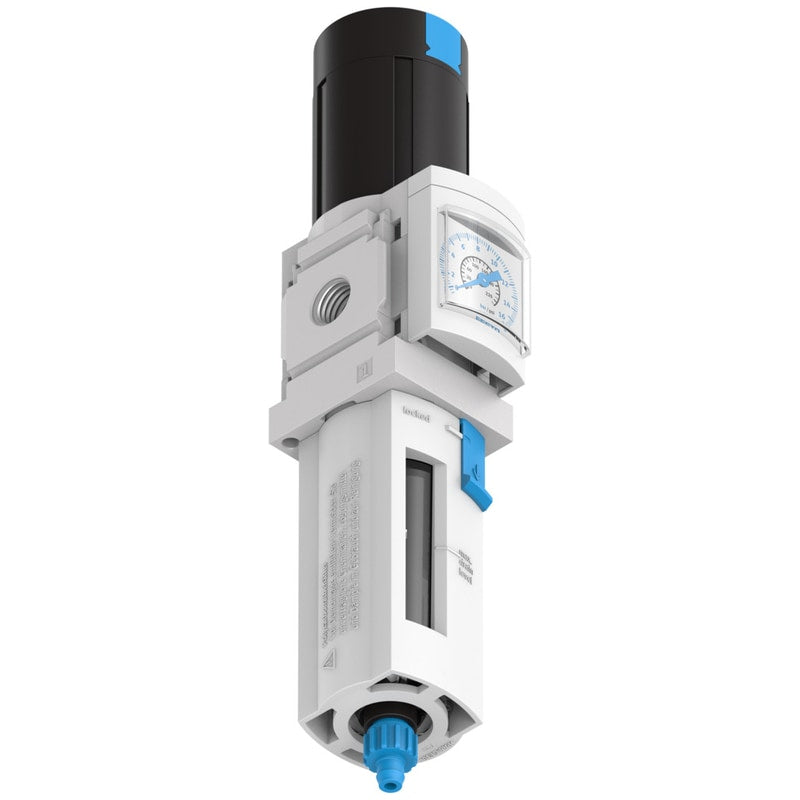

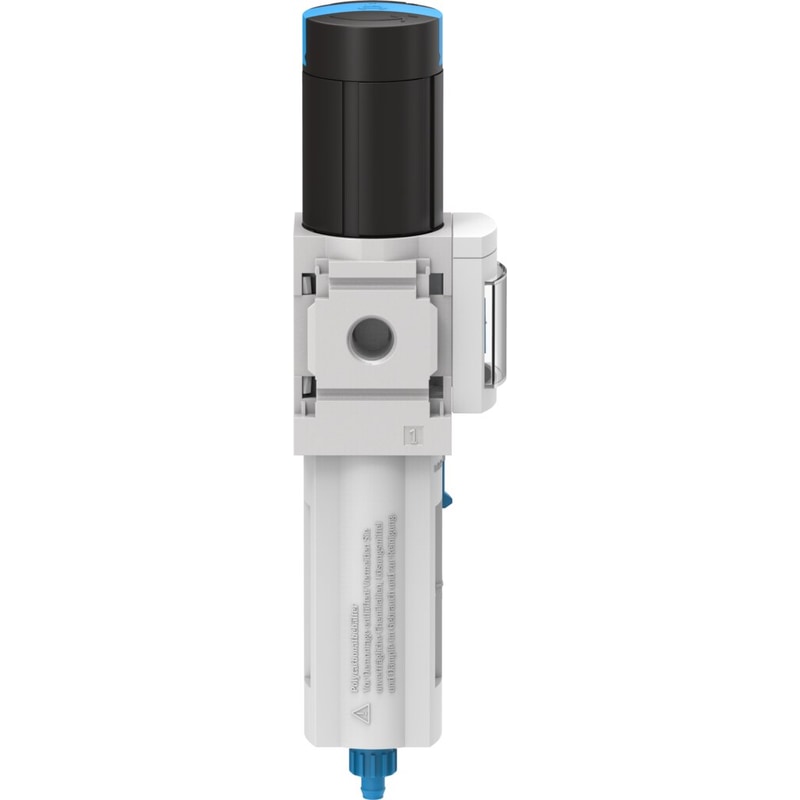

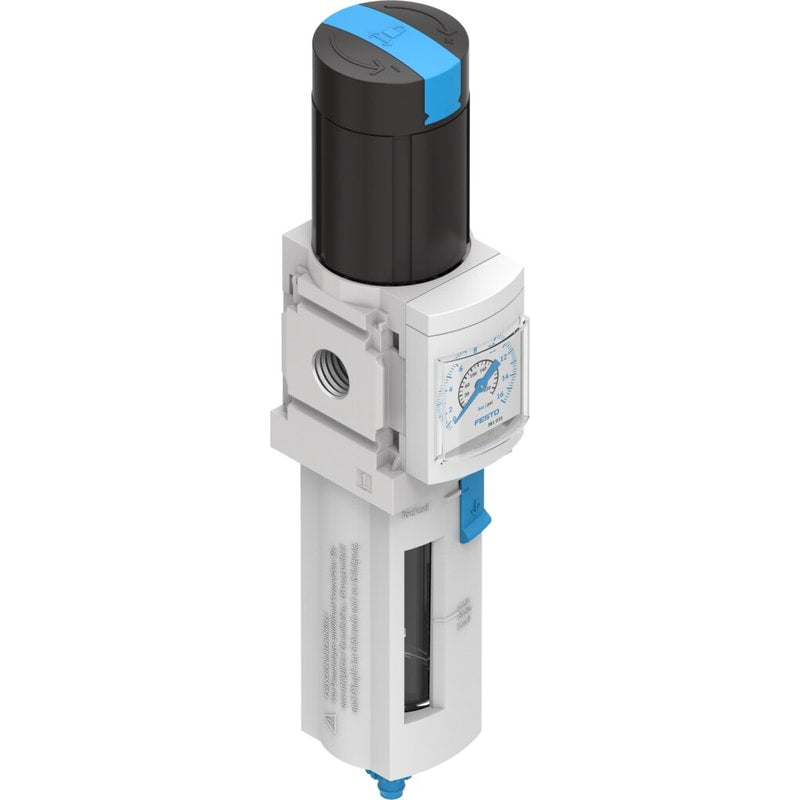

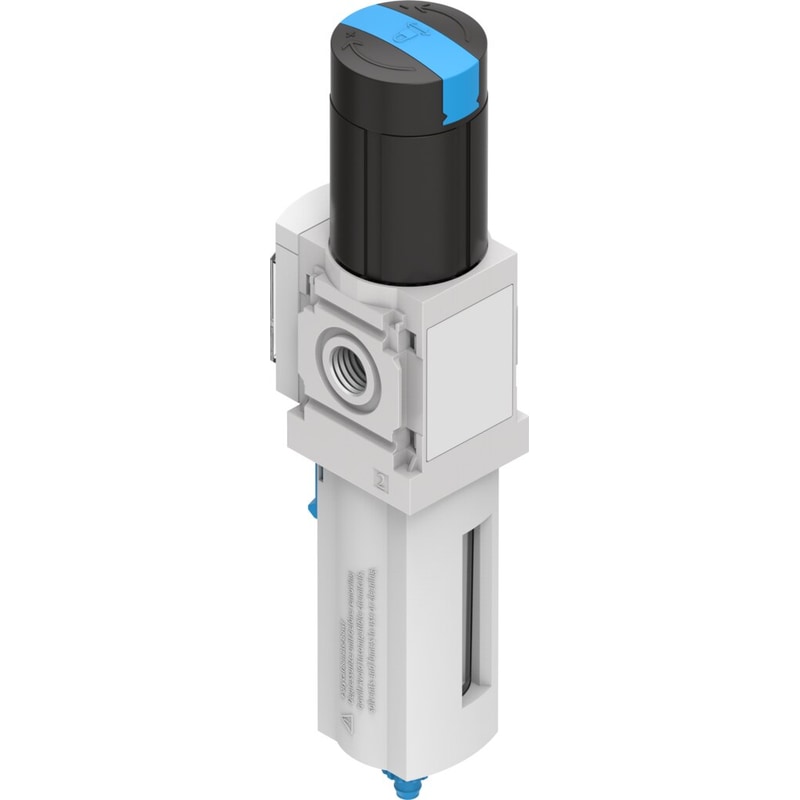

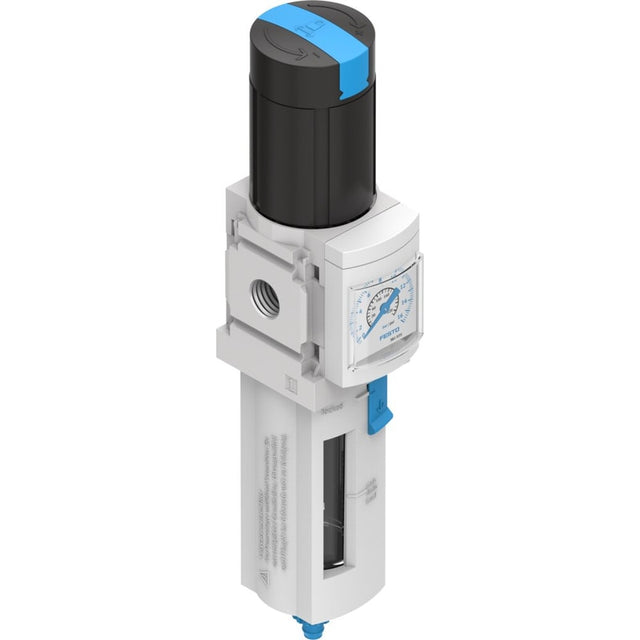

Filter regulator
MS4-LFR-1/4-D7-CRM-AS-Z
529153
GTIN 4052568084875
Vendor Festo
- Pneumatic connection 1
- G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 1200 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 5 µm
Regular price
$71.54
Unit price
MS4-LFR-1/4-D7-CRM-AS-Z is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS4-LFR-1/4-D7-CRM-AS-Z
Regular price
$71.54
Unit price
MS4-LFR-1/4-D7-CRM-AS-Z is backordered and will ship as soon as it is back in stock.
filter regulator MS4-LFR-1/4-D7-CRM-AS-Z 12 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from right to left. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| product type | Filter Regulator |
|---|---|
| Port Size | 1/4" Port Connection |
| pressure range | 0.5-12bar (7.25-174PSI) |
| filtation | 5µm |
| Bowl Type | Plastic Bowl |
| Drain Type | Manual |
| option | Lockable |
