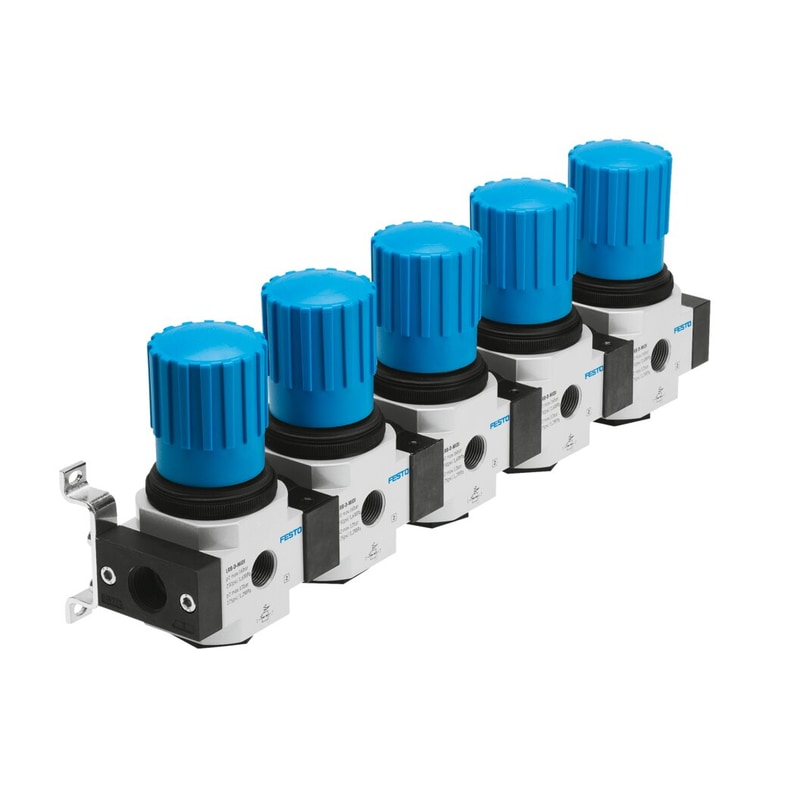

Pressure regulator manifold
LRB-3/8-D-7-O-K5-MIDI
529004
GTIN 4052568163389
Vendor Festo
- Pneumatic connection 1
- G3/8
- Normal nominal flow rate (normalized to DIN 1343)
- 3800 l/min
- Pressure regulation range
- 0.5 bar - 7 bar
- Max. pressure hysteresis
- 0.2 bar
Regular price
$1,074.88
Unit price
LRB-3/8-D-7-O-K5-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LRB-3/8-D-7-O-K5-MIDI
Regular price
$1,074.88
Unit price
LRB-3/8-D-7-O-K5-MIDI is backordered and will ship as soon as it is back in stock.
| Size | Midi |
|---|---|
| Type code | LRB |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Design | Directly controlled diaphragm regulatorwith continuous compressed air supply |
| Controller function | Outlet pressure constantWith primary pressure compensationWith secondary exhausting |

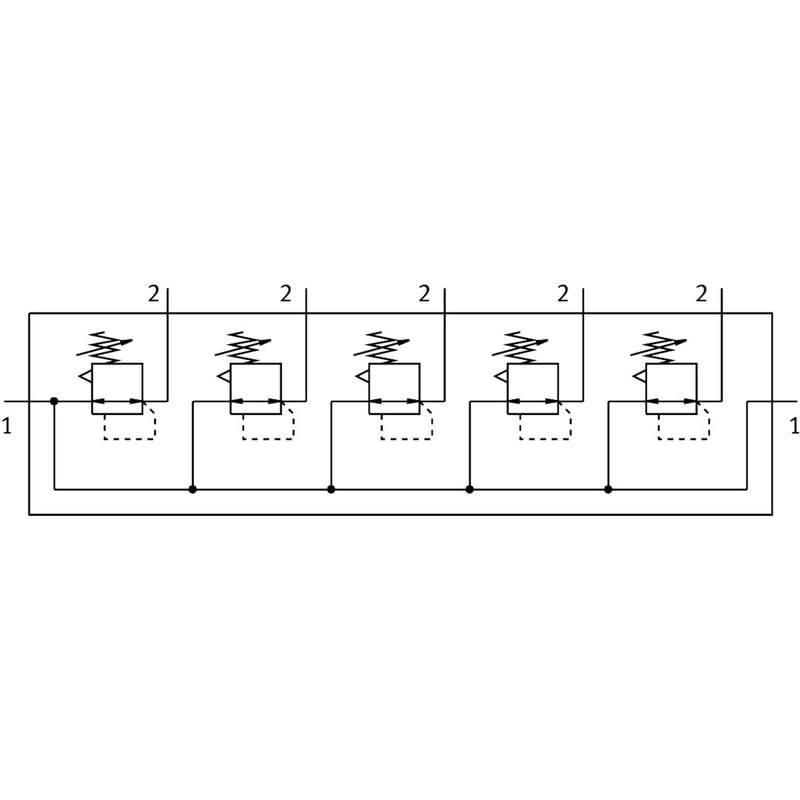

| Symbol | 995334 |
| Pressure gauge | G1/4 prepared |
| Operating pressure | 1 bar ... 16 bar |
| Pressure regulation range | 0.5 bar ... 7 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 3800 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 4828 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Material of sub-base | Die-cast zinc |
| Material of operator panel | PA |
| Housing material | Die-cast zinc |
