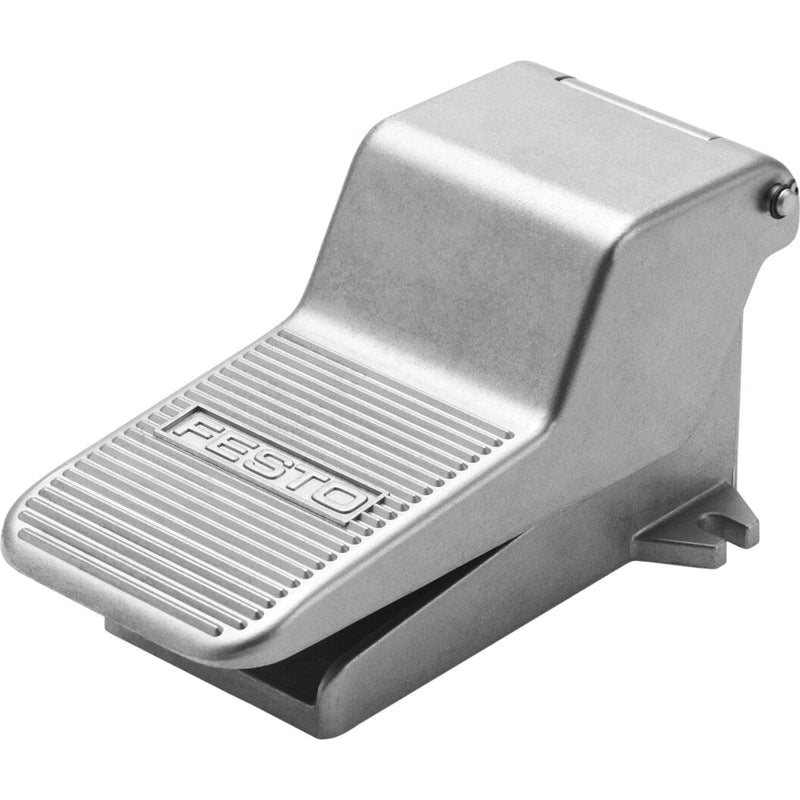

Foot valve with detent
FPB-3-1/4
526984
GTIN 4052568162528
Vendor Festo
Regular price
$446.61
Unit price
FPB-3-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FPB-3-1/4
Regular price
$446.61
Unit price
FPB-3-1/4 is backordered and will ship as soon as it is back in stock.
foot valve with detent FPB-3-1/4 detenting Valve function=3/2 bistable, Type of actuation=manual, Standard nominal flow rate=550 l/min, Operating pressure=-0,95 - 10 bar, Design structure=Poppet seat
| Valve function | 3/2 bistable |
|---|---|
| Type of actuation | manual |
| Standard nominal flow rate | 550 l/min |
| Operating pressure | '-0.95 ... 10 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Nominal size | 7 mm |
| Assembly position | Any |
| Type of piloting | direct |
| Flow direction | non reversible |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force | 31.5 N |
