Pressure gauge
MA-50-0,25-R1/4-MPA-E-RG
526780
GTIN 4052568259525
Vendor Festo
- Type of mounting
- Line installation
- Pneumatic connection
- R1/4
- Measurement accuracy class
- 2.5
Regular price
$39.81
Unit price
Pressure gauge MA-50-0,25-R1/4-MPA-E-RG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MA-50-0,25-R1/4-MPA-E-RG
Regular price
$39.81
Unit price
Pressure gauge MA-50-0,25-R1/4-MPA-E-RG is backordered and will ship as soon as it is back in stock.

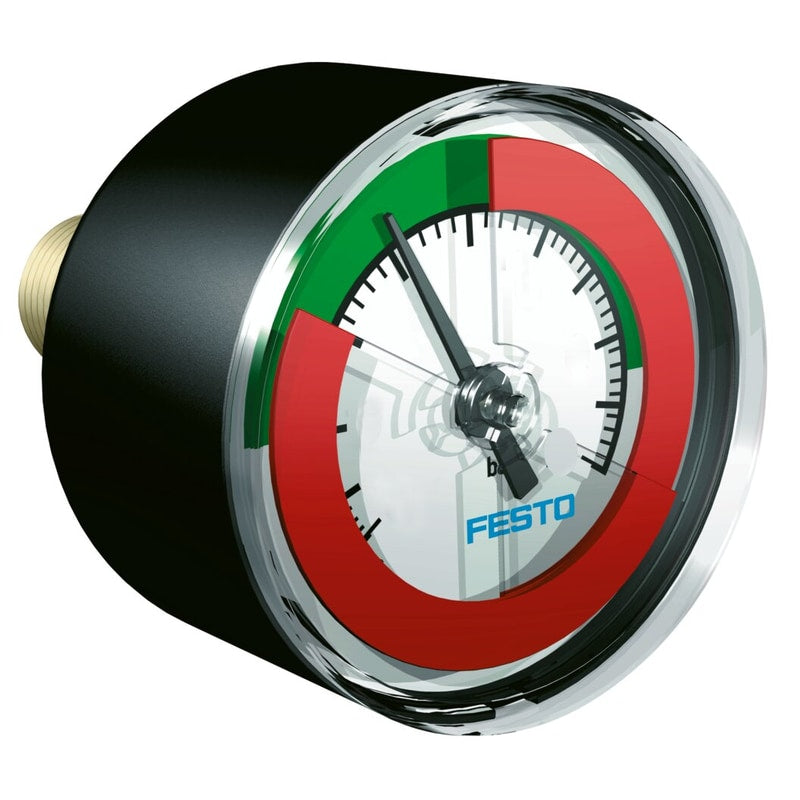

pressure gauge MA-50-0,25-R1/4-MPA-E-RG With display unit in MPa, adjustable red/green range. Indicating range [MPa]=0 - 0,25 MPa, Conforms to standard=EN 837-1, Nominal size of pressure gauge=50, Design structure=Bourdon-tube pressure gauge, Mounting type=Line installation
| Indicating range [MPa] | 0 ... 0.25 MPa |
|---|---|
| Conforms to standard | EN 837-1 |
| Nominal size of pressure gauge | 50 |
| Design structure | Bourdon-tube pressure gauge |
| Mounting type | Line installation |
| Operating medium | Inert gasesNeutral fluids |
| Operating pressure | 0 ... 0.25 MPa |
| Alternating load factor | 0.66 |
| Measurement accuracy class | 2,5 |
| Protection class | IP43 |
| Medium temperature | '-20 ... 60 °C |
| Ambient temperature | '-20 ... 60 °C |
| Materials note | Conforms to RoHS |
