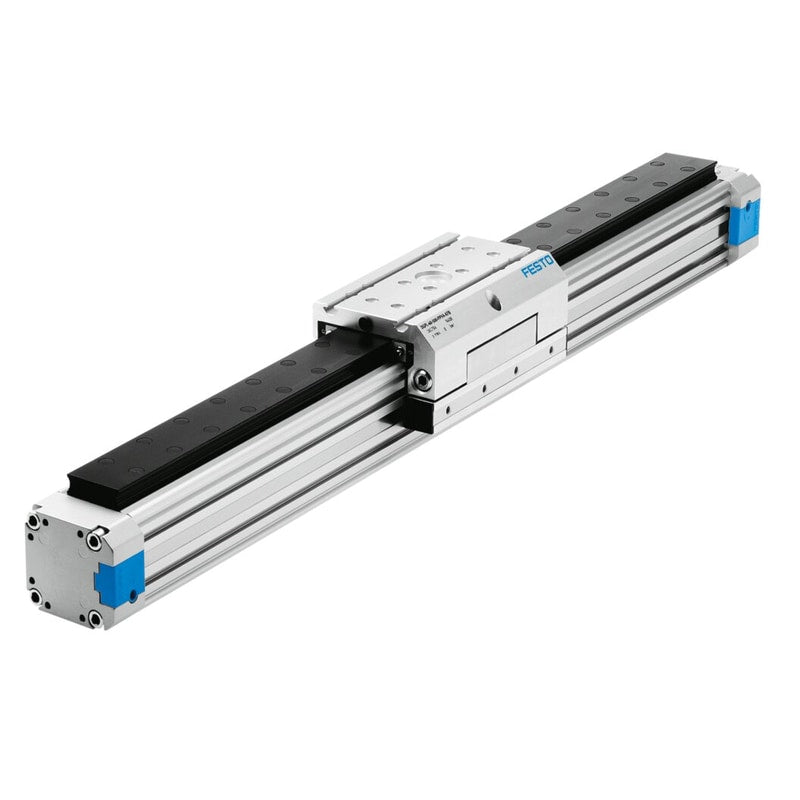

Linear actuator
DGPL-32-250-PPV-A-B-KF
526657
GTIN 4052568162429
Vendor Festo
- Piston diameter
- 32 mm
- Theoretical force at 6 bar, advancing
- 483 N
- Stroke
- 250 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends - Pneumatic shock absorber, hard characteristic curve
- Position sensing
- For proximity sensor
Regular price
$3,972.90
Unit price
DGPL-32-250-PPV-A-B-KF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGPL-32-250-PPV-A-B-KF
Regular price
$3,972.90
Unit price
DGPL-32-250-PPV-A-B-KF is backordered and will ship as soon as it is back in stock.
| Stroke | 250mm |
|---|---|
| Piston diameter | 32 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Driver principle | Positive locking (slot) |
| Position sensing | For proximity sensor |
| Symbol | 00991254 |
| Operating pressure | 0.2MPa |
| Operating pressure | 2bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C |
| Cushioning length | 20mm |
| Theoretical force at 6 bar, retracting | 483N |
| Theoretical force at 6 bar, advancing | 483N |
| Moving mass | 890g |
| Moving mass at 0 mm stroke | 890g |
| Additional moving mass per 10 mm stroke | 69g |
| Basic weight with 0 mm stroke | 2720g |
| Alternative connections | See product drawing |
| Pneumatic connection | G1/8 |
| Cover material | Cast aluminum |
| Seals material | NBR |
| Housing material | Aluminum |
