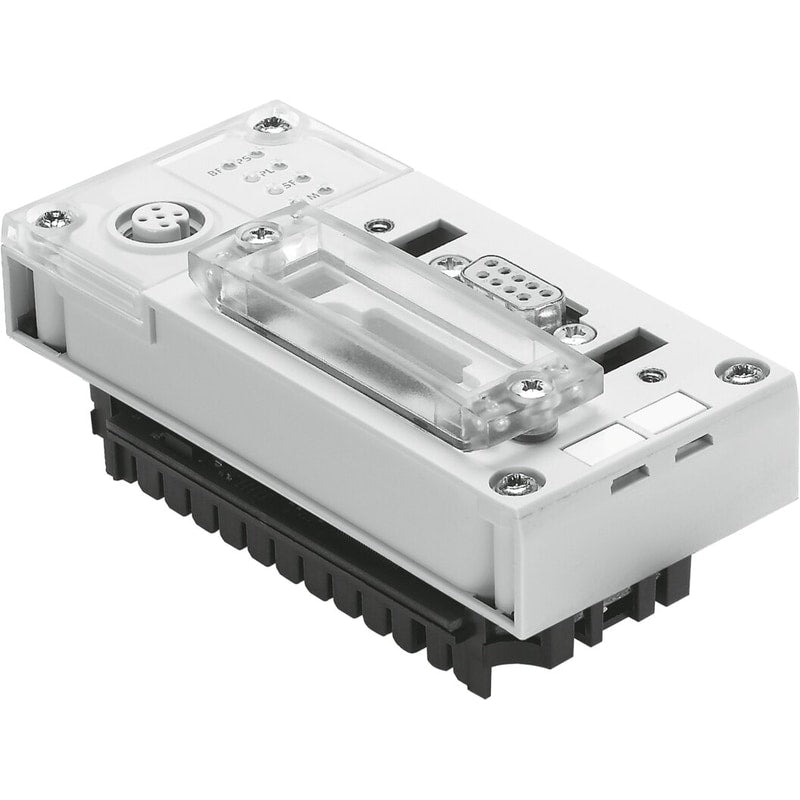

CPX-FB23-24

bus node CPX-FB23-24 for modular electrical terminal CPX. Dimensions W x L x H=(* (including interlinking block), * 50 mm x 107 mm x 50 mm), Fieldbus interface=(* Sub-D socket, 9-pin, * Sub-D plug, for self-assembly, * Screw terminal strip, IP20), Device-specific diagnostics=(* Channel and module-orientated diagnostics, * - Undervoltage of modules, * - Diagnostic memory), Parameters configuring=(* - Diagnostic behaviour, * - Failsafe response, * - Forcing of channels, * - Signal setup, * - System parameter), Additional functions=(* System status can be represented using process data, * Additional diagnostics interface for operator units)

Dimensions W x L x H	(including interlinking block)50 mm x 107 mm x 50 mm
Fieldbus interface	Sub-D socket, 9-pinSub-D plug, for self-assemblyScrew terminal strip, IP20
Device-specific diagnostics	Channel and module-orientated diagnostics- Undervoltage of modules- Diagnostic memory
Parameters configuring	'- Diagnostic behaviour- Failsafe response- Forcing of channels- Signal setup- System parameter
Additional functions	System status can be represented using process dataAdditional diagnostics interface for operator units
Control elements	DIL switches
Baud rate	156 ... 10000 kBit/s
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typ. 70 mA
Nominal operating voltage DC	24 V
Corrosion resistance classification CRC	1 - Low corrosion stress
Storage temperature	'-20 ... 70 °C
Protection class	IP65IP67
