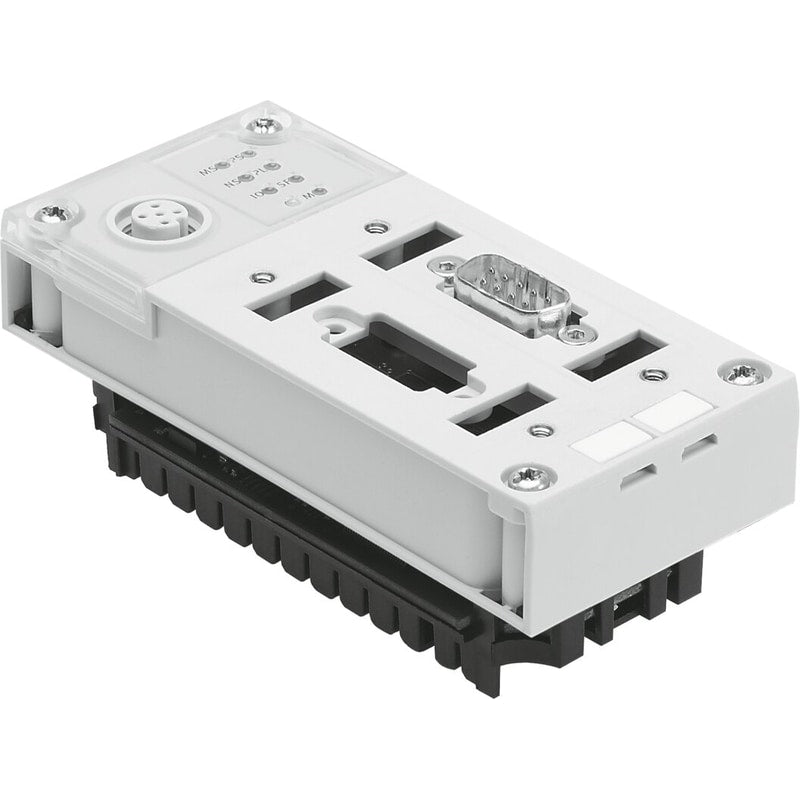

CPX-FB11

bus node CPX-FB11 for modular electrical terminal CPX. Dimensions W x L x H=(* (including interlinking block), * 50 mm x 107 mm x 50 mm), Fieldbus interface=(* Sub-D socket, 9-pin, * Sub-D plug, for self-assembly, * MicroStyle: 2x M12x1, 5-pin, * OpenStyle: 5-pin terminal strip), Device-specific diagnostics=(* Channel and module-orientated diagnostics, * - Undervoltage of modules, * - Diagnostic memory), Communication types=(* Change of State, * Cyclic, * Explicit Message, * Polled I/O, * Strobbed I/O), Configuration support=EDS file

Dimensions W x L x H	(including interlinking block)50 mm x 107 mm x 50 mm
Fieldbus interface	Sub-D socket, 9-pinSub-D plug, for self-assemblyMicroStyle: 2x M12x1, 5-pinOpenStyle: 5-pin terminal strip
Device-specific diagnostics	Channel and module-orientated diagnostics- Undervoltage of modules- Diagnostic memory
Communication types	Change of StateCyclicExplicit MessagePolled I/OStrobbed I/O
Configuration support	EDS file
Parameters configuring	'- Diagnostic behaviour- Failsafe response- Forcing of channels- Idle mode characteristics- Signal setup- System parameter
Additional functions	'- Acyclic data access via "Explicit Message"Channel-oriented diagnostics via fieldbusQuickconnectStart-up parameterisation in normal text via fieldbusSystem status can be represented using process dataAdditional diagnostics interface for operator units
Control elements	DIL switches
Baud rate	125, 250, 500 kBit/s
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typ. 200 mA
Nominal operating voltage DC	24 V
Corrosion resistance classification CRC	1 - Low corrosion stress
