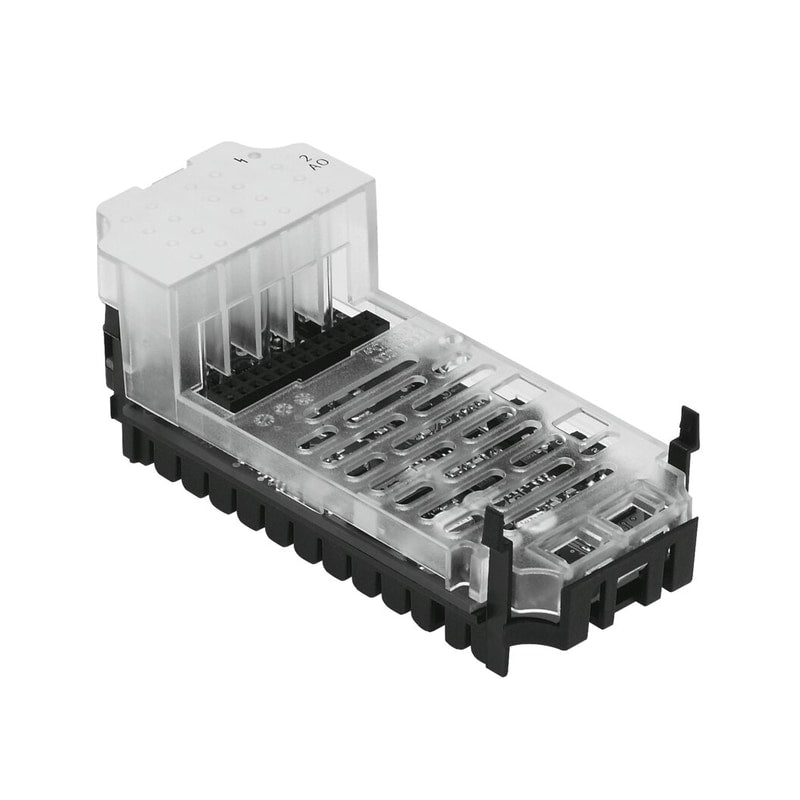

CPX-2AA-U-I

analogue module CPX-2AA-U-I for modular electrical terminal CPX, 2 outputs. Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 50 mm), No. of outputs=2, Diagnosis=(* - Wire break per channel, * - Limit value violation per channel, * - Short circuit output signal per channel, * - Short circuit actuator supply, * - Parameterisation error, * - Undervoltage of outputs), Parameters configuring=(* - Data format, * Failsafe per channel, * Forces per channel, * - Limit monitoring/channel, * Idle mode per channel, * - Measured value smoothing, * - Signal range per channel, * - Behaviour after short circuit, * Monitoring of wire break/channel), LED displays=- 1 Group diagnosis

Dimensions W x L x H	(incl. interlinking block and connection technology)50 mm x 107 mm x 50 mm
No. of outputs	2
Diagnosis	'- Wire break per channel- Limit value violation per channel- Short circuit output signal per channel- Short circuit actuator supply- Parameterisation error- Undervoltage of outputs
Parameters configuring	'- Data formatFailsafe per channelForces per channel- Limit monitoring/channelIdle mode per channel- Measured value smoothing- Signal range per channel- Behaviour after short circuitMonitoring of wire break/channel
LED displays	'- 1 Group diagnosis
Internal cycle time	4 ms
Repetition accuracy	0.05% at 25º C
Protection (short circuit)	Internal electronic fuse
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typ. 100 mA
Operating error limit related to the ambient temperature range	'+/- 0,6 %
Basic error limit at 25°C	'+/- 0,5 %
Nominal operating voltage DC	24 V
