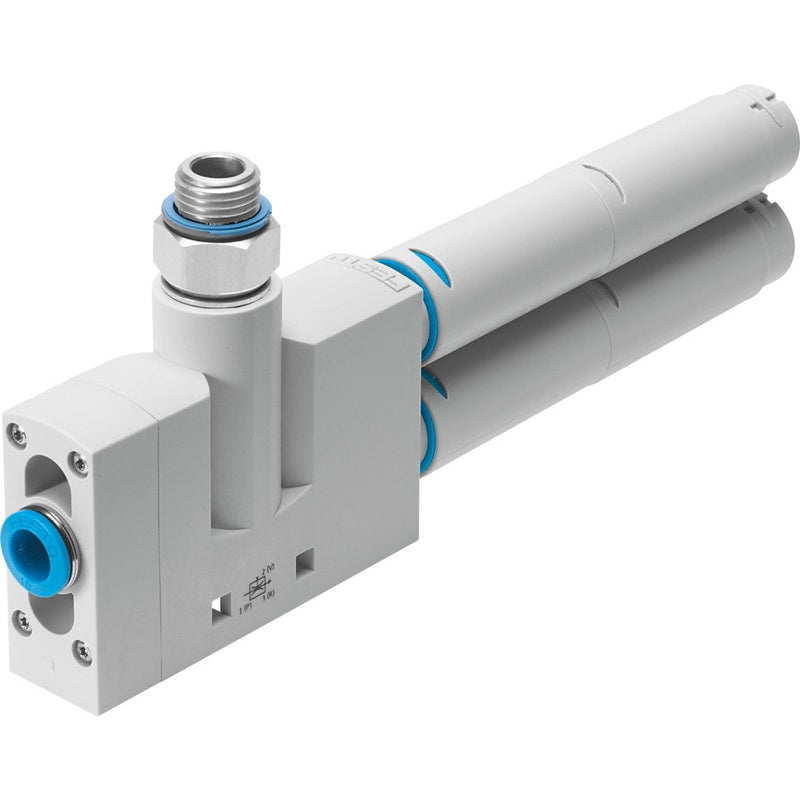

Vacuum generator
VN-20-L-T6-PQ4-VA5-RO2
526135
GTIN 4052568162276
Vendor Festo
- Nominal width of Laval nozzle
- 2 mm
- Max. suction rate with respect to atmosphere
- 188 l/min
Regular price
$245.46
Unit price
VN-20-L-T6-PQ4-VA5-RO2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-20-L-T6-PQ4-VA5-RO2
Regular price
$245.46
Unit price
VN-20-L-T6-PQ4-VA5-RO2 is backordered and will ship as soon as it is back in stock.
vacuum generator VN-20-L-T6-PQ4-VA5-RO2 Standard, high suction rate, width 24 mm, T shape with push-in connector and open silencer Vacuum connection with male thread. Nominal size, Laval nozzle=2 mm, Grid dimension=24 mm, Design, silencer=open, Assembly position=Any, Ejector characteristic=(* High suction flow rate, * Standard)
| Nominal size, Laval nozzle | 2 mm |
|---|---|
| Grid dimension | 24 mm |
| Design, silencer | open |
| Assembly position | Any |
| Ejector characteristic | High suction flow rateStandard |
| Integrated function | Open silencer |
| Design structure | T-shaped |
| Operating pressure for max. suction rate | 3 bar |
| Operating pressure | 1 ... 8 bar |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 188 l/min |
| Air supply time at nominal operating pressure | 0.15 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
