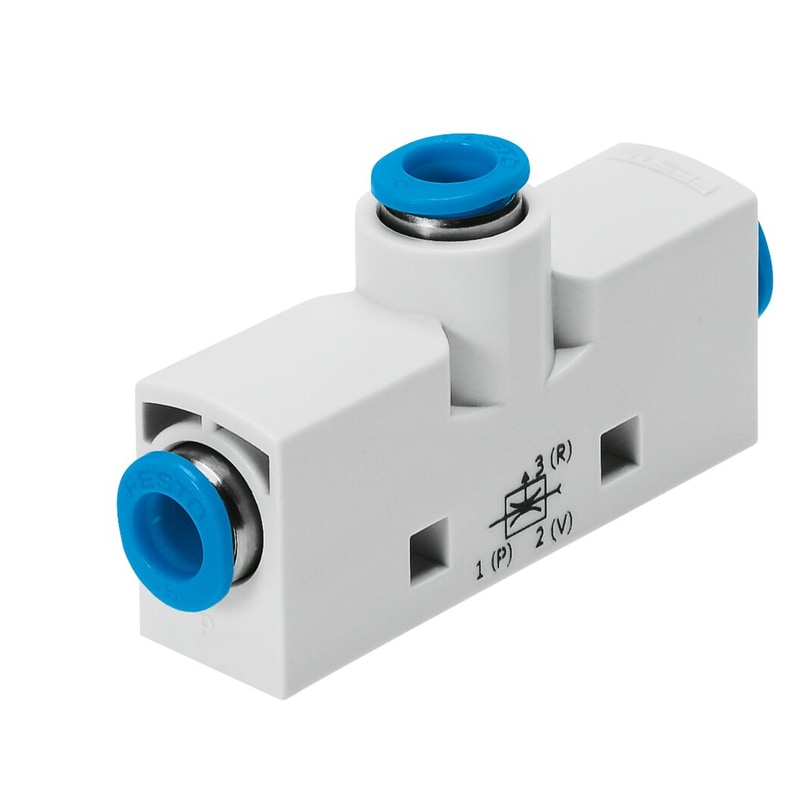

Vacuum generator
VN-07-M-T2-PQ1-VQ1-RQ1
526107
GTIN 4052568083595
Vendor Festo
- Nominal width of Laval nozzle
- 0.7 mm
- Max. vacuum
- 86 %
- Max. suction rate with respect to atmosphere
- 13.5 l/min
Regular price
$54.65
Unit price
VN-07-M-T2-PQ1-VQ1-RQ1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-07-M-T2-PQ1-VQ1-RQ1
Regular price
$54.65
Unit price
VN-07-M-T2-PQ1-VQ1-RQ1 is backordered and will ship as soon as it is back in stock.
vacuum generator VN-07-M-T2-PQ1-VQ1-RQ1 In-line, high vacuum, width 10 mm, with plug connector. Nominal size, Laval nozzle=0,7 mm, Grid dimension=10 mm, Assembly position=Any, Ejector characteristic=(* High vacuum, * Inline), Design structure=T-shaped
| Nominal size, Laval nozzle | 0.7 mm |
|---|---|
| Grid dimension | 10 mm |
| Assembly position | Any |
| Ejector characteristic | High vacuumInline |
| Design structure | T-shaped |
| Operating pressure for max. suction rate | 7 bar |
| Operating pressure | 1 ... 8 bar |
| Operating pressure for max. vacuum | 5.8 bar |
| Max. vacuum | 0.86 |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 13.5 l/min |
| Air supply time at nominal operating pressure | 2.1 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
