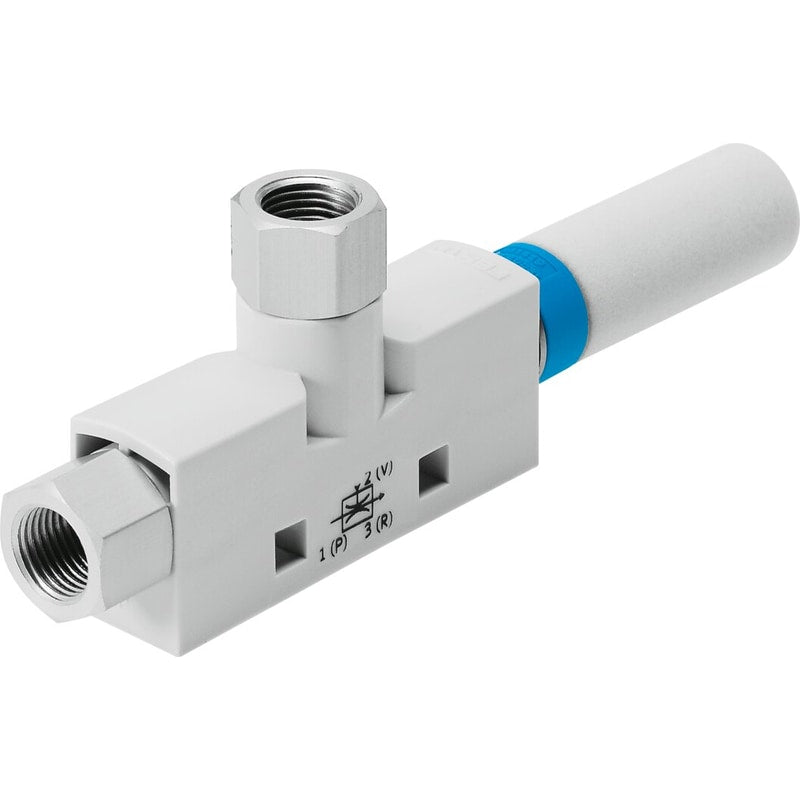

Vacuum generator
VN-05-H-T2-PI2-VI2-RO1
526104
GTIN 4052568083564
Vendor Festo
- Nominal width of Laval nozzle
- 0.45 mm
- Max. vacuum
- 88 %
- Max. suction rate with respect to atmosphere
- 6.2 l/min
Regular price
$61.55
Unit price
VN-05-H-T2-PI2-VI2-RO1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-05-H-T2-PI2-VI2-RO1
Regular price
$61.55
Unit price
VN-05-H-T2-PI2-VI2-RO1 is backordered and will ship as soon as it is back in stock.
vacuum generator VN-05-H-T2-PI2-VI2-RO1 Standard, high vacuum width 10 mm, T shape with female thread and open silencer. Nominal size, Laval nozzle=0,45 mm, Grid dimension=10 mm, Design, silencer=open, Assembly position=Any, Ejector characteristic=(* High vacuum, * Standard)
| Nominal size, Laval nozzle | 0.45 mm |
|---|---|
| Grid dimension | 10 mm |
| Design, silencer | open |
| Assembly position | Any |
| Ejector characteristic | High vacuumStandard |
| Integrated function | Open silencer |
| Design structure | T-shaped |
| Operating pressure for max. suction rate | 2.1 bar |
| Operating pressure | 1 ... 8 bar |
| Operating pressure for max. vacuum | 4.5 bar |
| Max. vacuum | 0.88 |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 6.2 l/min |
