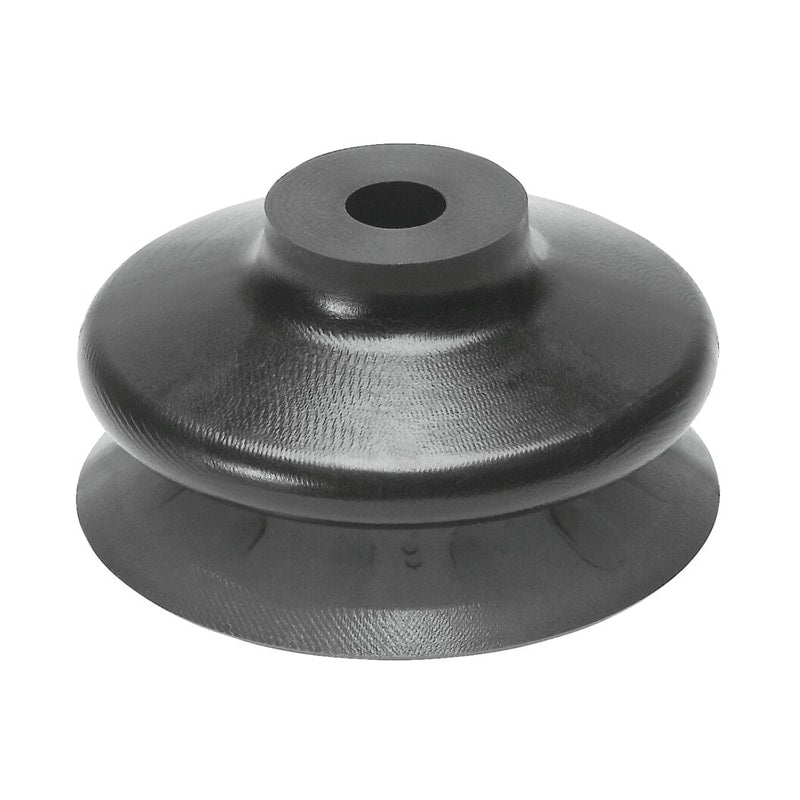

Vacuum cup without connector
ESV-50-BT
526007
GTIN 4052568083335
Vendor Festo
- Suction cup diameter
- 50 mm
- Suction cup shape
- Round bellows, 1.5 convolutions
- Structural design
- Bellows
- Suction cup material
- Vulkollan®
Regular price
$53.47
Unit price
ESV-50-BT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESV-50-BT
Regular price
$53.47
Unit price
ESV-50-BT is backordered and will ship as soon as it is back in stock.
vacuum suction cup ESV-50-BT Wearing part, easily replaceable Height compensator for suction-cup holder=10 mm, Min. workpiece radius=40 mm, suction cup diameter=50 mm, suction cup volume=17,6 cm3, Assembly position=Any
| Height compensator for suction-cup holder | 10 mm |
|---|---|
| Min. workpiece radius | 40 mm |
| suction cup diameter | 50 mm |
| suction cup volume | 17.6 cm3 |
| Assembly position | Any |
| Design structure | Bellows |
| Suction cup shape | Round, bellows 1.5 conv |
| Operating pressure | '-0.95 ... 0 bar |
| Nominal operating pressure | '-0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Ambient temperature | '-10 ... 80 °C |
| Breakaway force at 70% vacuum | 100 N |
| Retention force at nominal operating pressure | 100 N |
