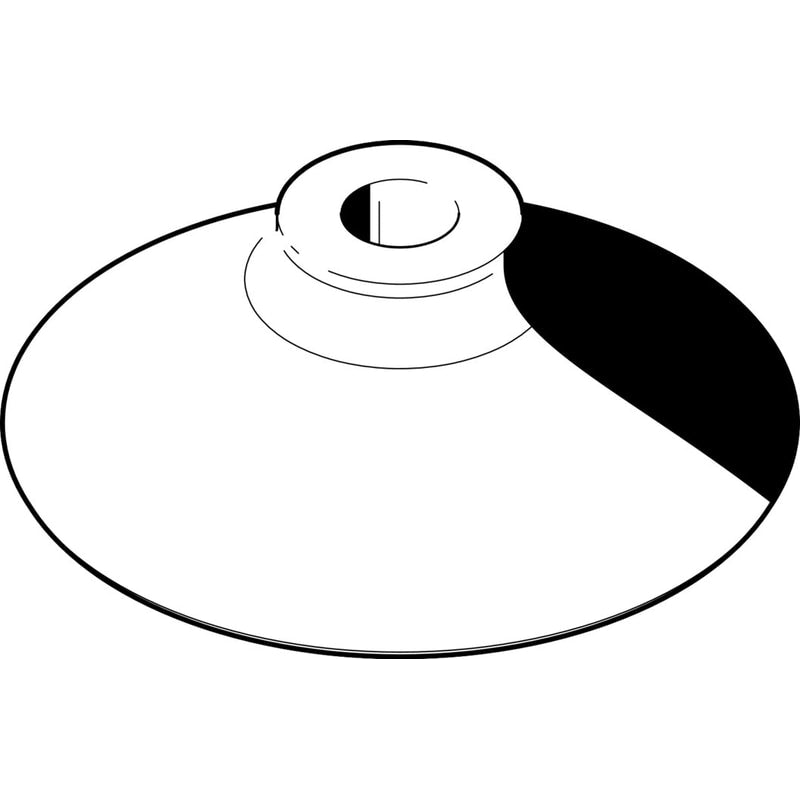

Vacuum cup without connector
ESV-80-GT
526004
GTIN 4052568046828
Vendor Festo
- Suction cup diameter
- 80 mm
- Suction cup shape
- Round, deep
- Structural design
- Round, bell-shaped
- Suction cup material
- Vulkollan®
Regular price
$45.51
Unit price
ESV-80-GT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESV-80-GT
Regular price
$45.51
Unit price
ESV-80-GT is backordered and will ship as soon as it is back in stock.
| Suction cup holder height compensator | 7.5 mm |
|---|---|
| Min. workpiece radius | 100 mm |
| Suction cup diameter | 80 mm |
| Suction cup volume | 28.6 cm³ |
| Type code | ESV |
| Mounting position | Any |
| Design | Round, bell-shaped |
| Symbol | 991485 |
| Suction cup shape | Round, deep |
| Operating pressure | -0.95 bar ... 0 bar |
| Nominal operating pressure | -0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Ambient temperature | -10 °C ... 80 °C |
| Breakaway force at 70% vacuum | 245 N |
| Holding force at nominal operating pressure | 245 N |
| Lateral force at nominal operating pressure | 99 N |
| Product weight | 30.9 g |
| Type of mounting | Via vacuum connection |
| Color | Reddish brown |
| Shore hardness | 72 +/- 5 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Suction cup material | Vulkollan® |
