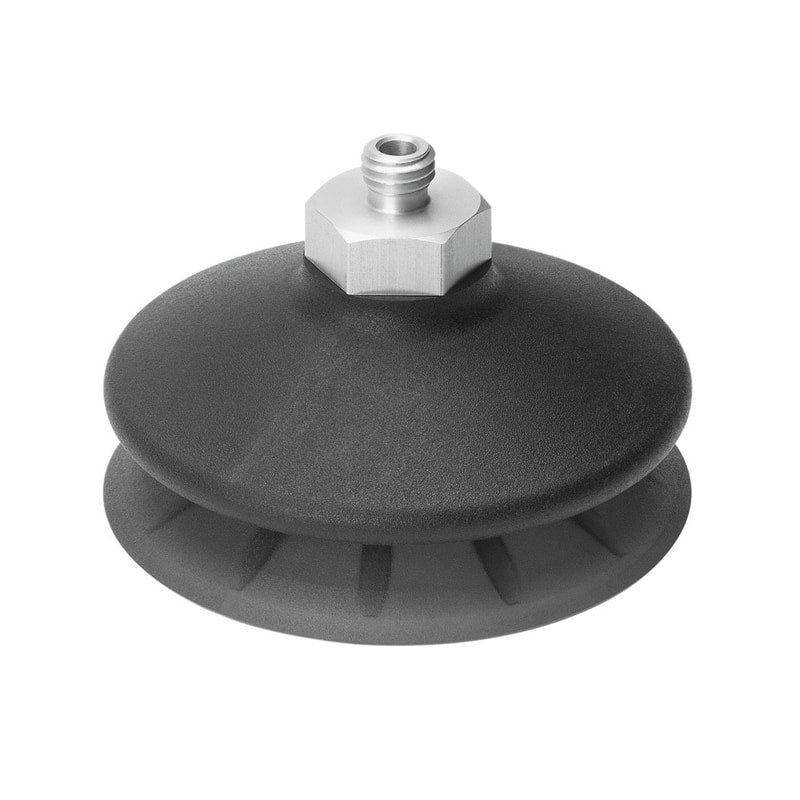

Vacuum suction cup
ESS-80-BT-M10
525997
GTIN 4052568083281
Vendor Festo
- Suction cup diameter
- 80 mm
- Suction cup shape
- Round bellows, 1.5 convolutions
- Suction cup material
- Vulkollan®
Regular price
$103.65
Unit price
ESS-80-BT-M10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESS-80-BT-M10
Regular price
$103.65
Unit price
ESS-80-BT-M10 is backordered and will ship as soon as it is back in stock.
suction cup ESS-80-BT-M10 easily interchangeable, Height compensator for suction-cup holder=10,5 mm, Min. workpiece radius=100 mm, Nominal size=2,5 mm, suction cup diameter=80 mm, suction cup volume=59,1 cm3
| Height compensator for suction-cup holder | 10.5 mm |
|---|---|
| Min. workpiece radius | 100 mm |
| Nominal size | 2.5 mm |
| suction cup diameter | 80 mm |
| suction cup volume | 59.1 cm3 |
| Assembly position | Any |
| Correlation to suction-cup holder | Size 5 |
| Suction cup shape | Round, bellows 1.5 conv |
| Operating pressure | '-0.95 ... 0 bar |
| Nominal operating pressure | '-0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
