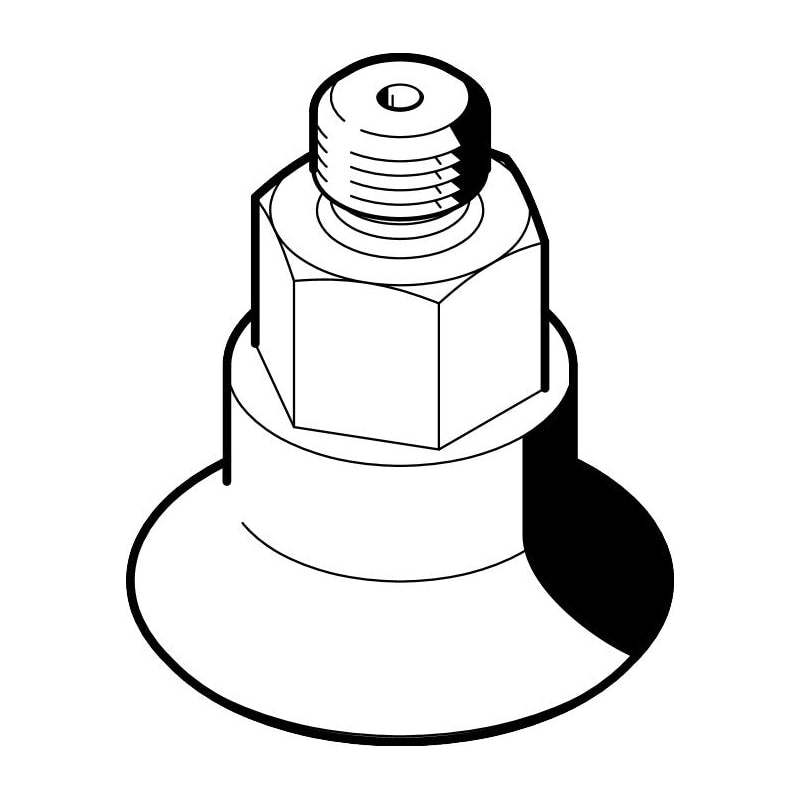

Vacuum suction cup
ESS-40-GT-M10
525973
GTIN 4052568046712
Vendor Festo
- Suction cup diameter
- 40 mm
- Suction cup shape
- Round, deep
- Suction cup material
- Vulkollan®
Regular price
$42.60
Unit price
ESS-40-GT-M10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESS-40-GT-M10
Regular price
$42.60
Unit price
ESS-40-GT-M10 is backordered and will ship as soon as it is back in stock.
| Suction cup holder height compensator | 5.5 mm |
|---|---|
| Min. workpiece radius | 35 mm |
| Nominal width | 2.5 mm |
| Suction cup diameter | 40 mm |
| Suction cup volume | 5.4 cm³ |
| Mounting position | Any |
| Symbol | 00991485 |
| Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, deep |
| Operating pressure | -0.95 bar ... 0 bar |
| Nominal operating pressure | -0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -10 °C ... 80 °C |
| Holding force at nominal operating pressure | 64 N |
| Lateral force at nominal operating pressure | 20 N |
| Product weight | 15 g |
| Type of mounting | Via vacuum connection |
| Vacuum connection | M10 |
| Color | Reddish brown |
| Shore hardness | 72 +/- 5 |
| Material of screwed trunnion | Wrought aluminum alloy |
| Note on materials | Free of copper and PTFE RoHS-compliant |
| Suction cup material | Vulkollan® |
