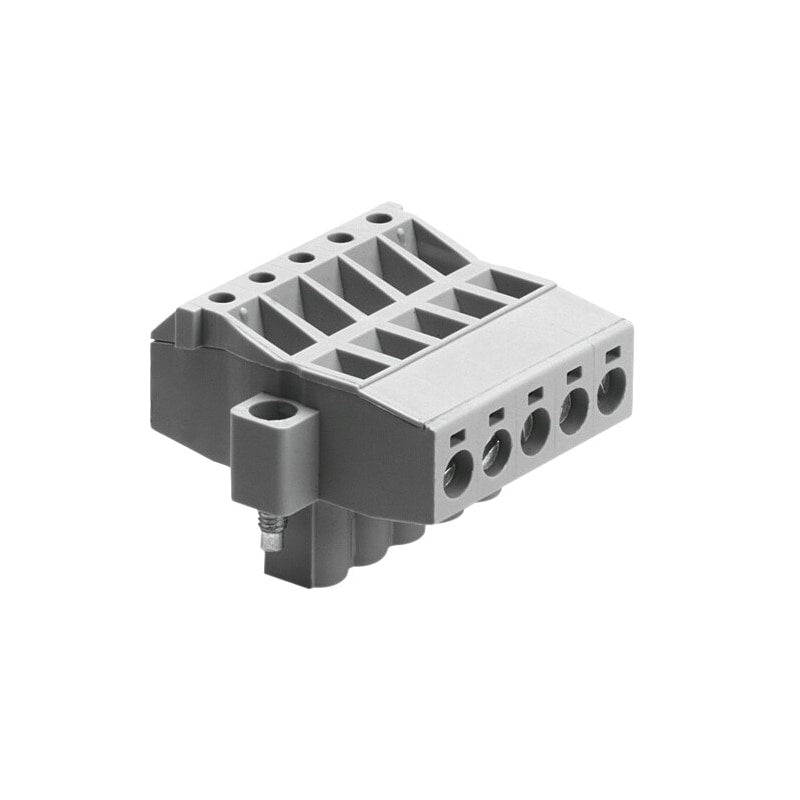

Bus connection
FBSD-KL-2X5POL
525635
GTIN 4052568046453
Vendor Festo
- Electrical connection
- 5-pin/5-pin - Angled socket/screw terminal
- Connection cross section
- 0.2 mm² - 2.5 mm²
- Degree of protection
- IP20
Regular price
$24.26
Unit price
FBSD-KL-2X5POL is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FBSD-KL-2X5POL
Regular price
$24.26
Unit price
FBSD-KL-2X5POL is backordered and will ship as soon as it is back in stock.
| Type code | FBSD |
|---|---|
| Type of mounting | With through-hole |
| Product weight | 20 g |
| Electrical connection | 5-pin/5-pinAngled socket/screw terminal |
| DC operating voltage range | ≤ 24 V |
| Current rating | 0 |
| Connection cross section | 0.2 mm² ... 2.5 mm² |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| Housing material | PA |
| Housing colour | Black |
| Material of pin contacts | Gold-platedBronze |
| Mounting position | Any |
