Servo motor

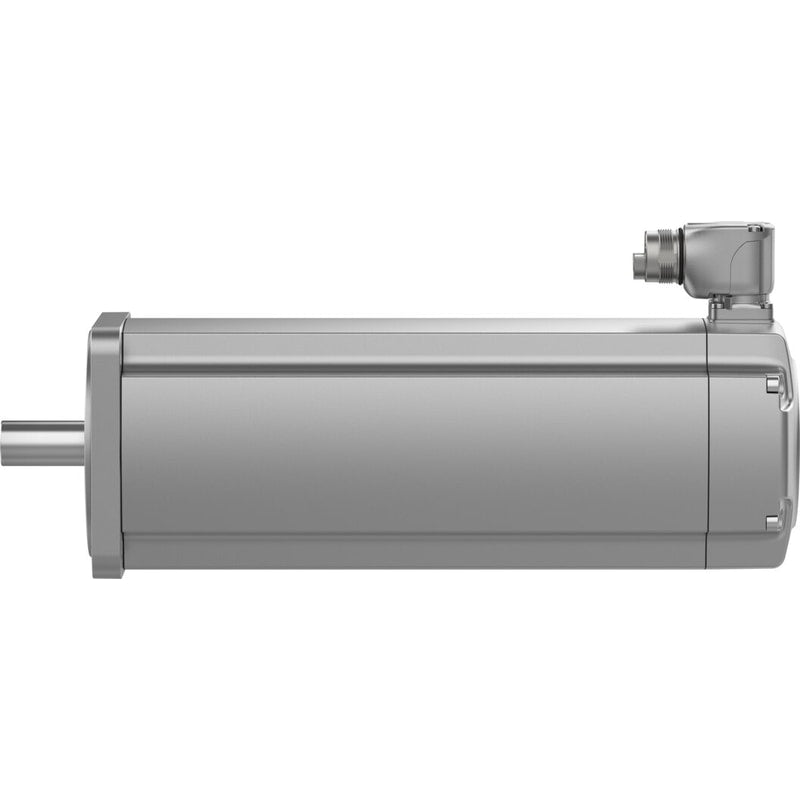

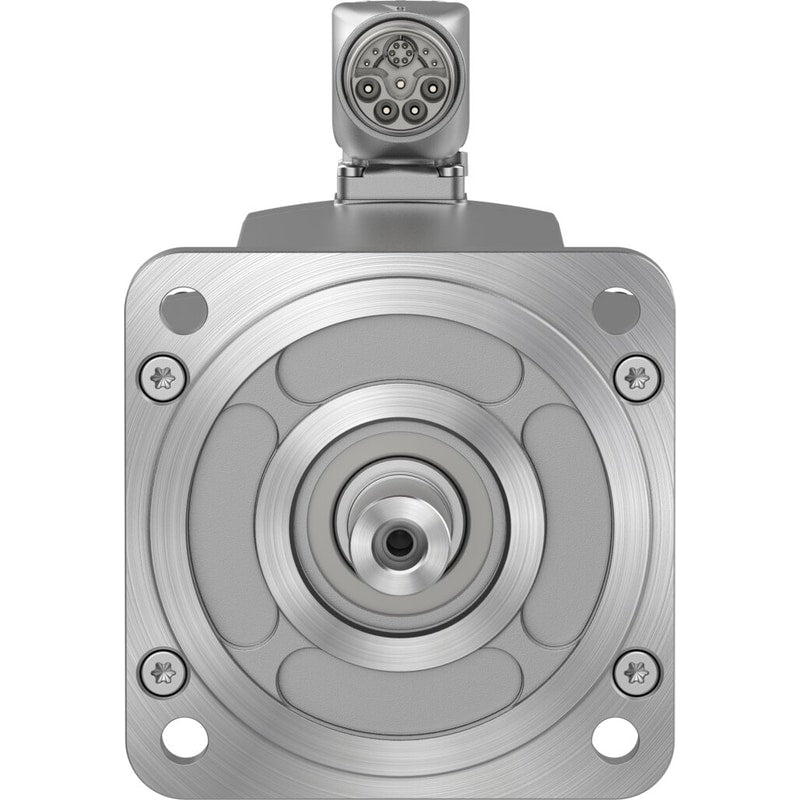

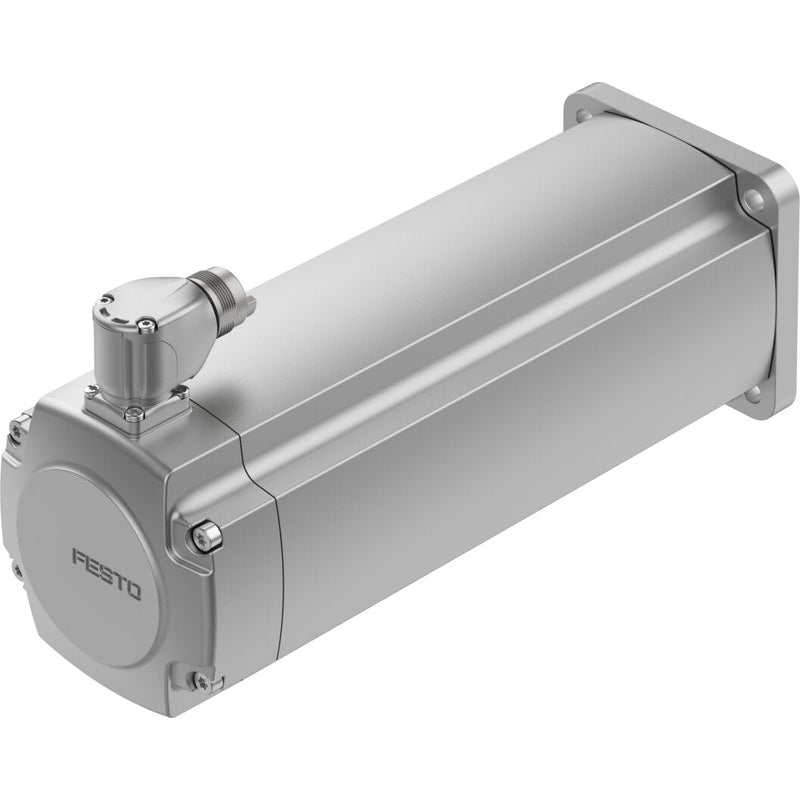

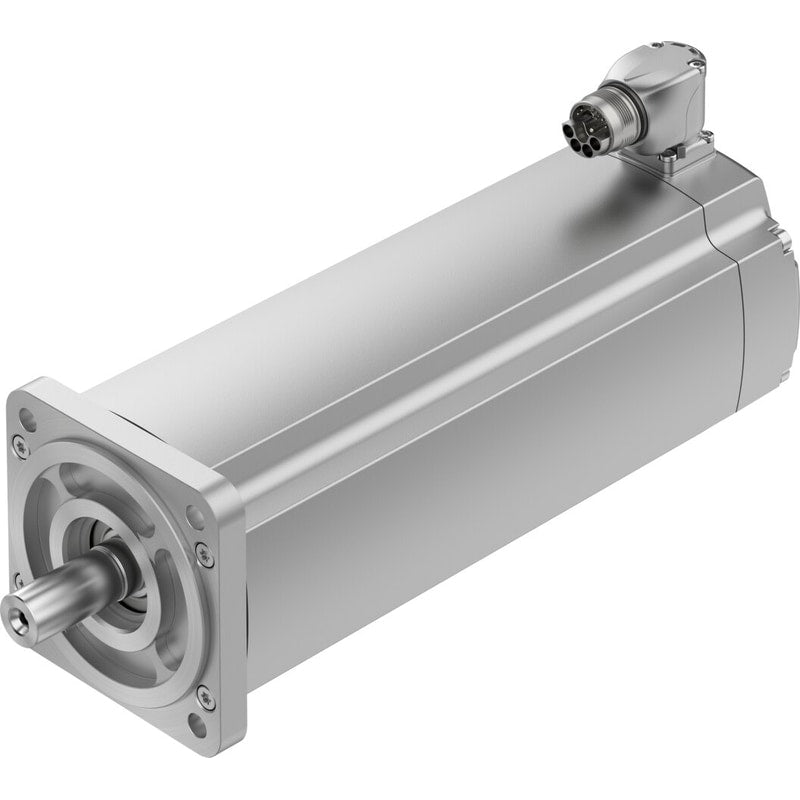

EMMT-AS-100-L-HS-RSB
5255536
Vendor Festo
- Nominal operating voltage DC
- 680 V
- Motor nominal power
- 1870 W
- Stall torque
- 10.4 Nm
- Max. rotational speed
- 4530 1/min
Regular price
$2,334.32
Unit price
EMMT-AS-100-L-HS-RSB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMMT-AS-100-L-HS-RSB
Regular price
$2,334.32
Unit price
EMMT-AS-100-L-HS-RSB is backordered and will ship as soon as it is back in stock.
| Electrical connection 1, connection technology | M23x1 |
|---|---|
| Electrical connection 1, connection type | Hybrid plug |
| Concentricity, coaxiality, axial runout according to DIN SPEC 42955 | N |
| Electrical connection for input 1, connection pattern | 00995913 |
| Detent torque | < 1.0% of peak torque |
| Mounting position | Any |
| Rotor position sensor for manufacturer designation | ECI 1319 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Information on max. installation height | with 1,000 m and longer only with derating of -1.0% per 100 m |
| Note on degree of protection | IP40 for motor shaft without rotary shaft seal IP65 for motor shaft with rotary shaft seal IP67 for motor housing, incl. connection technology |
| Contamination level | 2 |
| Note on ambient temperature | Up to 80 °C with derating of -2.25% per degree Celsius |
| Measuring flange | 300 x 300 x 20 mm, steel |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Balancing quality | G 2.5 |
| Motor type as per EN 60034-7 | IM B5 IM V1 IM V3 |
| Certificate issuing authority | UL E342973 |
| Electrical connection 1, number of pins/wires | 15 |
| Max. winding temperature | 155 °C |
| Brake airflow | 0.73 A |
| Max. brake no-load speed | 10000 1/min |
| Max. installation height | 4000 m |
| Rotor position encoder for DC operating voltage | 5 V |
| Brake coil inductivity | 900 mH |
| Brake coil resistance | 24 Ohm |
| Brake current consumption | 1 A |
| Max. mechanical speed | 13000 1/min |
| Brake stopping current | 0.73 A |
| Number of pole pairs | 5 |
| Storage lifetime, under nominal conditions | 20000 h |
| Brake closing time | ≤ 40 ms |
| Max. brake friction work | 15000 J |
| Brake separation time | ≤ 80 ms |
| Electric time constant | 15.8 ms |
| DC brake response delay | ≤ 5 ms |
| Cross inductivity Lq (phase) | 11.8 mH |
| Winding longitudinal inductivity Ld (phase) | 8.7 mH |
| Rotor position encoder for DC operating voltage range | 3.6 V ... 14 V |
| Standstill torque constant | 1.75 Nm/A |
| Rotor position encoder for absolutely detectable revolutions | 1 |
| Rotor position encoder system accuracy angle measurement | -65 arcsec ... 65 arcsec |
| Thermal resistance | 0.46 K/W |
| Rotor position encoder for positional values per revolution | 524288 |
| Thermal time constant | 71 min |
| Type code | EMMT-AS |
| Rotor position sensor | Absolute encoder, single-turn |
| Rotor position sensor interface | EnDat® 22 |
| Rotor position sensor measuring principle | Inductive |
| Temperature monitoring | Digital motor temperature transmission via EnDat® 2.2 |
| Max. rotational speed | 3770 1/min |
| Nominal rotary speed | 2700 1/min |
| Brake DC operating voltage | 24 V |
| Continuous stall current | 6.7 A |
| Brake power consumption | 24 W |
| Motor constants | 1.54 Nm/A |
| Nominal operating voltage DC | 565 V |
| Motor nominal power | 1870 W |
| Motor nominal current | 4.3 A |
| Rotor position sensor resolution | 19 bit |
| Phase-phase winding resistance | 1.49 Ohm |
| Winding inductance phase-phase | 15.7 mH |
| Type of winding switch | Star inside |
| Peak current | 28.6 A |
| Voltage constant, phase-to-phase | 106 mVmin |
| Rating class according to EN 60034-1 | S1 |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | 0 - 90 % |
| Degree of protection | IP40 |
| Ambient temperature | -15 °C ... 40 °C |
| Thermal class according to EN 60034-1 | F |
| Certification | RCM compliance mark c UL us - Recognized (OL) |
| Total output inertia moment | 8.06 kgcm² |
| Brake holding torque | 18 Nm |
| Brake mass moment of inertia | 2.15 kgcm² |
| Nominal torque | 6.6 Nm |
| Peak torque | 30.5 Nm |
| Stall torque | 10.4 Nm |
| Permissible axial shaft load | 200 N |
| Permissible radial shaft load | 1110 N |
| MTTF, subcomponent | 190 years, rotor position sensor |
| MTTFd, subcomponent | 380 years, rotor position sensor |
| Switching cycles, holding brake | 10 million idle actuations (without friction work!) |
| Product weight | 10100 g |
| Interface code, motor out | 100A |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Conforms to standard | IEC 60034 |
