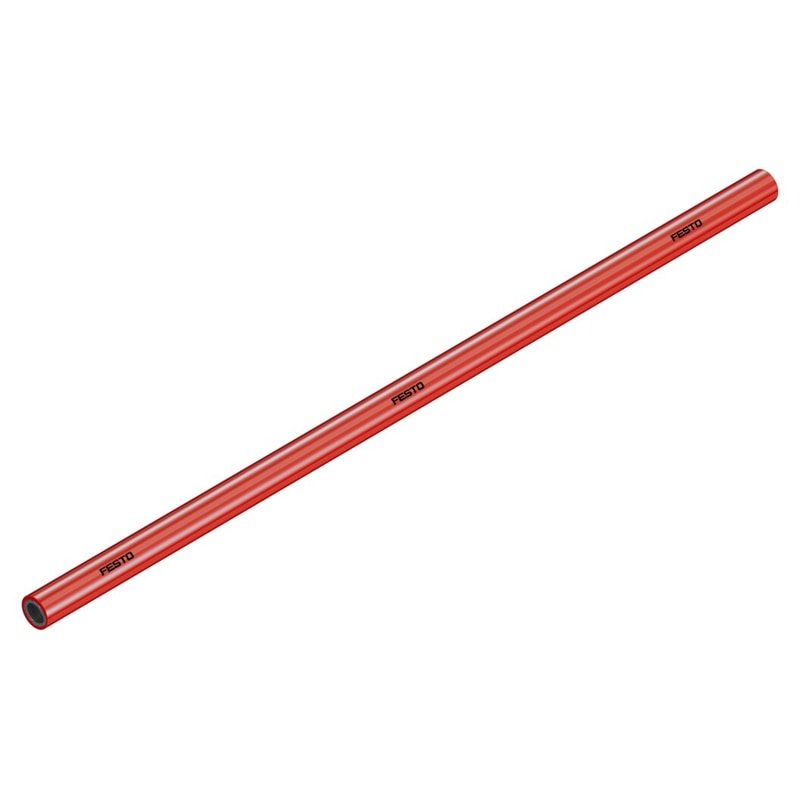

Plastic tubing
PAN-V0-6X1-RT
525474
GTIN 4052568046286
Vendor Festo
- Outside diameter
- 8 mm
- Inside diameter
- 4 mm
- Temperature-dependent operating pressure
- -0.95 bar - 12 bar
- Ambient temperature
- -30 °C - 90 °C
Regular price
$10.79
Unit price
PAN-V0-6X1-RT Plastic tubing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PAN-V0-6X1-RT
Regular price
$10.79
Unit price
PAN-V0-6X1-RT Plastic tubing is backordered and will ship as soon as it is back in stock.
| Outside diameter | 8 mm |
|---|---|
| Bending radius relevant for flow rate | 30 mm |
| Inside diameter | 4 mm |
| Min. bending radius | 13 mm |
| Type code | PAN-V0 |
| Temperature-dependent operating pressure | -0.95 bar ... 12 bar |
| Operating medium | Mineral oilCompressed air as per ISO 8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Material fire test | UL94 V-0 (casing) |
| Ambient temperature | -30 °C ... 90 °C |
| Product weight by length | 0.049 kg/m |
| Pneumatic connection | For plug connection outside diameter 6 mm |
| Color | Red |
| Shore hardness | D 57 +/-3A 72 +/-4 |
| Note on materials | RoHS-compliant |
| Material of pneumatic tubing | PA12-PPVC-P |
