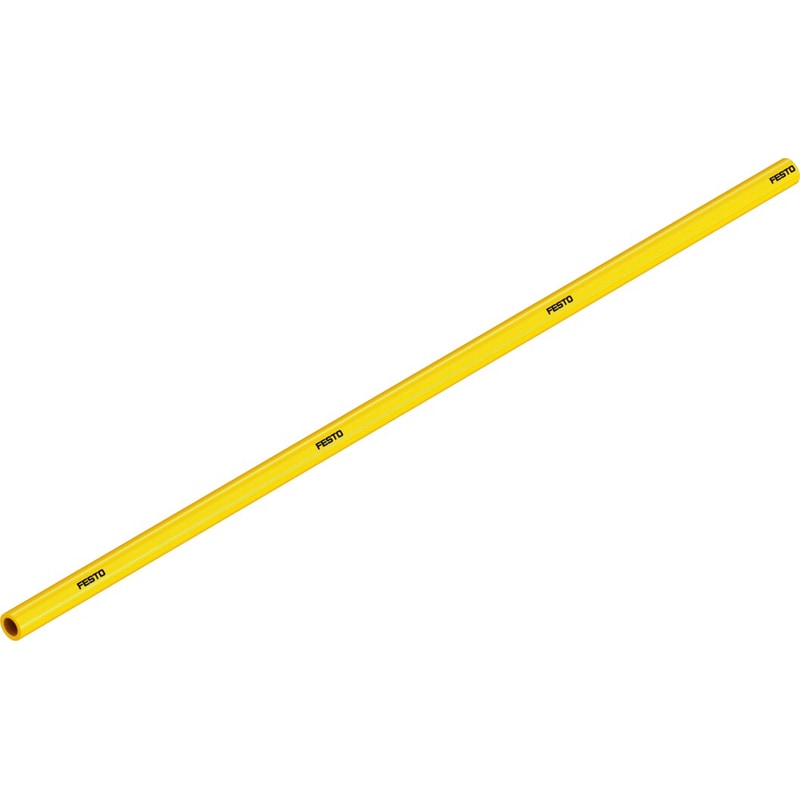

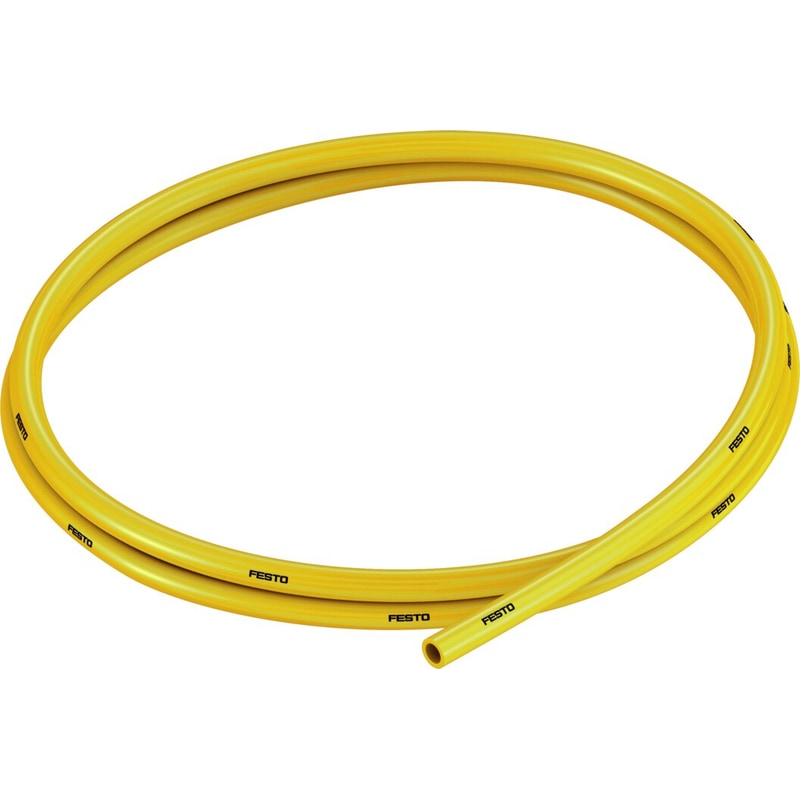

Plastic tubing
PUN-V0-6X1-GE
525458
GTIN 4052568046149
Vendor Festo
- Outside diameter
- 6 mm
- Inside diameter
- 4 mm
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -35 °C - 60 °C
Regular price
$8.29
Unit price
PUN-V0-6X1-GE Plastic tubing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PUN-V0-6X1-GE
Regular price
$8.29
Unit price
PUN-V0-6X1-GE Plastic tubing is backordered and will ship as soon as it is back in stock.
| Pneumatic tubing test conditions | Suitability for energy chains: >5 million cycles as per FN 942021 |
|---|---|
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Outside diameter | 6 mm |
| Bending radius relevant for flow rate | 26.5 mm |
| Inside diameter | 4 mm |
| Min. bending radius | 12 mm |
| Type code | PUN-V0 |
| Temperature-dependent operating pressure | -0.95 bar ... 10 bar |
| Operating medium | Water as per manufacturer's declaration at www.festo.comCompressed air as per ISO 8573-1:2010 [7:-:-] |
| Material fire test | UL94 V-2 (0.75mm)UL94 V-0 (3mm) |
| Ambient temperature | -35 °C ... 60 °C |
| Certification | German Technical Control Board (TÃœV) |
| Product weight by length | 0.02 kg/m |
| Pneumatic connection | For barbed fitting, inside diameter 4 mmFor barbed fitting, inside diameter 4 mm, with union nutFor plug connection outside diameter 6 mm |
| Color | Yellow |
| Information on color | Deviates from the standard color due to flame protection |
| Shore hardness | D 54 +/-3 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Material of pneumatic tubing | TPE-U(PU) |
