Air solenoid valve
MHA4-M1H-3/2O-4-K
525196
GTIN 4052568161583
Vendor Festo
- Valve function
- 3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 400 l/min
- Operating pressure
- -0.9 bar - 8 bar
Regular price
$155.56
Unit price
MHA4-M1H-3/2O-4-K is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MHA4-M1H-3/2O-4-K
Regular price
$155.56
Unit price
MHA4-M1H-3/2O-4-K is backordered and will ship as soon as it is back in stock.

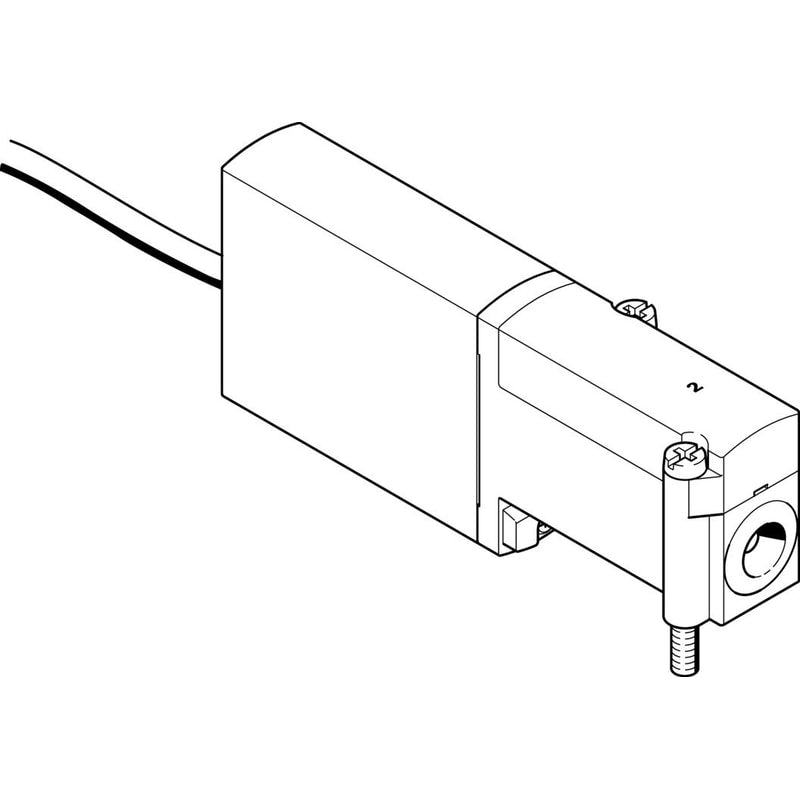

solenoid valve MHA4-M1H-3/2O-4-K with cable Valve function=3/2 open, monostable, Type of actuation=electrical, Width=18 mm, Standard nominal flow rate=400 l/min, Operating pressure=-0,9 - 8 bar
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 18 mm |
| Standard nominal flow rate | 400 l/min |
| Operating pressure | '-0.9 ... 8 bar |
| Design structure | Pressure-relieved poppet valve |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 4 mm |
| Grid dimension | 24 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
