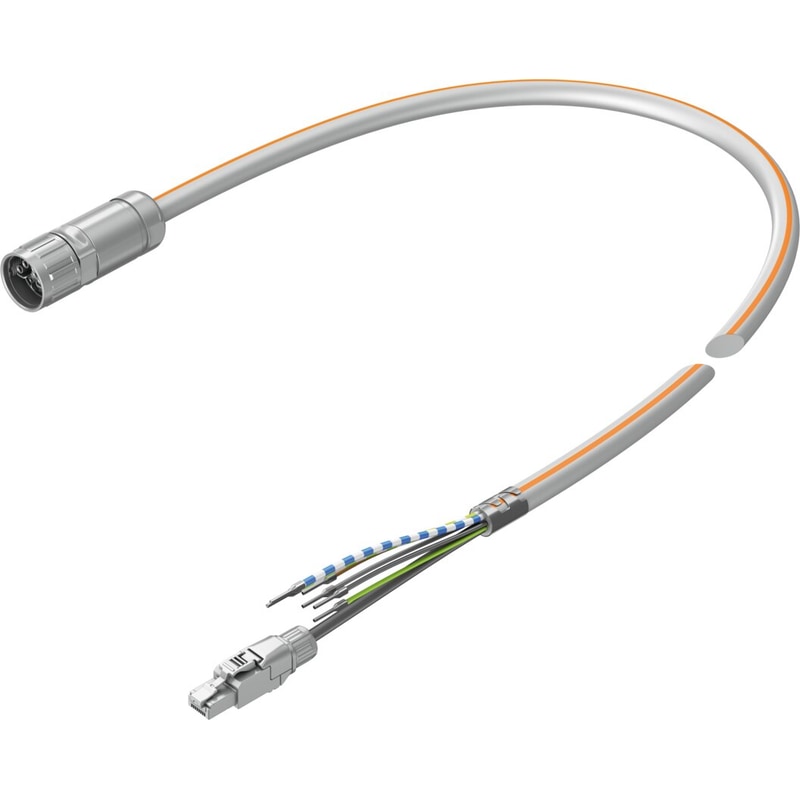

Motor cable
NEBM-M23G15-EH-2.5-Q10N-R3LEG14
5251388
GTIN 4052568461256
Vendor Festo
- Electrical connection 1, connection type
- Hybrid socket
- Electrical connection 1, connection technology
- M23x1
- Electrical connection 2, connection type
- Plugs and cables
- Electrical connection 2, connection technology
- RJ45 and open end
- Cable length
- 2.5 m
Regular price
$259.75
Unit price
NEBM-M23G15-EH-2.5-Q10N-R3LEG14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-M23G15-EH-2.5-Q10N-R3LEG14
Regular price
$259.75
Unit price
NEBM-M23G15-EH-2.5-Q10N-R3LEG14 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Based on norm | EN 61984 |
| Cable designation | Without label holder |
| Product weight | 1125 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Hybrid socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M23x1 |
| Electrical connection 1, number of pins/wires | 15 |
| Electrical connection 1, occupied pins/wires | 12 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00995912 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Plugs and cables |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | RJ45 and open end |
| Electrical connection 2, number of pins/wires | 14 |
| Electrical connection 2, occupied pins/wires | 12 |
| DC operating voltage range | 0 V ... 850 V |
| Operating voltage range AC | 0 V ... 630 V |
| Current rating at 40°C | 23.7 A |
| Surge resistance | 6 kV |
| Cable length | 2.5 m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 55.6 mm |
| Bending radius, flexible cable installation | ≥ 97.3 mm |
| Cable diameter | 13.9 mm |
| Cable diameter tolerance | ± 0.3 mm |
| Cable design | 4 x 2.5 mm² + 1 x (2 x 1.0 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²)Shielded |
| Nominal conductor cross section | 2.5 mm²1 mm²0.15 mm²0.24 mm² |
| Wire ends | Cable end sleeve |
| Degree of protection | IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 °C ... 90 °C |
| Ambient temperature with flexible cable installation | -25 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Note on materials | RoHS-compliantHalogen-free |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Insulating sheath material | PP |
