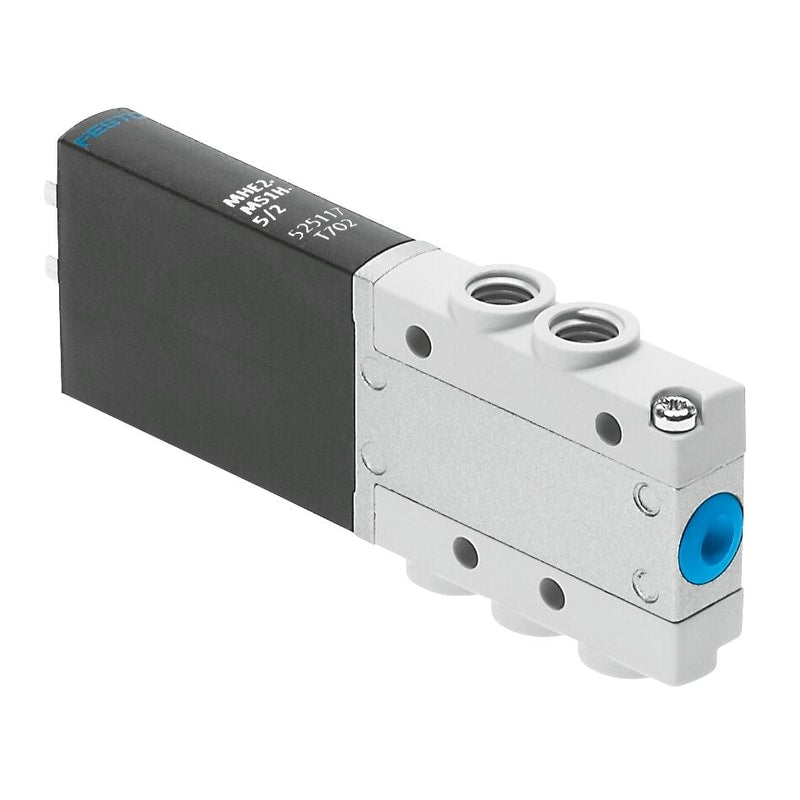

Air solenoid valve
MHE2-MS1H-5/2-M7
525113
GTIN 4052568161163
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 90 l/min
- Pneumatic connection 1
- M7
- Operating pressure
- -0.9 bar - 8 bar
Regular price
$205.46
Unit price
MHE2-MS1H-5/2-M7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MHE2-MS1H-5/2-M7
Regular price
$205.46
Unit price
MHE2-MS1H-5/2-M7 is backordered and will ship as soon as it is back in stock.
solenoid valve MHE2-MS1H-5/2-M7 individual valve, fast switching. Valve function=5/2 monostable, Type of actuation=electrical, Width=10 mm, Standard nominal flow rate=90 l/min, Operating pressure=-0,9 - 8 bar
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Width | 10 mm |
| Standard nominal flow rate | 90 l/min |
| Operating pressure | '-0.9 ... 8 bar |
| Design structure | Pressure-relieved poppet valve |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | RCM Markc UL us - Recognized (OL) |
| Nominal size | 2 mm |
| Grid dimension | 14 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
