Controller

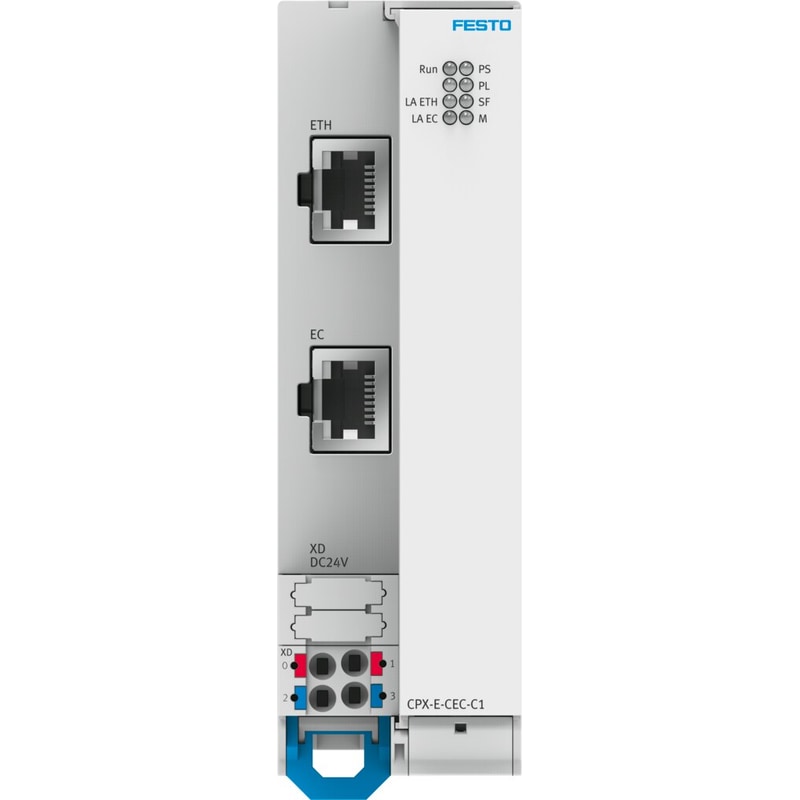

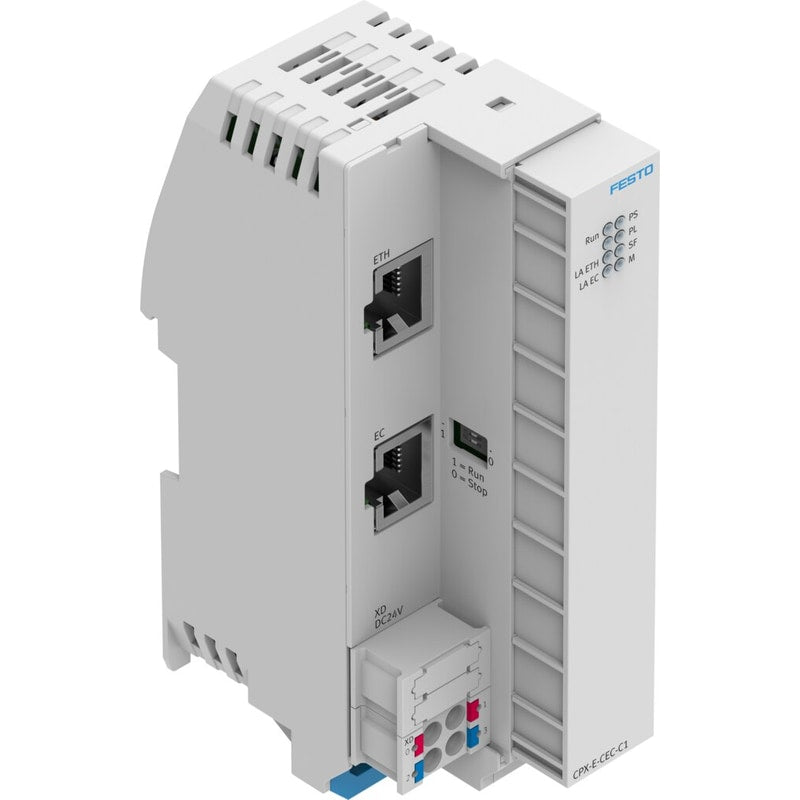

CPX-E-CEC-C1
5226780
GTIN 4052568421458
Vendor Festo
Regular price
$1,049.16
Unit price
CPX-E-CEC-C1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-CEC-C1
Regular price
$1,049.16
Unit price
CPX-E-CEC-C1 is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 42.2 mm x 125.8 mm x 76.5 mm |
|---|---|
| Power supply, type of connection | Terminal strip |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Ethernet interface, protocol | TCP/IPEasyIPModbus® TCP |
| Fieldbus interface, connection type | Socket |
| Note on ambient temperature | -5 - 60 °C for vertical installation |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 65 mA |
| Ethernet interface, connection technology | RJ45 |
| Fieldbus interface, connection pattern | 995789 |
| Power supply, connection pattern | 995847 |
| Fieldbus interface, function | Bus connection, forwarding |
| Ethernet interface, transmission rate | 10 Mbit/s100 Mbit/s |
| Power supply, function | Electronics and sensors |
| Power supply, information on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Ethernet interface, function | Diagnostics |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| System parameter | Diagnostic memorySystem startFail-safe response |
| Ethernet interface, connection pattern | 995789 |
| Fieldbus interface, connection technology | RJ45 |
| Power supply, connection technology | Spring-loaded terminal |
| Fieldbus interface, protocol | EtherCAT Master |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Module parameters | Analog module process value representationChannel alarm bundlingChannel alarms for undervoltageUndervoltage diagnostics |
| Diagnostics via LED | EtherCAT network statusPower supply for electronics/sensorsForce modeRunLoad power supplyNetwork status, engineering port 1System fault |
| Ethernet interface, number of poles/wires | 8 |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Power supply, number of pins/wires | 4 |
| Fieldbus interface, number of poles/wires | 8 |
| Max. number of modules | 10 |
| Power supply, conductor diameter | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| CPU data | 512 MB RAMDual core 666 MHz |
| Configuration support | CODESYS V3 |
| Additional functions | CODESYS V3 |
| Control elements | DIL switch for RUN/STOP |
| Processing time | Approx. 200 µs/1 k instruction |
| IP address setting | DHCPVia CODESYS |
| Function blocks | Copying of CPX-E diagnostic traceand othersRead CPX-E module diagnosticsCPX-E diagnostic status |
| Max. power supply | 0.333333333333333 |
| Flag | CODESYS variable concept120 kB remanent data |
| Power failure buffering | 20 ms |
| Programming software | CODESYS provided by Festo |
| Program memory | 12 MB user program |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| Product weight | 145 g |
| Max. address capacity outputs | 64 byte |
| Max. address capacity inputs | 64 byte |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Fieldbus interface, type | Ethernet |
| Type of mounting | With H-rail |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | PA |
