Encoder cable

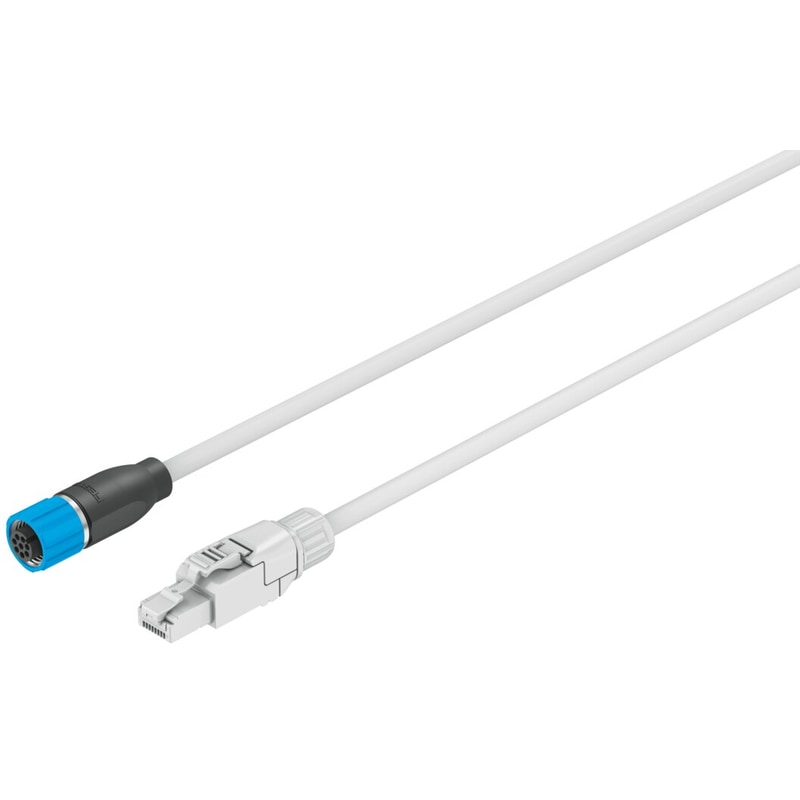

NEBM-M12G8-E-5-N-R3G8
5212313
GTIN 4052568420475
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- RJ45
- Cable length
- 5 m
Regular price
$208.33
Unit price
NEBM-M12G8-E-5-N-R3G8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-M12G8-E-5-N-R3G8
Regular price
$208.33
Unit price
NEBM-M12G8-E-5-N-R3G8 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Cable designation | Without label holder |
| Product weight | 320 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection for input 1, connection pattern | 992265 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | RJ45 |
| Electrical connection 2, number of pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 8 |
| Electrical connection 2, connection pattern | 995653 |
| DC operating voltage range | 0 V ... 30 V |
| Nominal operating voltage DC | 24 V |
| Operating voltage range AC | 0 V ... 30 V |
| Nominal operating voltage AC | 24 V |
| Cable characteristic | Suitable for energy chains |
| Bending radius, flexible cable installation | ≥ 68 mm |
| Cable diameter | 6.8 mm |
| Cable design | 4 x 2 x 0.14 mm²Shielded |
| Nominal conductor cross section | 0.14 mm² |
| Degree of protection | IP65 |
| Note on degree of protection | IP30 for Sub-D plugIn mounted state |
| Ambient temperature | -40 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
